Overview Summary

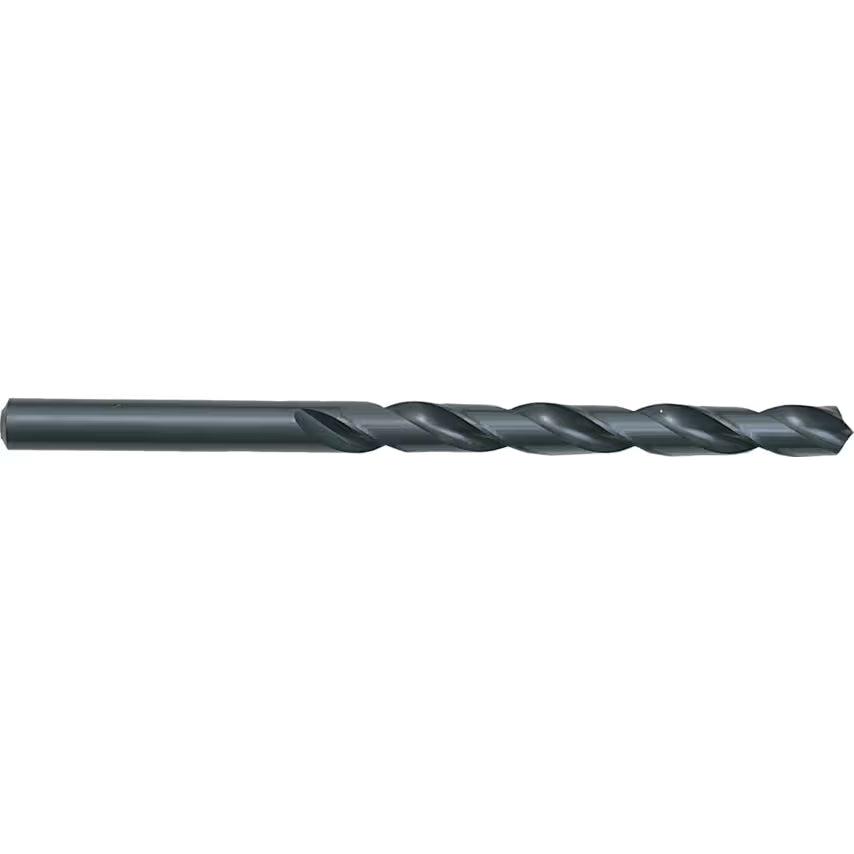

The SHERWOOD SHR0251484V 5.60mm HSS Long Series Drill Bit is engineered for precise drilling in applications that require extended reach. Manufactured from premium High Speed Steel (HSS), this drill bit offers excellent durability, heat resistance, and consistent cutting performance.
Its long series design allows for deeper drilling and improved access in confined or hard-to-reach areas while maintaining accuracy and stability. Ideal for professional metalworking, fabrication, and engineering environments, this drill bit ensures reliable performance when drilling steel and other engineering materials.
Key Features
-
High Speed Steel (HSS) Construction – Strong, durable, and resistant to heat
-
Long Series Design – Perfect for deep-hole and extended reach drilling tasks
-
Precision Ground Tip – Improves drilling accuracy and smooth cutting
-
5.60mm Diameter – Provides consistent and accurate hole sizing
-
Professional Quality Tool – Suitable for workshops, fabrication, and industrial use
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
5.6 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140171930 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
91 |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
139mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 × SHERWOOD SHR0251484V 5.60mm HSS Long Series Drill Bit
Warranty Term
Covered under SHERWOOD quality assurance against manufacturing defects. Warranty excludes normal wear, misuse, or improper application.
Why SHERWOOD
SHERWOOD is trusted by professionals for delivering precision-engineered tools with reliable durability and performance. Built for demanding workshop and industrial use, SHERWOOD drill bits provide consistent drilling accuracy and long-lasting service life.
