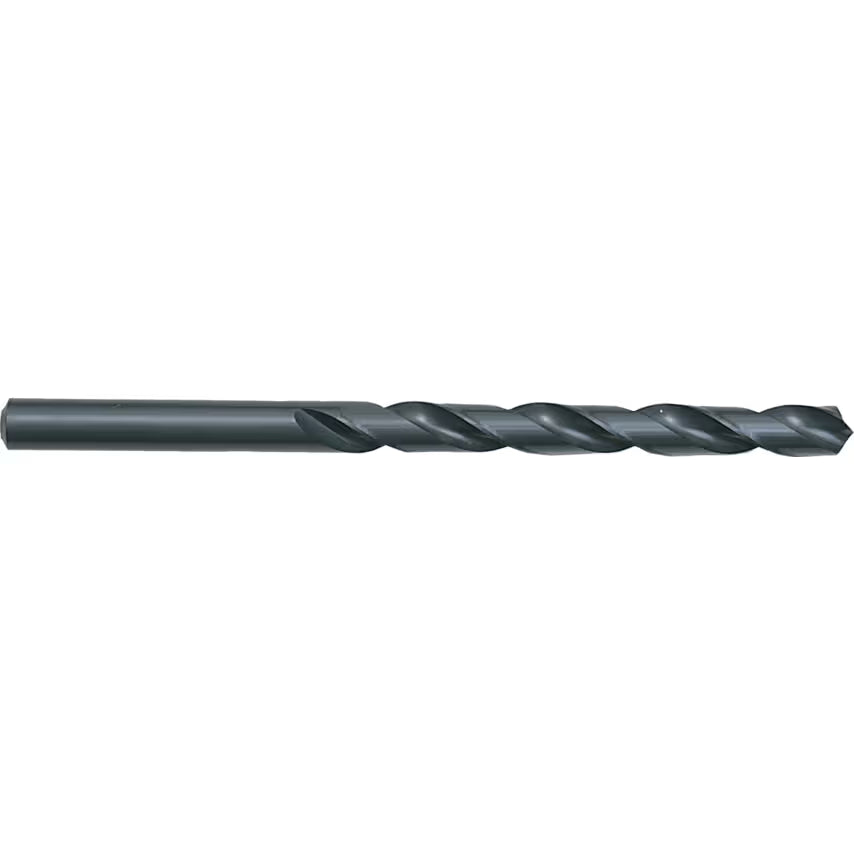

SHERWOOD 5.80mm HSS Long Series Drill Bit SHR0251487Y Precision
Couldn't load pickup availability
Overview Summary
The SHERWOOD SHR0251487Y 5.80mm HSS Long Series Drill Bit is designed for accurate drilling applications that require extended reach. Manufactured from premium High Speed Steel (HSS), this drill bit delivers excellent strength, heat resistance, and durability for demanding drilling tasks.
Its long series design allows users to drill deeper holes and reach confined areas while maintaining stability and precision. Ideal for professional metalworking, fabrication, and engineering environments, this drill bit provides consistent performance when working with steel and other engineering materials.
Key Features
-
High Speed Steel (HSS) Construction – Durable, strong, and heat resistant
-
Long Series Drill Design – Perfect for deep-hole and extended reach drilling
-
Precision Ground Cutting Tip – Ensures smooth and accurate drilling
-
5.80mm Diameter – Delivers consistent and precise hole sizing
-
Professional Grade Tool – Suitable for workshops, fabrication, and industrial use
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
5.8 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140171954 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
91 |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
139mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 × SHERWOOD SHR0251487Y 5.80mm HSS Long Series Drill Bit
Warranty Term
Covered under SHERWOOD quality assurance against manufacturing defects. Warranty excludes normal wear, misuse, or improper application.
Why SHERWOOD
SHERWOOD tools are trusted by professionals for their precision engineering, durability, and reliable performance. Built for demanding workshop and industrial environments, SHERWOOD drill bits ensure consistent drilling accuracy and long service life.
