Overview Summary

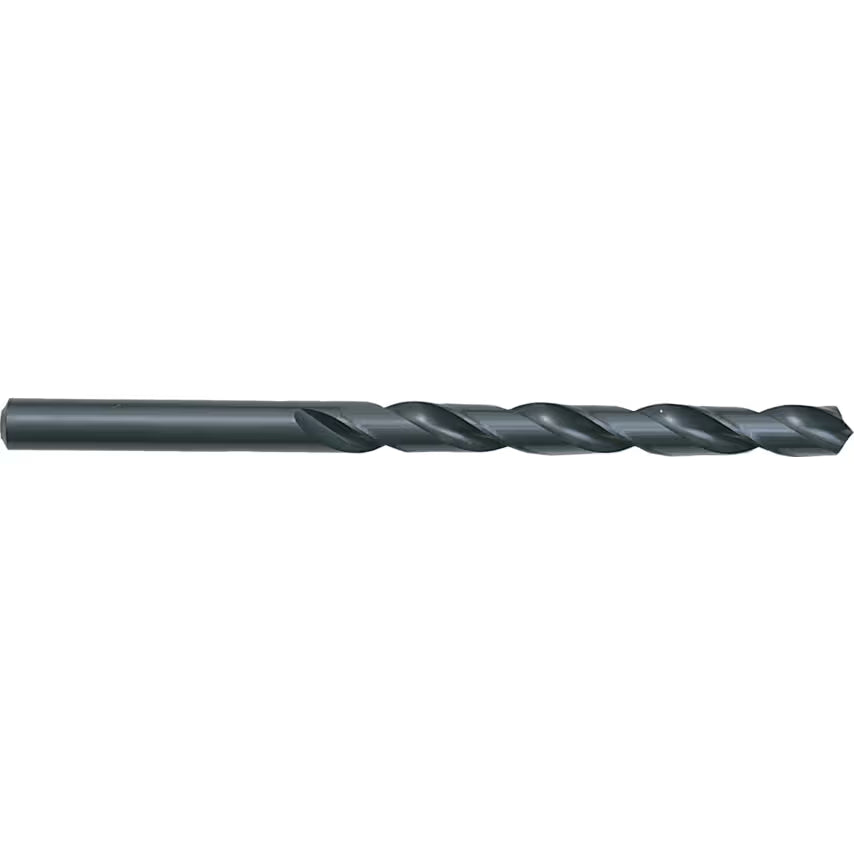

The SHERWOOD SHR0251494F 6.40mm HSS Long Series Drill Bit is designed for precision drilling applications requiring extended reach. Constructed from premium High Speed Steel (HSS), this drill bit offers excellent durability, heat resistance, and consistent cutting performance.
Its long series design allows drilling of deeper holes and access to confined or hard-to-reach areas while maintaining stability and accuracy. Perfect for professional metalworking, engineering, and fabrication tasks, this drill bit provides reliable performance on steel and other engineering materials.
Key Features
-
High Speed Steel (HSS) Construction – Durable, strong, and heat resistant
-
Long Series Design – Ideal for deep-hole and extended reach drilling
-
Precision Ground Tip – Ensures smooth cutting and accurate drilling
-
6.40mm Diameter – Provides consistent and precise hole sizing
-
Professional Quality Tool – Suitable for workshops, fabrication, and industrial use
Specifications
Attribute |
Value |
|---|---|
|
Brand |
Sherwood |
|
Coolant Delivery |
External |
|
Cutting Direction |
Right Hand |
|
Drill Diameter Metric |
6.4 |
|
Drill Diameter Tolerance |
h8 |
|
Drill Length Type |
Long Series |
|
EAN |
5036140172012 |
|
ECLASS Code |
21010101 |
|
Finish/Coating |
Steam Tempered |
|
Flute Construction |
Ground Flute |
|
Flute Length |
97 |
|
Flute Type |
Spiral |
|
Helix Angle |
30° |
|
Helix Type |
Normal Helix |
|
Individual or Set |
Individual |
|
Material |
High Speed Steel |
|
Number of Flutes |
2 |
|
Number of Pieces |
1 |
|
Overall Length |
148mm |
|
Point Angle |
118° |
|
Point Type |
Split Point |
|
Series |
L100 |
|
Shank Diameter Tolerance |
f11 |
|
Shank Type |
Straight |
|
Standards Met |
BS 328 DIN 340 ISO 494 |
|
System of Measurement |
Metric |
|
UNSPSC Code |
23241605 |
|
Web Thickness |
Standard |
Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
- Manufactured from HSS for improved toughness
- Black oxide coating for greater heat and wear resistance
- Ideal for general purpose drilling
Typical Applications
- Drilling
- Steels
- Grey cast iron
- Malleable cast iron
- Nickel brass
- Graphite
Standards
- Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
Package Content
-
1 × SHERWOOD SHR0251494F 6.40mm HSS Long Series Drill Bit
Warranty Term
Covered under SHERWOOD quality assurance against manufacturing defects. Warranty excludes normal wear, misuse, or improper handling.
Why SHERWOOD
SHERWOOD tools are trusted by professionals for their precision engineering, durability, and consistent performance. Designed for demanding workshop and industrial use, SHERWOOD drill bits provide reliable drilling accuracy and long-lasting service life.
