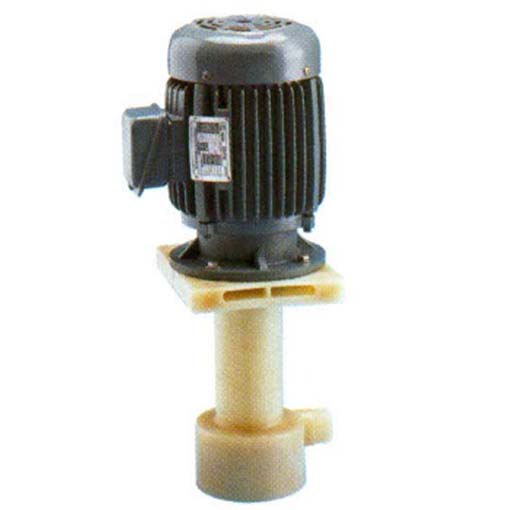

SHOWFOU DRY-FREE VERTICAL SEALLESS, 3HP, HEAD 16M, 35KG, PE-332
Couldn't load pickup availability
Got questions?
Feel free to WhatsApp us
Product Brochure
Click Here: Brochure in PDF
Product Datasheet / User Manual
Click Here: Datasheet in PDF
Material
Showfou provide Fiber Reinforced Polypropylene (FRPP) and PVDF pump body to meet custormer's requirement. Pumps with Unique Sealless Structure New Design and Adopting Lip Seal Feature to Give Pump Dry Running Ability.
Applications
- Transferring and circulating for plating solvents of filter.
- Heat exchanger circulation.
- Press and reaction tank transfer.
- Reaction mixing tank circulation.
- Nickel plating liquid.
- Transfer for tank to tank.
- For etching spray pump.
- Out of tank use for Filter.
- High temperature and with particles chemical liquid can to be used limitedly, such as: chemical cuprem, patassium manganate, plating gold liquid and non-electrolytic-nickel plating solvents etc.
Specifications
| Power | 2200 W |
| Phase | Three Phase |
| Volt | 220-480 V |
| Bore Size (Inlet) | 2" (50mm) |
| Bore Size (Outlet) | 1-1/2" (40mm) |
| Maximum Head | 16.0 meters |
| Maximum Flow | 0.35 m³/min. |
| Weight | 35.0 kg |
| Dimensions (Ø x H) | 221mm x 610mm |
| Operating Temperature Range | 0°C - 90°C |
- Model: PE-332
- Shipping Weight: 35kg
- Manufactured by: SHOWFOU
.===========================================
