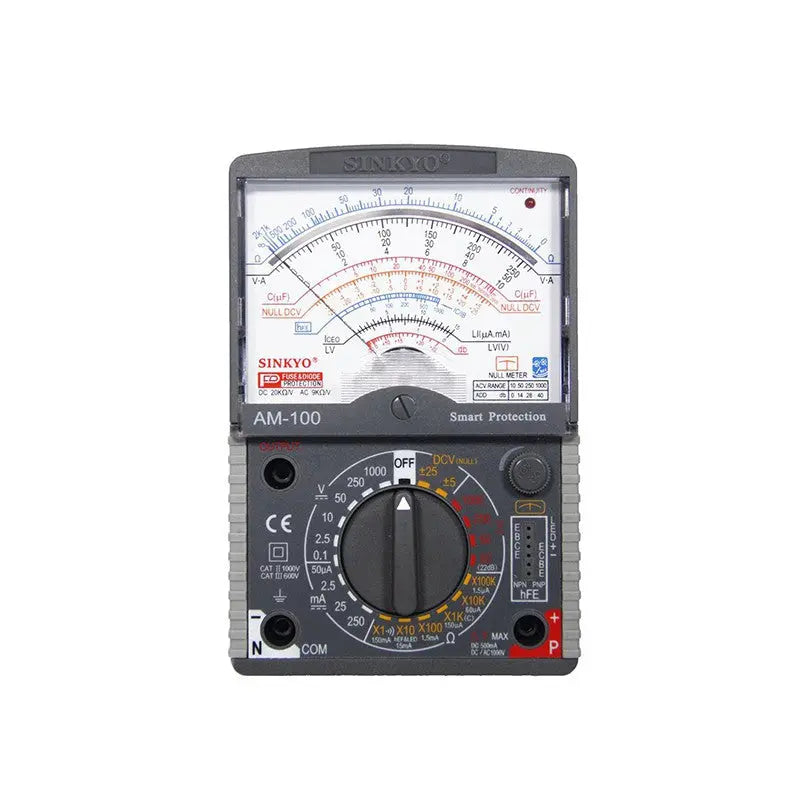

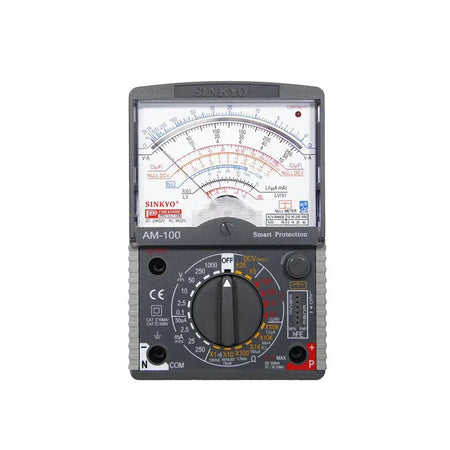

Sinkyo AM-100 Analogue Multimeter
Couldn't load pickup availability
Sinkyo AM-100 Analogue Multimeter — Gilded Test Leads | Null DCV | Battery-Saving Ohmmeter Design
The Sinkyo AM-100 Analogue Multimeter is a reliable, classic analog tester featuring smart protection circuitry and a unique battery-saving resistance measurement design. With gilded test leads for improved conductivity and corrosion resistance, plus a Null DCV function for differential voltage measurement, the AM-100 is well suited for electrical, electronics and general maintenance testing.
| Functions | Range | Accuracy |
Remarks |
| DC V |
0.1-2.5-10-50-250V -1,000V |
± 3% of FSD ± 4% of FSD |
Input Impendence 20KΩ/V Overload Protection: Max. 500V AC/DC BUT Range 0.1V: Max. 250V |
| Null DCV | ±-5V, ±25V | ± 5% FSD |
Input Impendence: 40KΩ/V Overload 1000V Max. |
| AC V | 10-50-250V-1000V |
± 4% of FSD Band width: 40~20K Hz NOTE#1 |
Input Impendence: 9KΩ/V Overload Protection: Max. 500Vrms AC/DC.BUT |
| DC A | 0.5-2.5-25-250mA | ± 3% of FSD |
Drop Voltage: 50 m V Overload protected by one Fuse 0.5A at mA range.
|
| Ω |
X1: 0.2~2KΩ Midscale at 20Ω X1: 0.2~20KΩ Midscale at 200Ω X1000: 20~200KΩ Midscale at 2000KΩ |
± 4% of ARC (Scale Length) |
Overload protected by the Oxide Varactor & Thermal Resettable Fuse. The Input Voltage limit: Min.50V, Max.250Vrms AC/DC. |
| Power Supply |
Internal Battery: AAA,R03P 1.5V 2pcs |
Features & Benefits
-
Smart Protection at Ω Range
Resistance measurement is protected by an oxide varactor and thermal resettable fuse — safeguarding the meter from accidental overload during ohmmeter use. -
Null DCV Function
Built-in Null DCV feature allows differential voltage measurement, useful for comparative and reference voltage testing applications. -

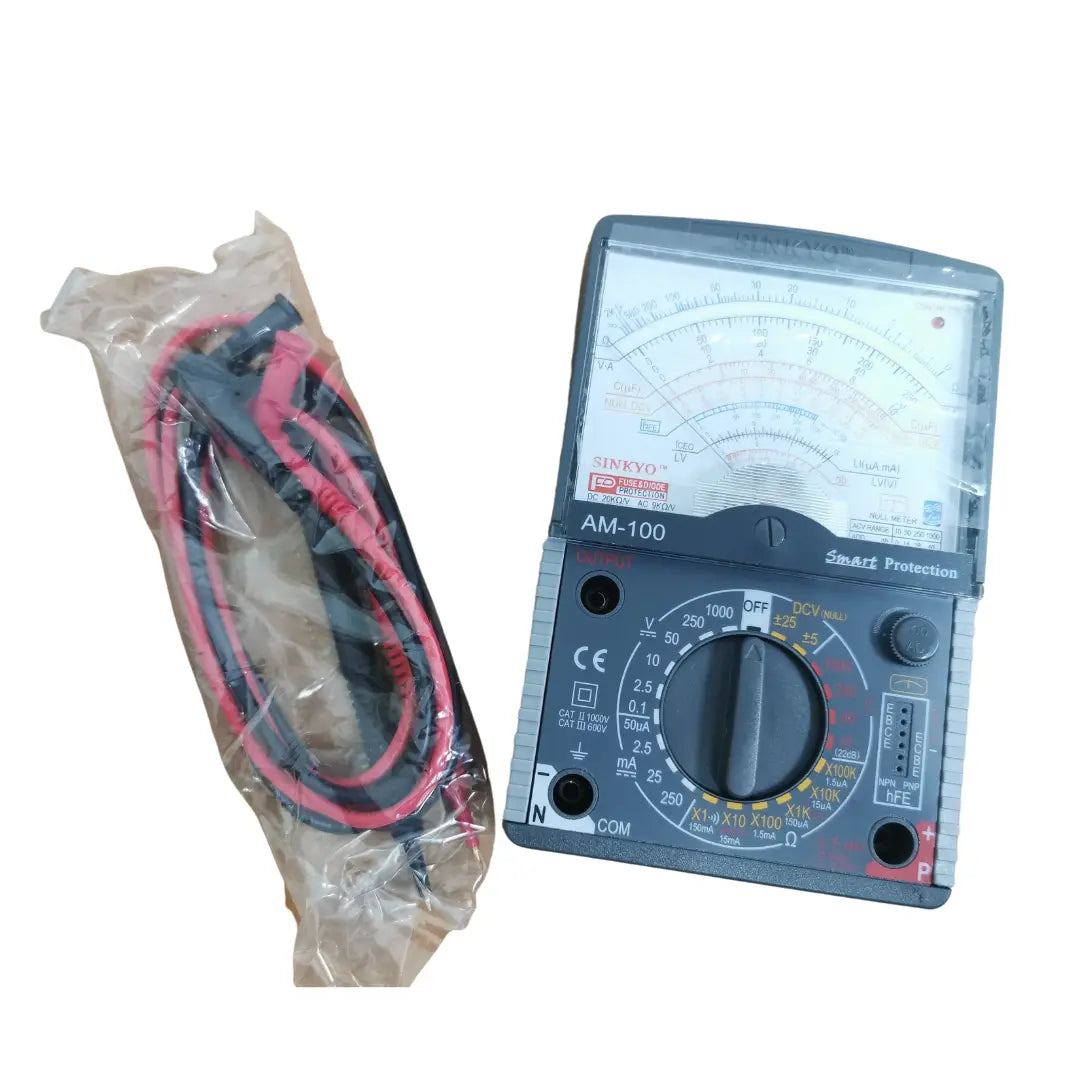

Gilded Test Leads
Gold-plated test leads provide improved conductivity, reduced contact resistance and better long-term corrosion resistance compared to standard leads. -
Battery-Saving Resistance Measurement
Special circuit design enables resistance testing up to 20/200MΩ using only 1.5V batteries — no 9V battery required, reducing running costs and battery waste. -
Wide Voltage & Current Coverage
Comprehensive DC voltage, AC voltage and DC current ranges cover most general electrical and electronics testing requirements. -
Overload Protection Across Functions
Fused and circuit-based overload protection on current and resistance ranges helps protect the meter from accidental damage during testing.
Applications
- General electrical installation and maintenance testing
- Electronics repair and circuit diagnostics
- Educational and training use for analog meter reading
- DIY home electrical troubleshooting
- Differential voltage comparison testing
Why Choose Sinkyo AM-100?
- Battery-saving design — no 9V battery required for resistance testing
- Gilded test leads for better conductivity and durability
- Built-in Null DCV for differential voltage measurement
- Smart overload protection on Ω, mA and voltage ranges
- Classic, reliable analog multimeter design
- Trusted Sinkyo instrument quality
