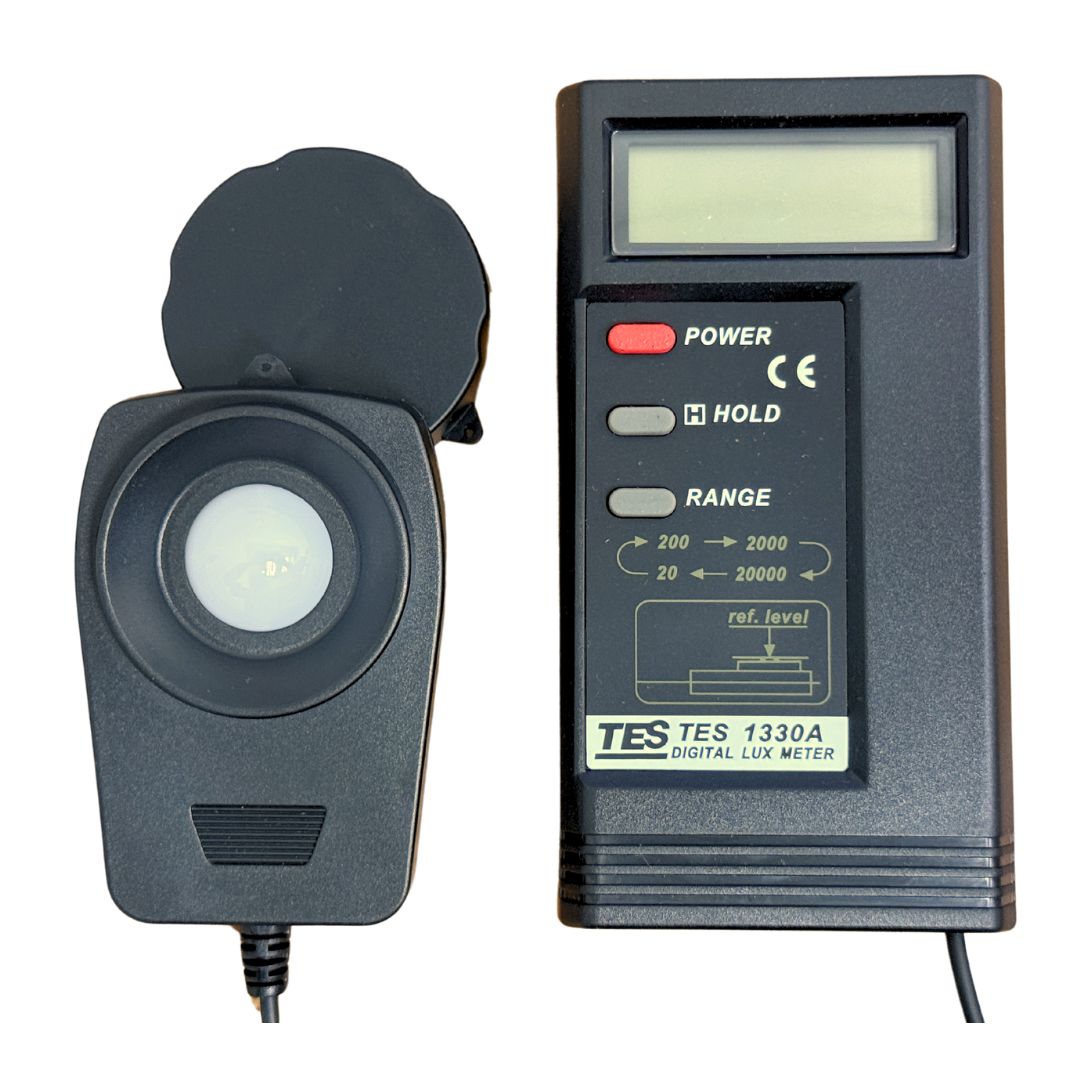

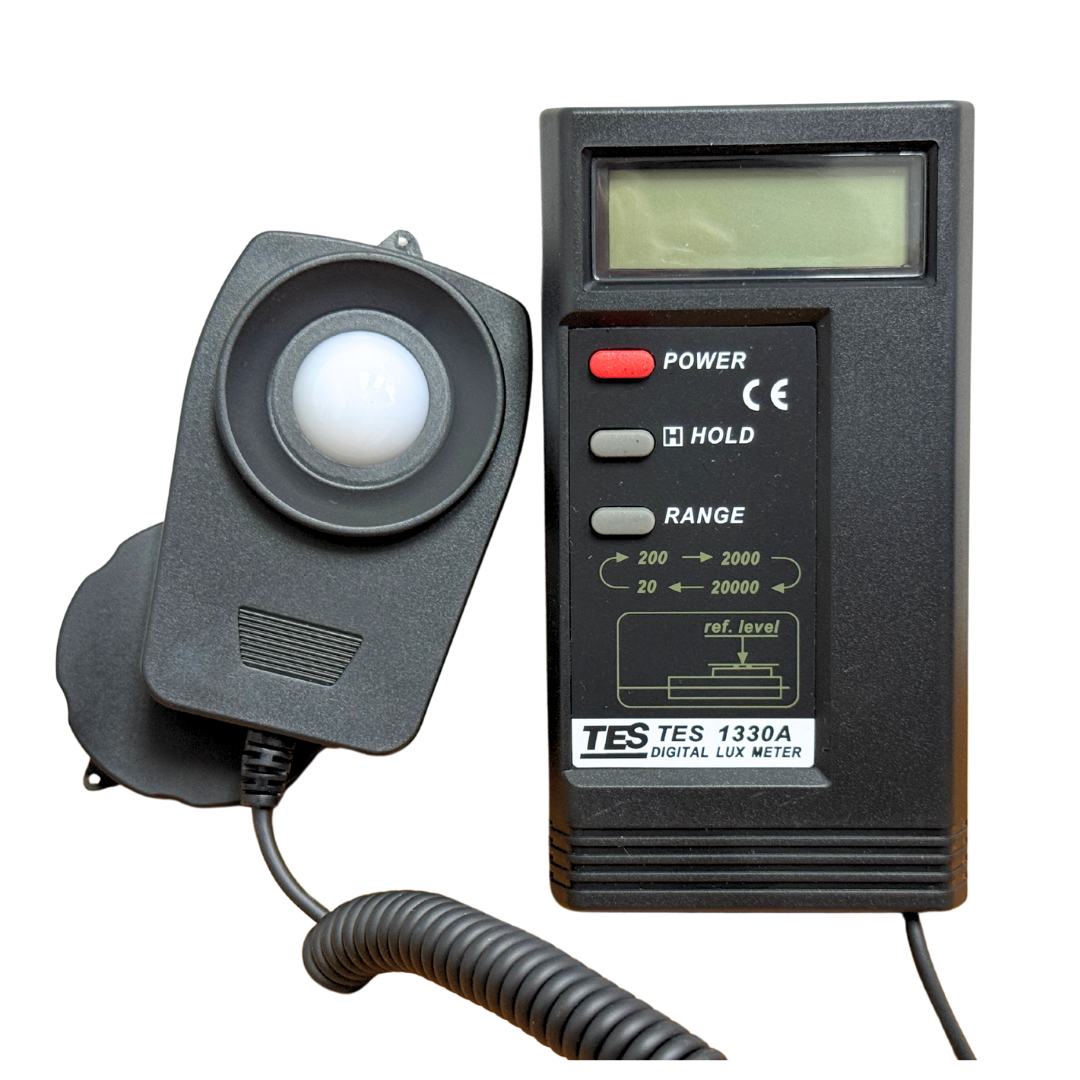

TES-Taiwan TES-1330A Light Meter

Model : TES-Taiwan TES-1330A Light Meter

Features:

• Accurate and instant response
• Data Hold function
• Spectral sensitivity close to CIE photopic curve
• Cosine Angular corrected

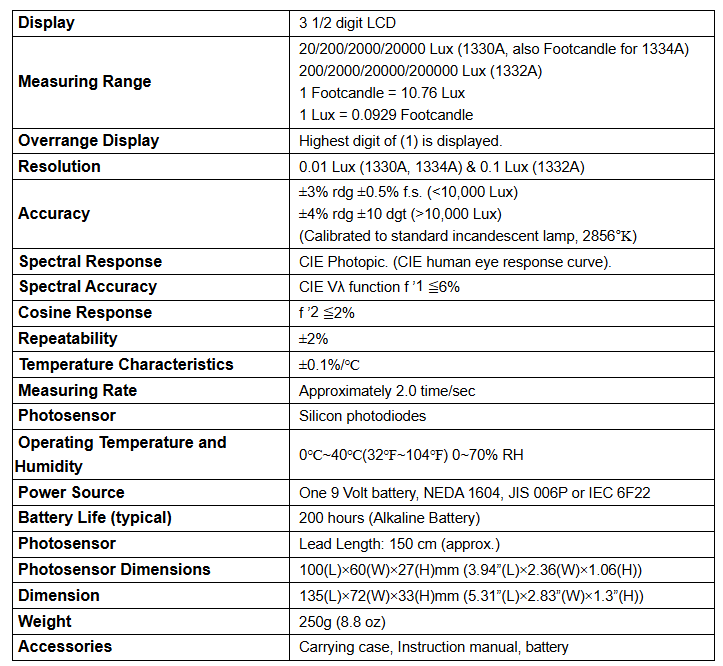

Display:

• 3 1/2 digit LCD

Measuring Range:

• 20/200/2000/20000 Lux (1330A, also Footcandle for 1334A)
• 200/2000/20000/200000 Lux (1332A)
• 1 Footcandle = 10.76 Lux
• 1 Lux = 0.0929 Footcandle

Overrange Display:

• Highest digit of (1) is displayed.

Resolution:

• 0.01 Lux (1330A, 1334A) & 0.1 Lux (1332A)

Accuracy:

• ±3% rdg ±0.5% f.s. (<10,000 Lux)
• ±4% rdg ±10 dgt (>10,000 Lux)
  (Calibrated to standard incandescent lamp, 2856°K)

Spectral Response:

• CIE Photopic (CIE human eye response curve).

Spectral Accuracy:

• CIE VA function f'1 ≤6%

Cosine Response:

• f'2 ≤2%

Repeatability:

• ±2%

Temperature Characteristics:

• ±0.1%/°C

Measuring Rate:

• Approximately 2.0 times/sec

Photosensor:

• Silicon photodiodes

Operating Temperature and Humidity:

• 0°C ~ 40°C (32°F ~ 104°F), 0 ~ 70% RH

Power Source:

• One 9 Volt battery (NEDA 1604, JIS 006P, or IEC 6F22)

Battery Life (Typical):

• 200 hours (Alkaline Battery)

Photosensor Lead Length:

• 150 cm (approx.)

Photosensor Dimensions:

• 100(L) × 60(W) × 27(H) mm (3.94" × 2.36" × 1.06")

Dimension:

• 135(L) × 72(W) × 33(H) mm (5.31" × 2.83" × 1.3")

Weight:

• 250g (8.8 oz)

Accessories:

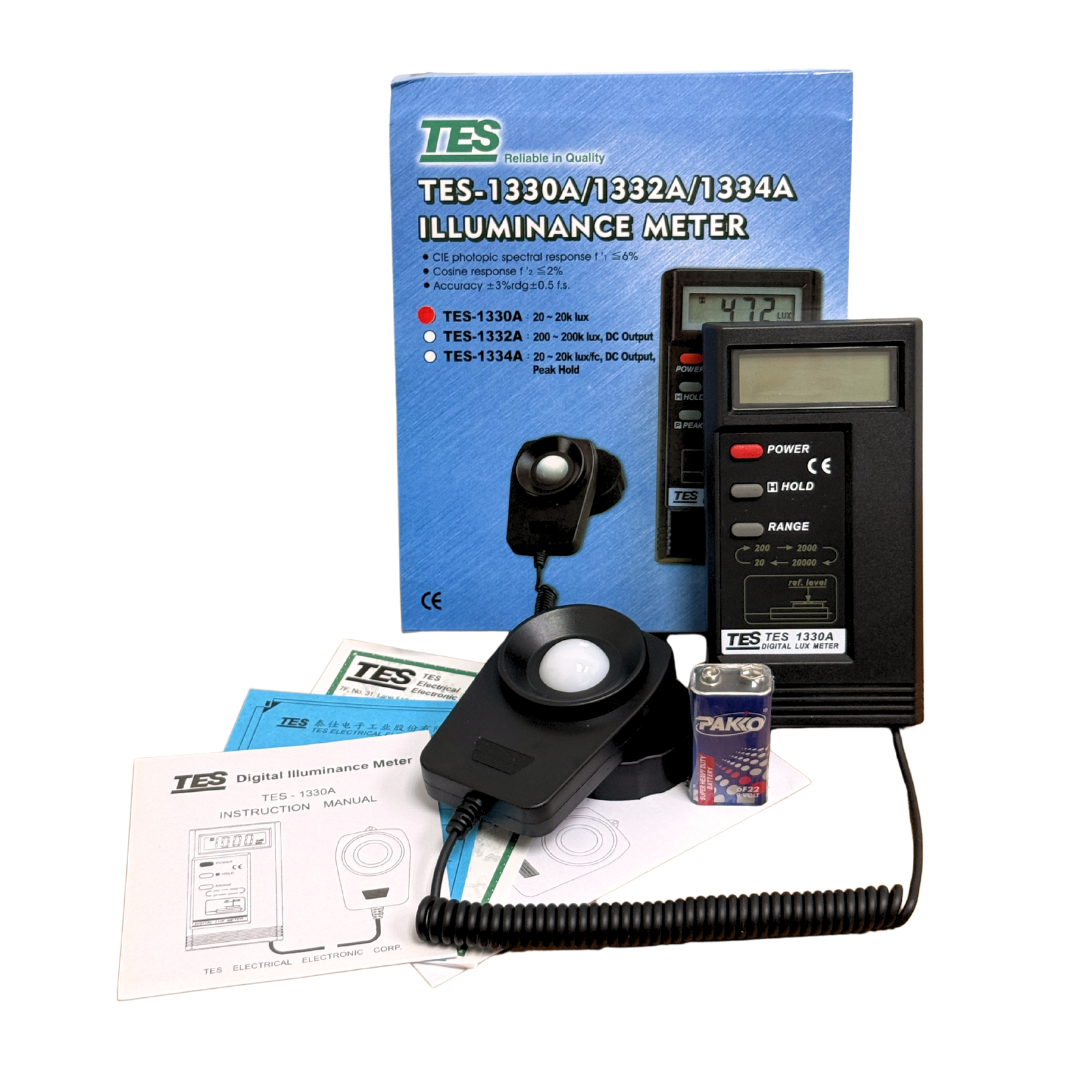

• Carrying case, Instruction manual, Battery

.===========================================
