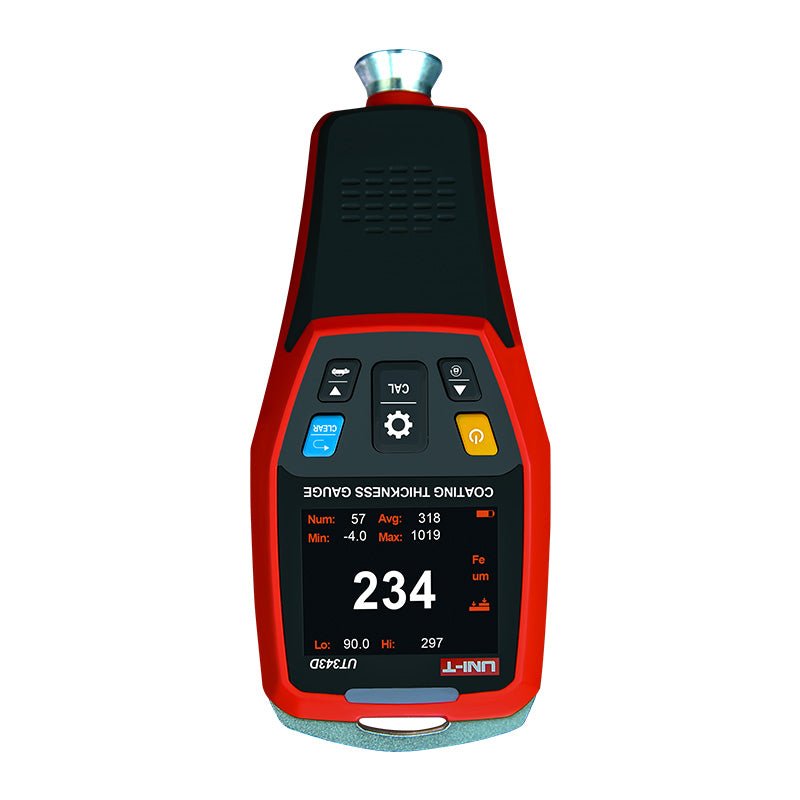

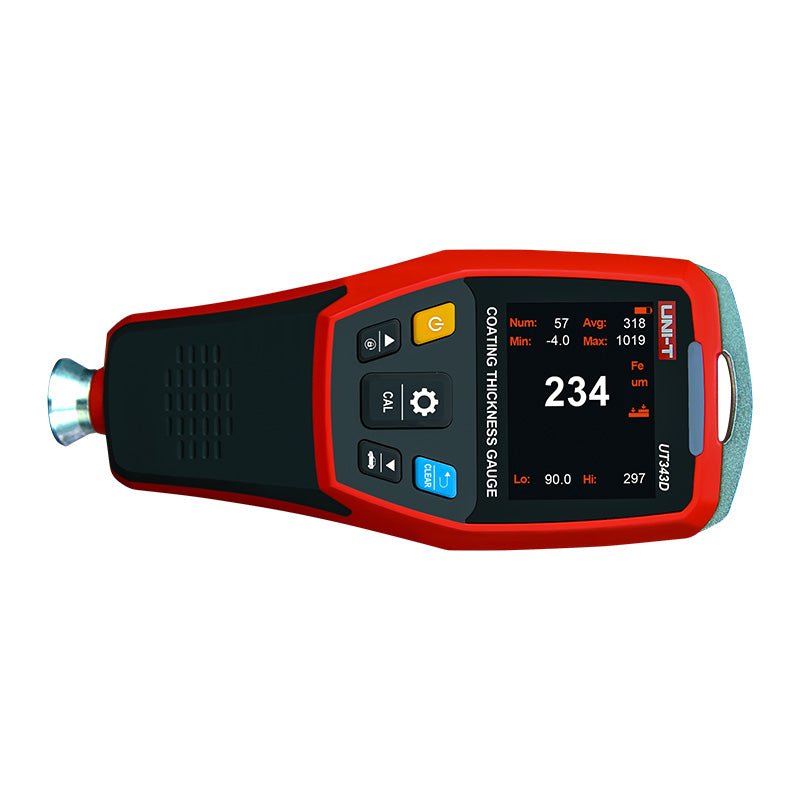

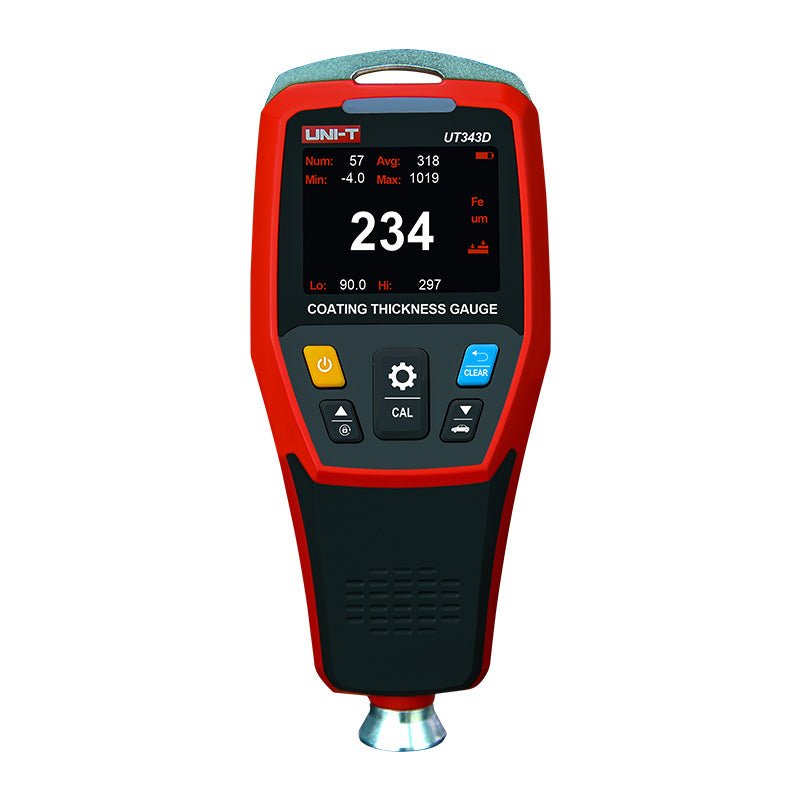

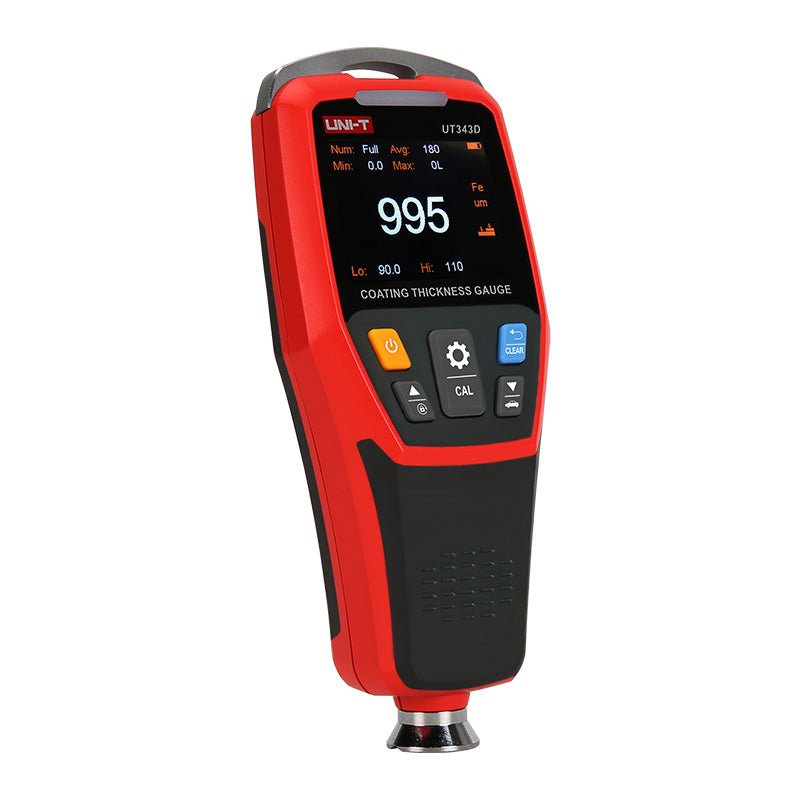

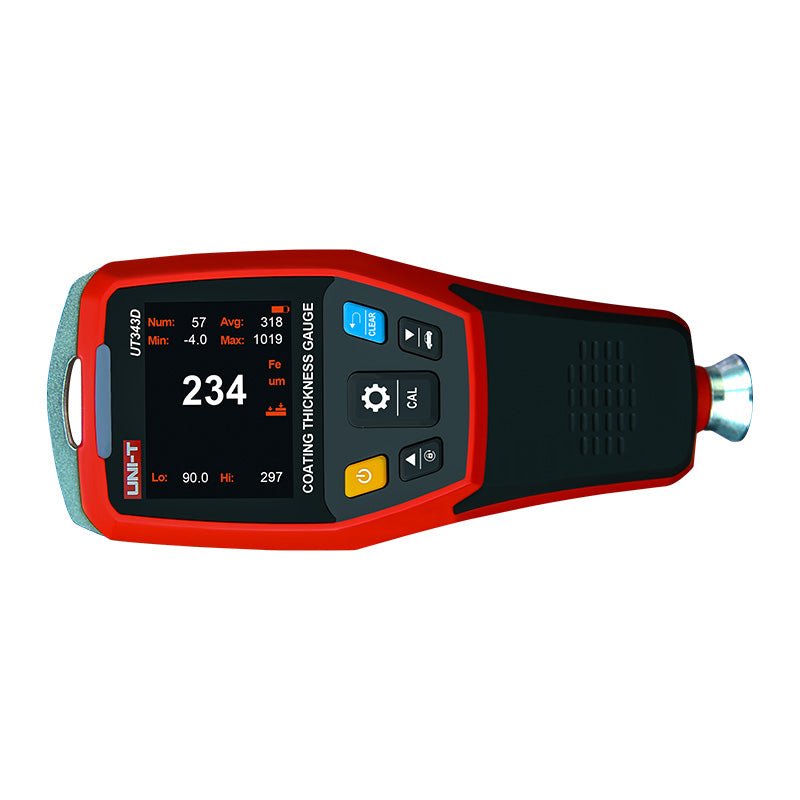

UNI-T UT343D Coating Thickness Gauge | 0–1250 µm Range

Product Description

The UNI-T UT343D Coating Thickness Gauge is a versatile, handheld device designed for precise measurement of coating thickness on both ferrous and non-ferrous metal substrates. Ideal for applications in automotive, manufacturing, and quality control, it ensures accurate assessments of paint, plating, and other coatings.

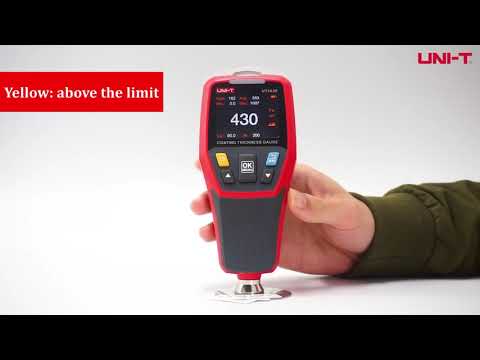

Featuring a unique quick-test mode, the UT343D allows users to set predefined thickness ranges, providing immediate feedback through a 3-color LED and audio alarm system. This functionality streamlines inspection processes, enabling rapid identification of coatings that fall outside acceptable parameters.

The device boasts a 2.0-inch TFT LCD with auto-rotation and adjustable brightness, ensuring clear visibility in various working conditions. With the capacity to store up to 500 measurement groups, data can be easily transferred to a PC via USB for comprehensive analysis using the included software.

Compact and lightweight, the UT343D is powered by two AA batteries, making it a convenient tool for fieldwork and on-site inspections.

Key Features

  • LCD brightness control
  • Auto rotatable screen
  • Unit conversion
  • Audio alarm
  • LED alarm
  • PC analysis software
  • USB communication
  • Quick test mode
  • Auto power off
  • Low battery indication

Specification

Attribute Details
Model UT343D
Measuring Range 0–1250 µm
Accuracy ±(3%H+1) µm
Resolution 0.1 µm (0–99.9 µm); 1 µm (100–1250 µm)
Measurement Methods Single / Continuous
Measurement Modes Max / Min / Average
Substrate Types Ferrous / Non-ferrous
Display 2.0-inch TFT LCD (320×240 pixels)
Data Storage 500 groups
Power Supply 2 × 1.5V AA batteries
Dimensions 153.5 × 64.5 × 41 mm
Weight 175 g
Standard Accessories Micro USB cable, standard piece, batteries, cloth bag
Certifications CE, UKCA
Warranty 12 months warranty



Applications of UT343D Coating Thickness Gauge

UT343D application 1
UT343D application 2
