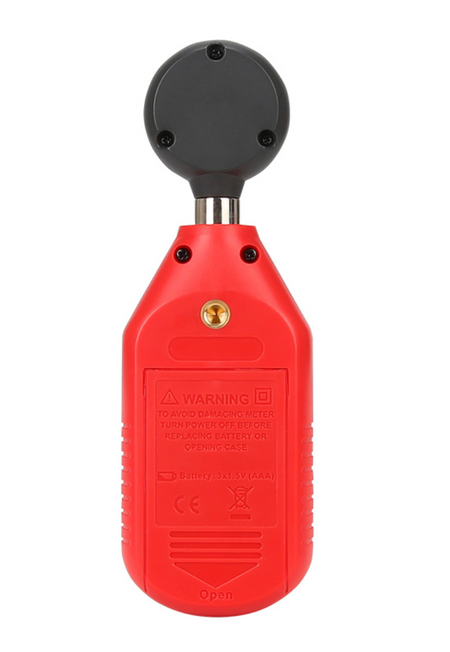

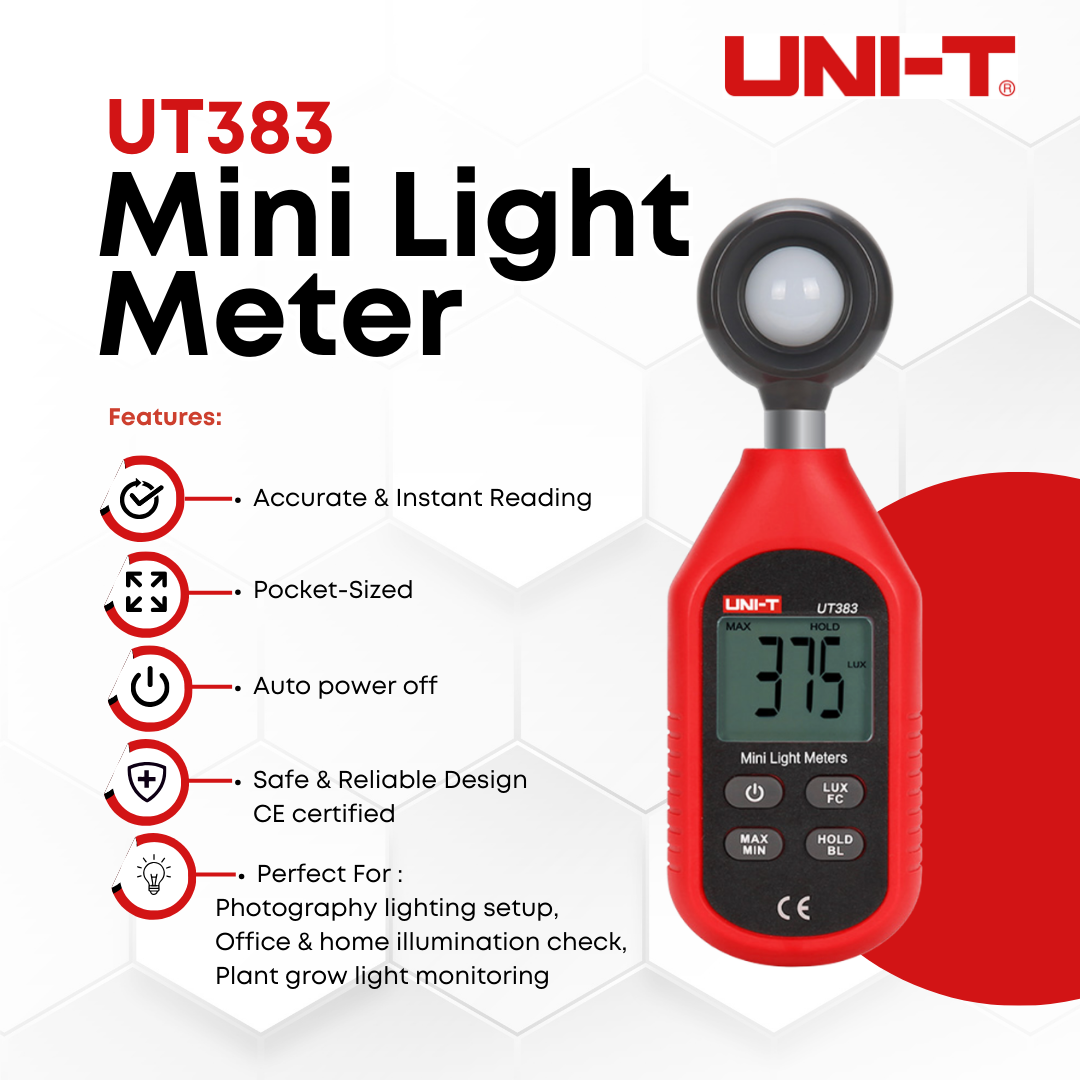

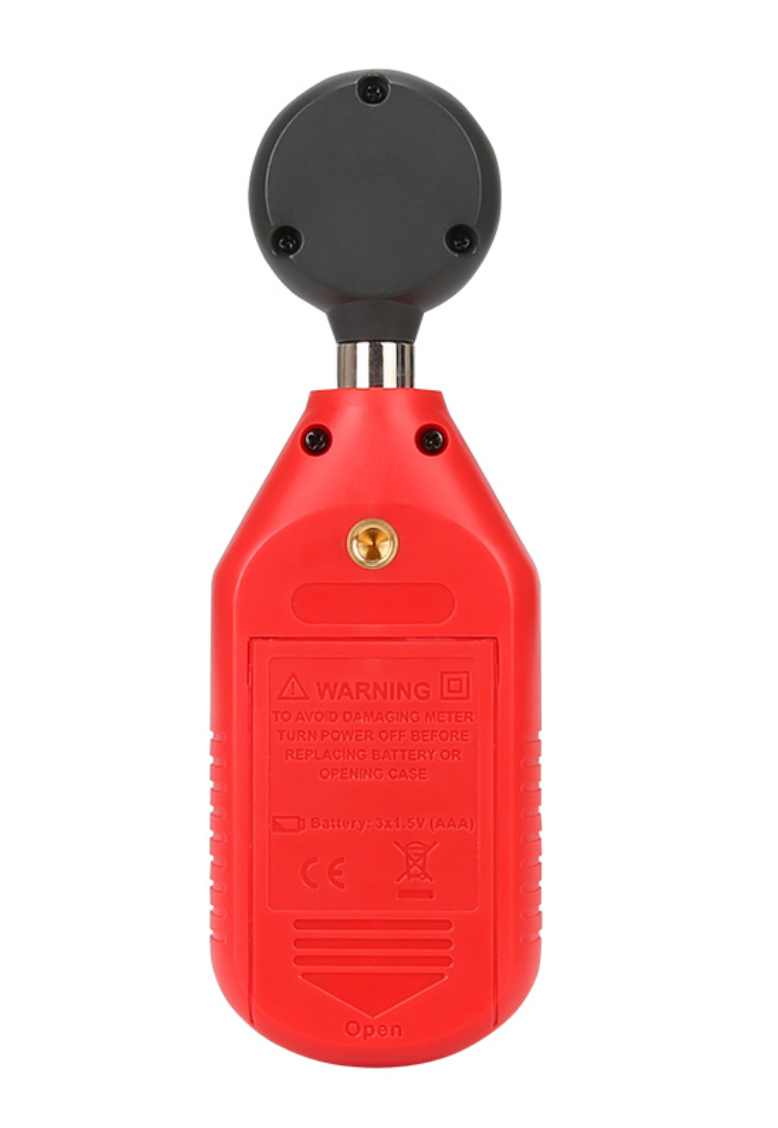

UNI-T Mini Light Meter 0–199,900 Lux | UT383
Couldn't load pickup availability
The UNI-T UT383 is a pocket-size digital light meter for quick illuminance checks. It measures 0 to 199,900 lux (0 to 18,500 fc) with a 0.5s sampling time, and adds Max/Min, data hold, a backlit LCD and auto power-off, making it a simple, low-cost way to check workplace, office and studio lighting.
Key Features & Benefits
- 0–199,900 lux / 0–18,500 fc – covers indoor lighting through to bright daylight
- Lux and foot-candle units
- Max/Min and data hold – capture peaks and freeze the reading
- Backlit LCD for dim areas
- 0.5s sampling time with overload (OL) and low battery indication
- Auto power-off to save battery
- Compact 118g body that fits in a shirt pocket

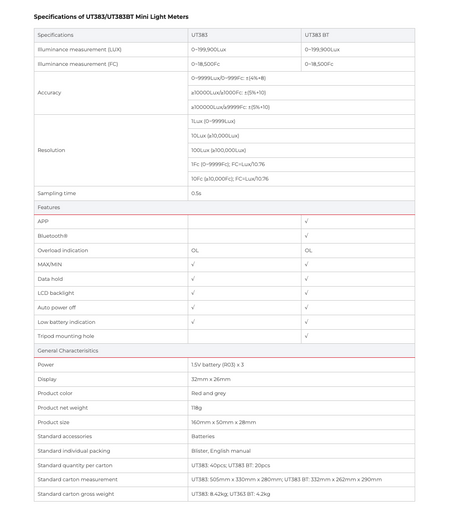

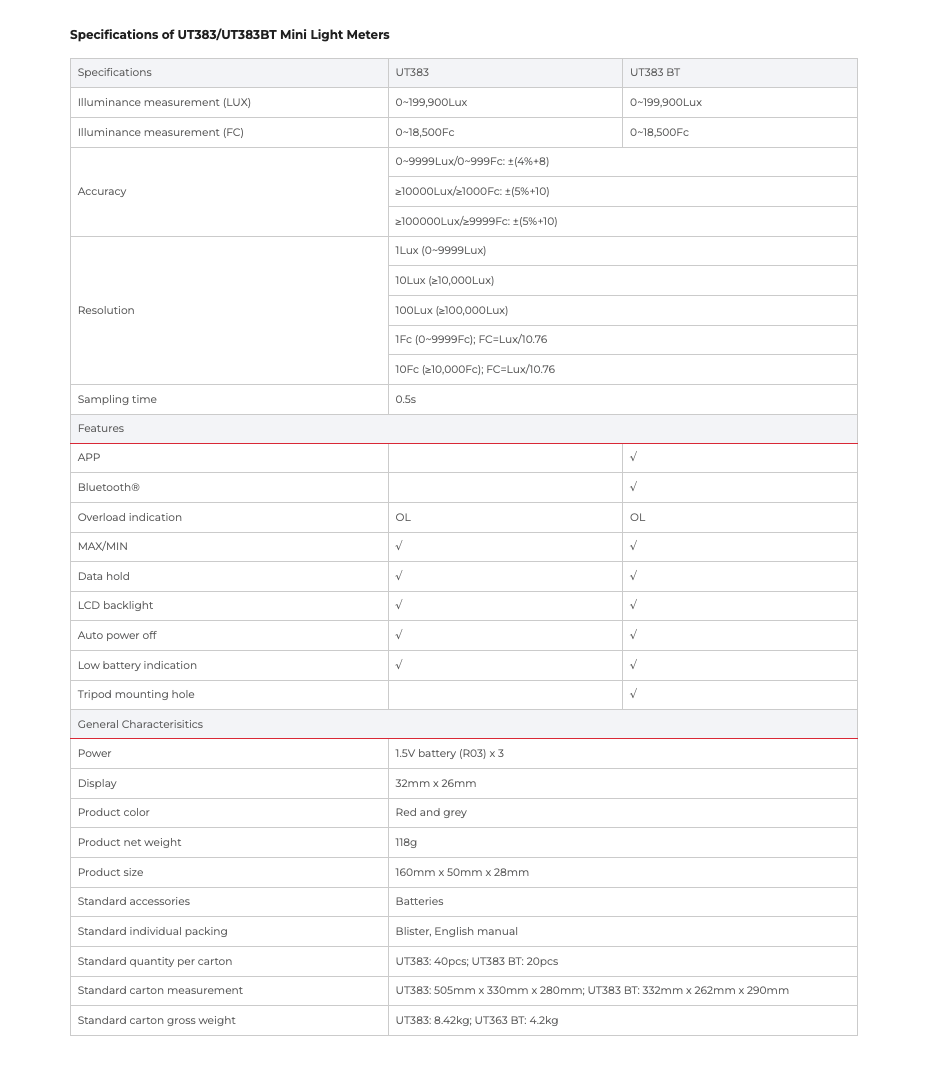

Technical Specifications
| Range | Resolution | Accuracy |
|---|---|---|
| 0–9,999 lx (0–999 fc) | 1 lx | ±(4% + 8) |
| 10,000 lx and above (1,000 fc and above) | 10 lx | ±(5% + 10) |
| 100,000 lx and above (to 199,900 lx) | 100 lx | ±(5% + 10) |
Foot-candle resolution: 1 fc (0–9,999 fc), 10 fc (10,000 fc and above). Fc = lux ÷ 10.76.
| Specification | Value |
|---|---|
| Sampling time | 0.5s |
| Display | LCD, 32 × 26mm, backlit |
| Power | 3 × 1.5V AAA (R03) batteries |
| Size | 160 × 50 × 28mm |
| Net weight | 118g |
| Colour | Red and grey |
Safety & Compliance
- Certifications: CE, UKCA
What's in the Box
- 1 × UNI-T UT383 mini light meter
- 3 × 1.5V AAA batteries
- English user manual
Applications
- Office, classroom and meeting room lighting checks
- Factory, workshop and warehouse illumination surveys
- Desk lamp and task lighting set-up
- Photography, studio and indoor farming lighting
UNI-T UT383 vs UT383S
| Specification | UNI-T UT383 (this model) | UNI-T UT383S |
|---|---|---|
| Illuminance range | 0–199,900 lx | 0–199,900 lx |
| Split probe | No | Yes |
| Display size | 32 × 26mm | 35 × 32mm |
| Size | 160 × 50 × 28mm | 110 × 53 × 26mm |
| Net weight | 118g | 300g |
| Lux/Fc, Max/Min, data hold, backlight | Yes | Yes |
| Best for | Pocket-size quick lighting checks | Shadow-free readings and hard-to-reach fixtures |
