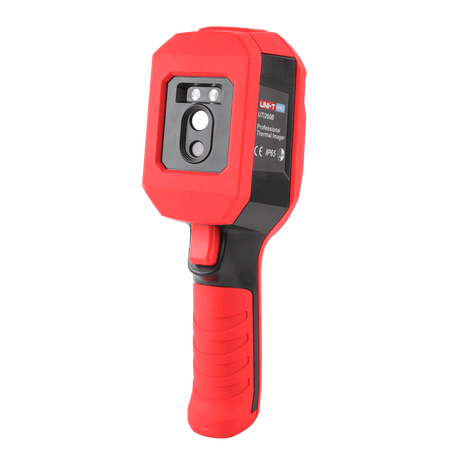

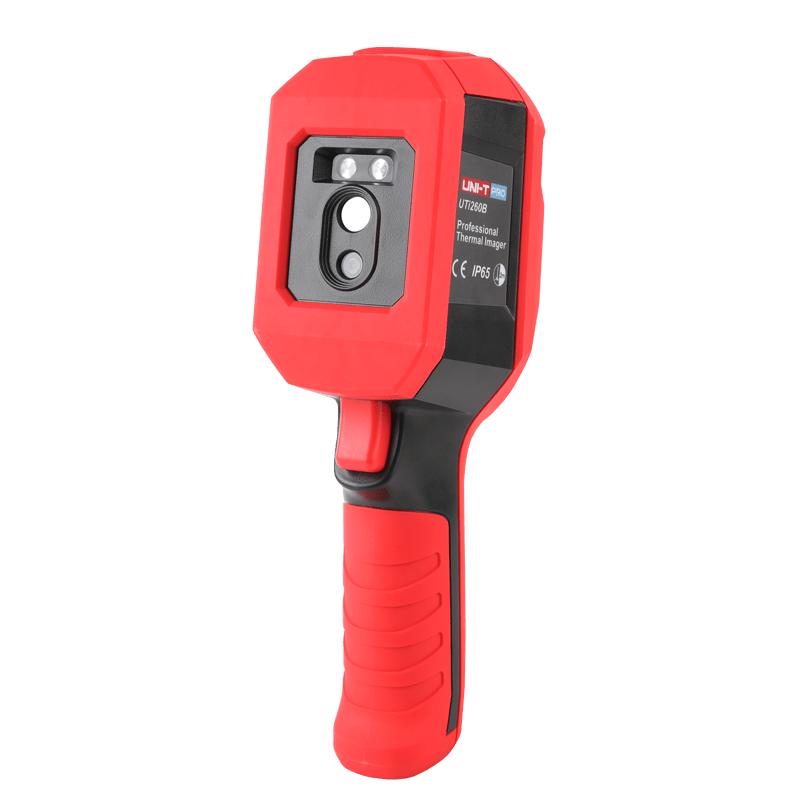

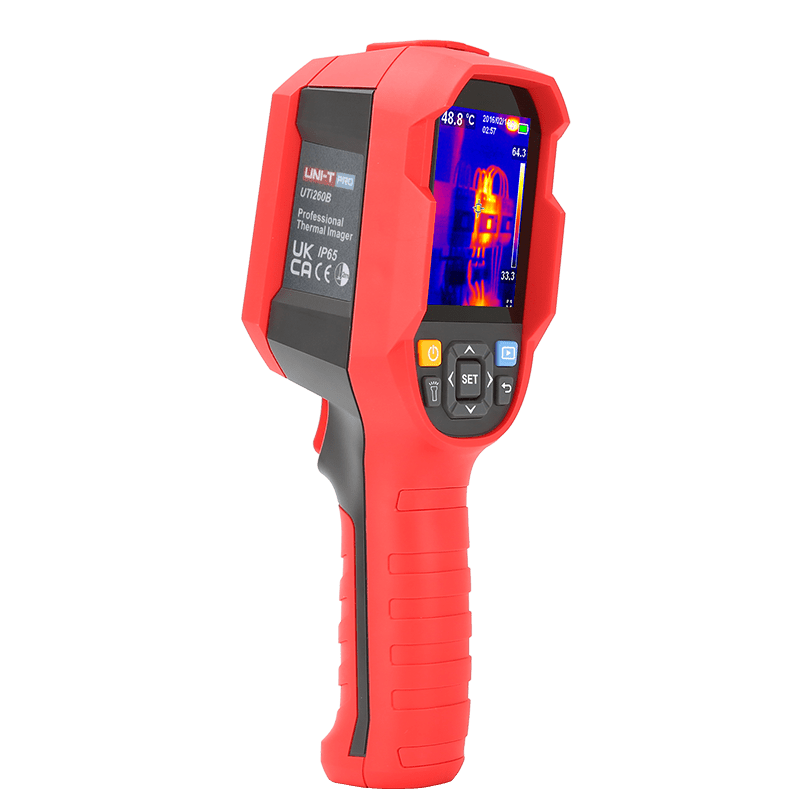

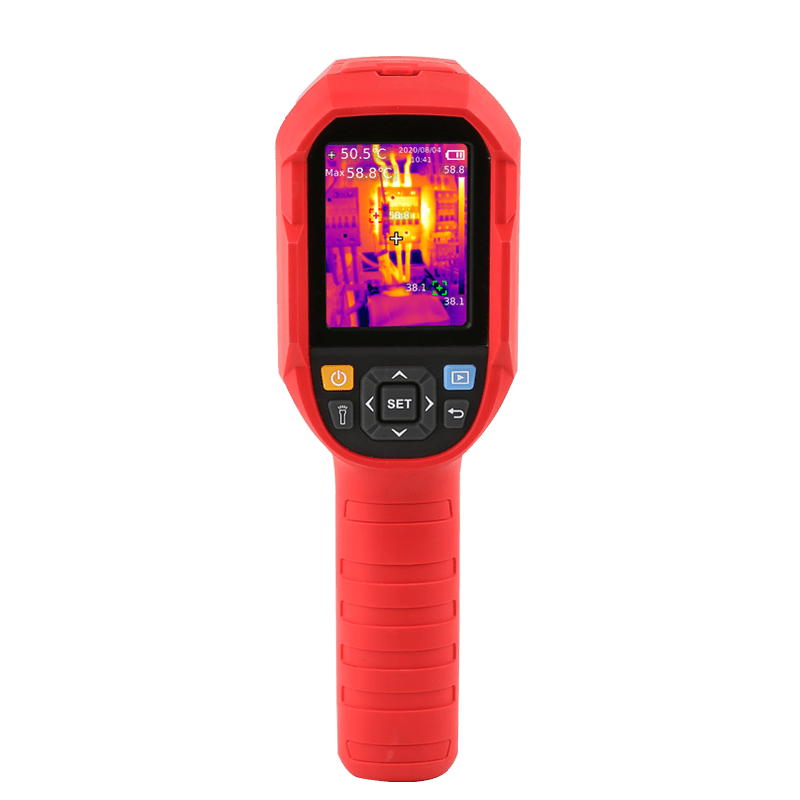

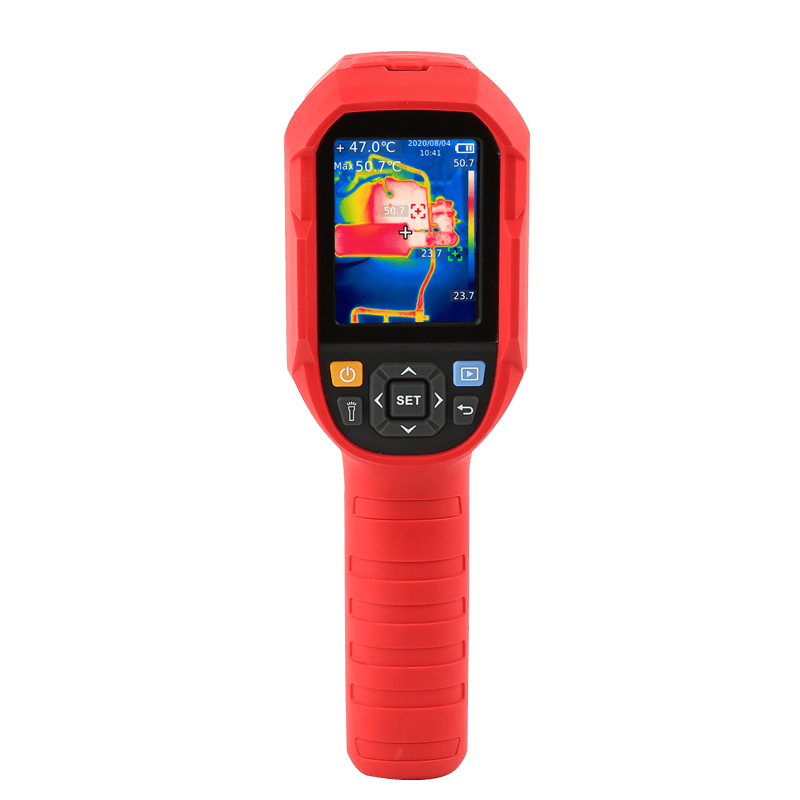

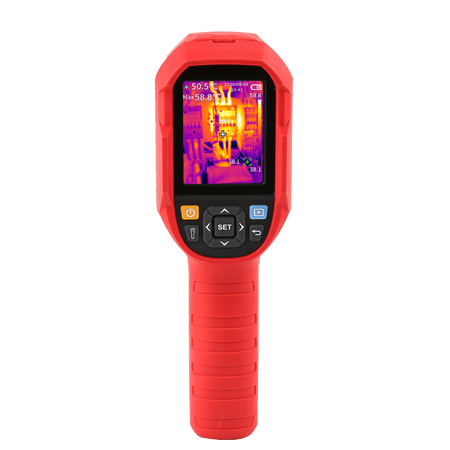

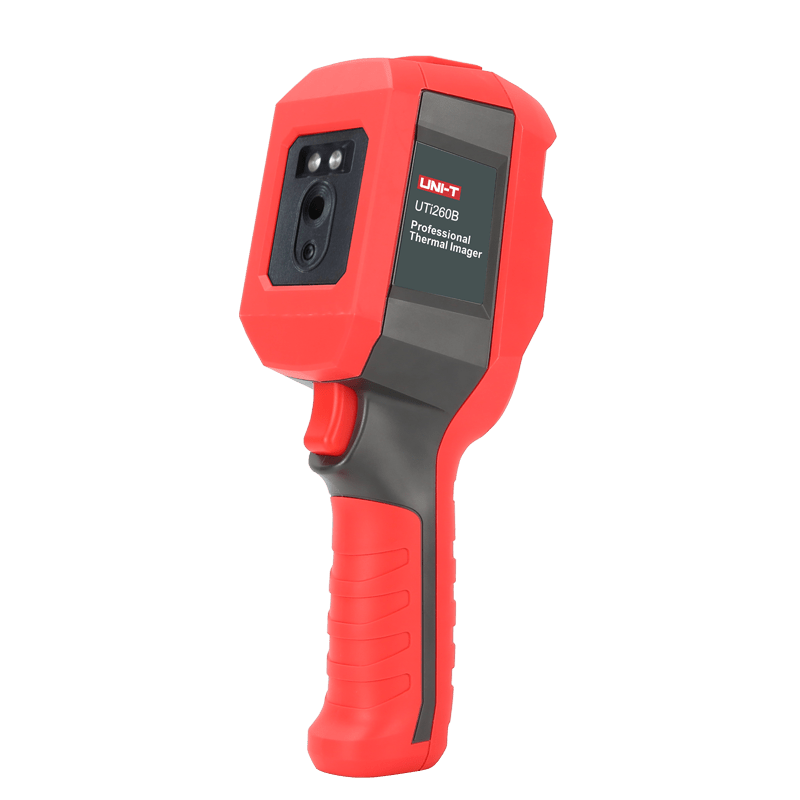

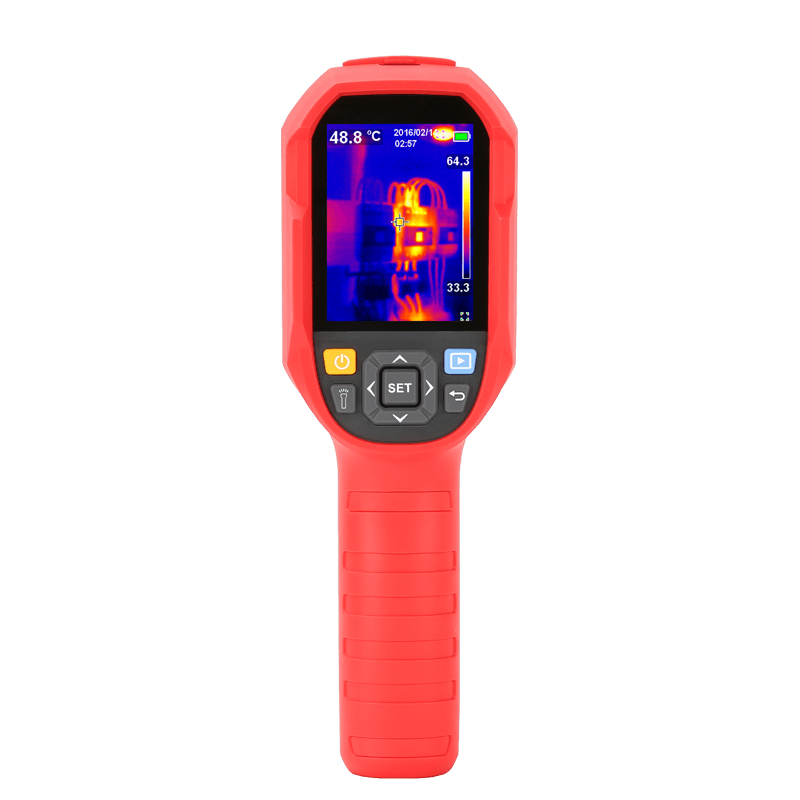

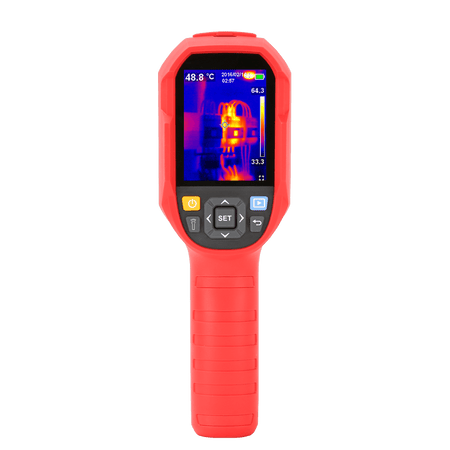

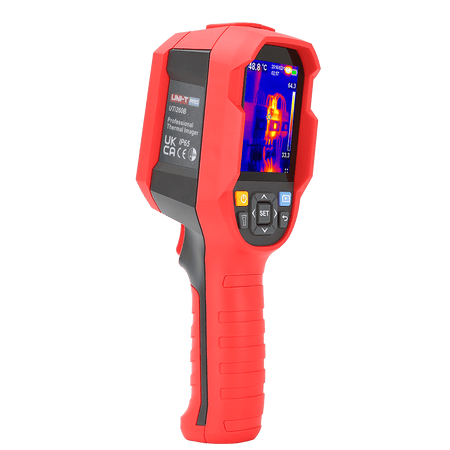

UNI-T UTi260B Thermal Imager – Infrared Camera -20℃~550℃
Pickup available at No.36-1, Jalan Sulaiman 1,
Usually ready in 2-4 days
Got questions?
Feel free to WhatsApp us

Ask an expert
The UNI-T UTi260B Thermal Imager is a professional infrared camera designed for fast, accurate thermal inspections in electrical, HVAC, building, and industrial maintenance. This compact yet rugged device features a 256×192 IR resolution, wide temperature range (-20℃ to 550℃), and an intuitive 2.8” TFT display.
Built for harsh environments, the UTi260B offers IP65 protection and is 2-meter drop proof, making it a reliable tool on any job site. With multiple thermal imaging modes including Thermal, Visual, Fusion, and PIP, plus auto hot/cold spot tracking and high/low temperature alarms, users can quickly diagnose and document thermal issues.
The built-in digital camera, LED flashlight, tripod mount, and real-time PC analysis software elevate the UTi260B’s versatility. This model is powered by a rechargeable Li-ion battery for extended use.
Whether you’re detecting insulation failures or identifying electrical overloads, the UTi260B is engineered for performance and durability in professional thermal imaging.
Key Features
-
🛠️ Durable & user-friendly – Built tough with easy navigation
-
📺 2.8” TFT Display – 320×240 pixel resolution for clear image review
-
🔥 256×192 IR Resolution – Delivers precise thermal detection
-
🌡️ -20℃ to 550℃ Temp Range – For wide industrial applications
-
🚨 Auto High/Low Temp Alarm – Alerts you to critical temperatures
-
🎯 Hot/Cold Spot Auto Tracking – Automatically detects key areas
-
📊 On-screen Analyzer (3 Points) – Inspect thermal trends instantly
-
📸 Image Capture & Modes – Thermal, Visual, Fusion, PIP
-
🔍 Digital Camera (640×480) – Adds visual context to thermal images
-
🎨 7 Color Palettes – White hot, Black hot, Ironbow, Lava, Rainbow, Rainbow HC
-
💡 LED Flashlight – Illuminate dark inspection areas
-
💻 PC Software for Real-time Analysis – Transfer & analyze data easily
-
🔋 Rechargeable Li-ion Battery – Long-lasting operation
-

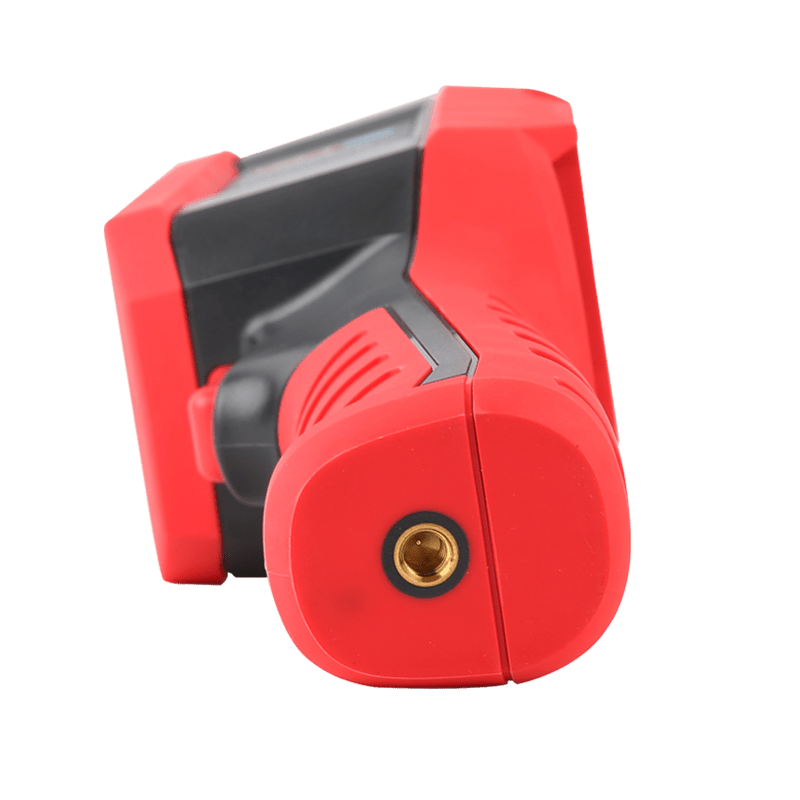

📷 1/4” Tripod Mounting Hole – For stable hands-free use
-
💧 IP65 Rated – Dust-tight and water-resistant
-
🧱 2m Drop Proof – Withstands job site abuse
Technical Data | |
IR resolution (Pixels) | 256×192 |
Display | 2.8” TFT LCD (320×240) |
Field of view(FOV) | 56°×42° |
Thermal sensitivity(NETD) | ≤60mK |
Spatial resolution(IFOV) | 3.8mrad |
Frame rate | ≤25Hz |
Spectral range | 8~14µm |
Focus | Focus Free |
Temperature measurement range | -20℃~550℃ |
Accuracy | ±2℃ or ±2% whichever is greater |
Emissivity | 0.01~1.00 adjustable (0.95 default) |
Functions | |
Color palettes | 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
Image modes | Thermal,Visual image,Fusion,PIP |
On screen analyzer | 3 Points |
Digital camera resolution | 640×480 |
Hi/Lo temperature alarm | Icon,LED flashlight |
PC software analysis | √ |
General Characteristics | |
Battery | Fixed Li-ion battery (3.6V 5000mAh) |
Battery operation time | ≥ 6 hours |
USB | Type-C |
IP rating | IP65 |
Drop proof | 2m |
Storage | Up to 32GB Micro SD card |
Image/Video storage format | BMP |
Certificates | CE,FCC,RoHS |
Product net weight | 490g |
Product size | 236mm×75.5mm×86mm |
Packing Details | |
Standard accessories | Micro SD card, Type-C USB cable, English manual,Documents download operation guide card |
Standard carton size | 500mm×315mm×295mm |
Applications of UTi260B

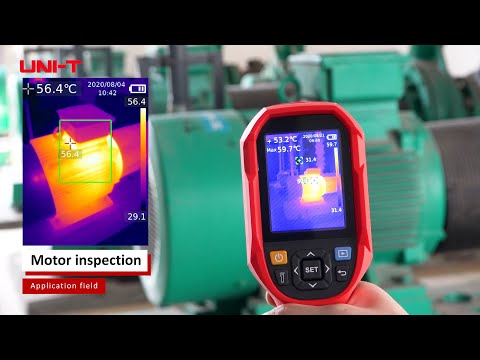

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
Pipeline Inpsection
HVAC inspection
