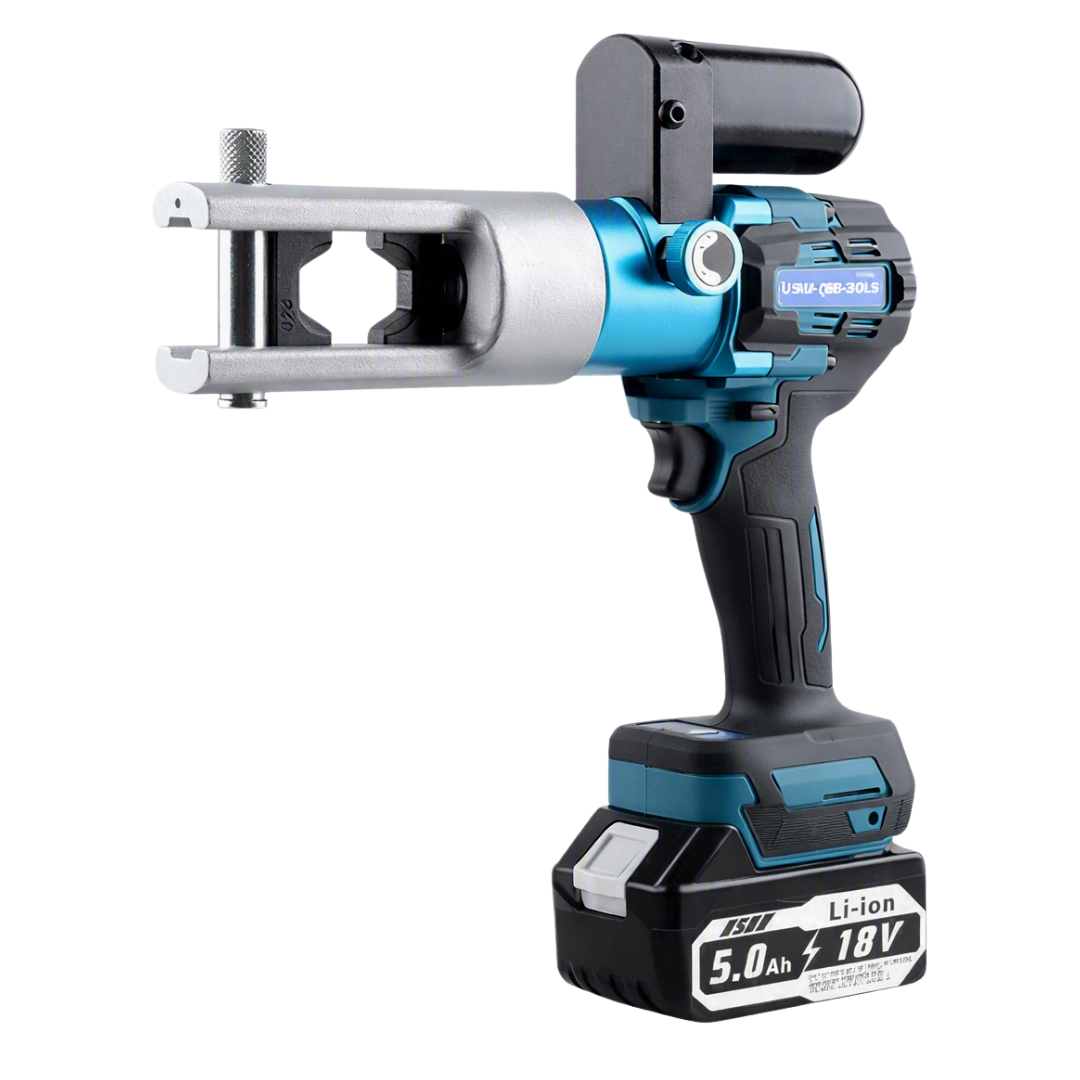

USU‑QB‑300H Rechargeable Hydraulic Crimping Tool

The USU‑QB‑300H Rechargeable Hydraulic Crimping Tool delivers 90kN output force with a 17 mm stroke, providing fast, efficient crimping for cable lugs from 10 mm² to 300 mm². Powered by an 18 V 5.0 Ah lithium‑ion battery, it combines high performance with portability. The tool features auto‑stop reverse, LED indicators, and a durable hydraulic head for professional electrical and mechanical applications.

Features

High output force → 90 kN hydraulic pressure for strong, consistent crimps.
Wide crimping range → Handles cable sizes from 10 mm² – 300 mm².
Rechargeable power → 18 V 5.0 Ah lithium battery with two packs and one charger.
Auto‑stop reverse → Automatically stops and retracts after crimp completion.
LED operation indicator → Light on during idle, off during operation for safety.
Ergonomic design → Lightweight body (3.6 kg tool, 7.5 kg full set) for easy handling.
Complete accessory kit → Includes 12 crimping dies, 2 batteries, charger, and carrying case.
Durable hydraulic head → Precision‑machined for long service life and leak‑free performance.

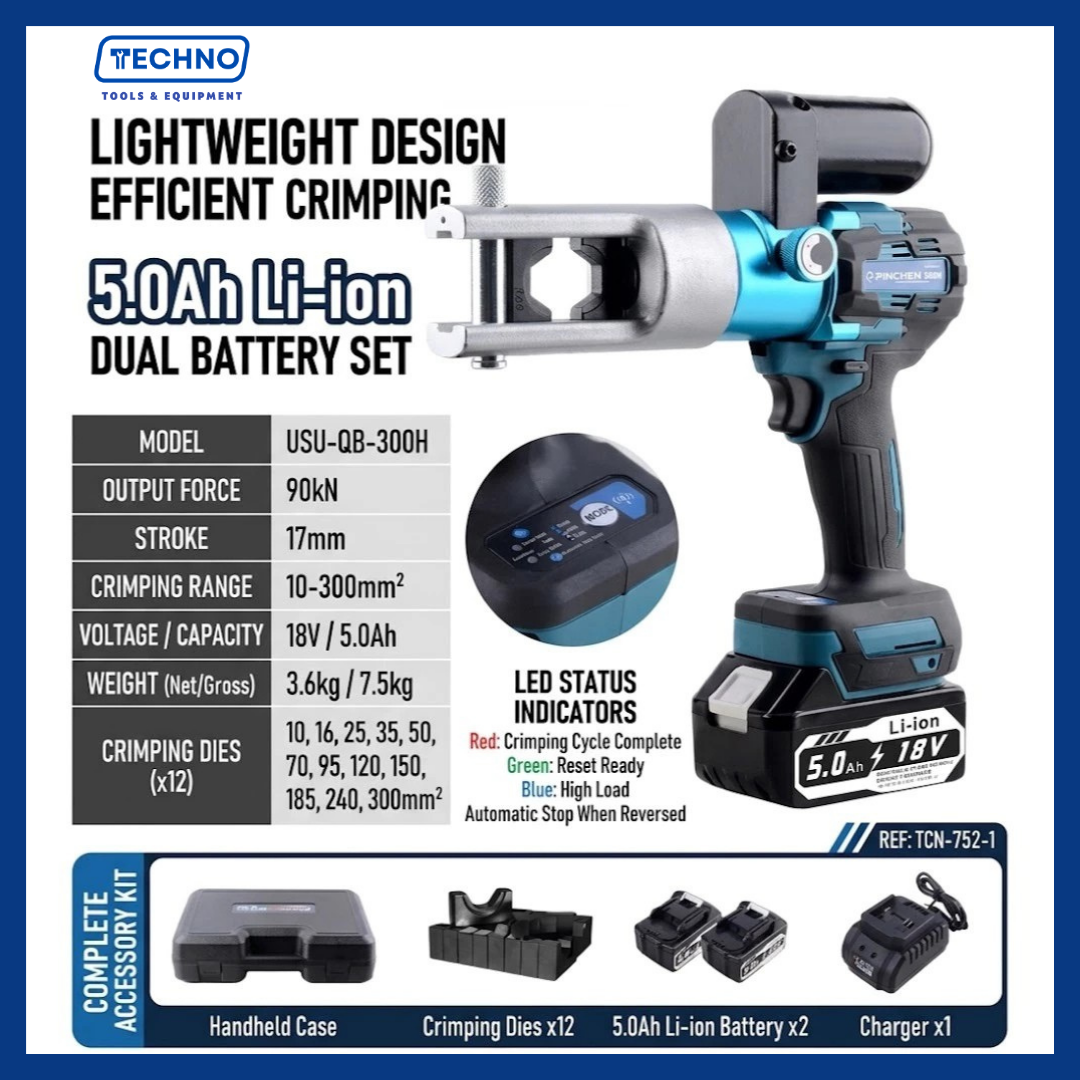

Specifications

Model: USU‑QB‑300H
Output Force: 90 kN
Stroke: 17 mm
Crimping Range: 10 – 300 mm²
Battery Capacity: 18 V 5.0 Ah lithium‑ion
Weight: 3.6 kg (tool only) / 7.5 kg (full set)

Accessories:

12 crimping dies (10/16/25/35/50/70/95/120/150/185/240/300 mm²)
2 × 5.0 Ah batteries
1 × charger
1 × carrying plastic case

Functions: Auto‑stop reverse, LED indicator (light on = idle, off = operation)
Material: High‑strength alloy steel hydraulic head

Frequently Asked Questions

What cable sizes can this tool crimp?  - It supports cable lugs from 10 mm² to 300 mm², covering most electrical installation needs.

How long does the battery last?  - Each 18 V 5.0 Ah lithium battery provides extended runtime, and the set includes two batteries plus a charger for continuous use.

Is it safe to use?  - Yes, it features auto‑stop reverse to prevent over‑crimping and an LED indicator for operation status.
