VALUE DIGITAL MULTI CLAMP METER VMC-1

In stock - 24 items available
SKU: VMC-1
Regular price RM129.90 MYR

Product Brochure

Click Here: Brochure in PDF

Product Datasheet / User Manual

Click Here: Datasheet in PDF

Trustify review stars will be displayed here!

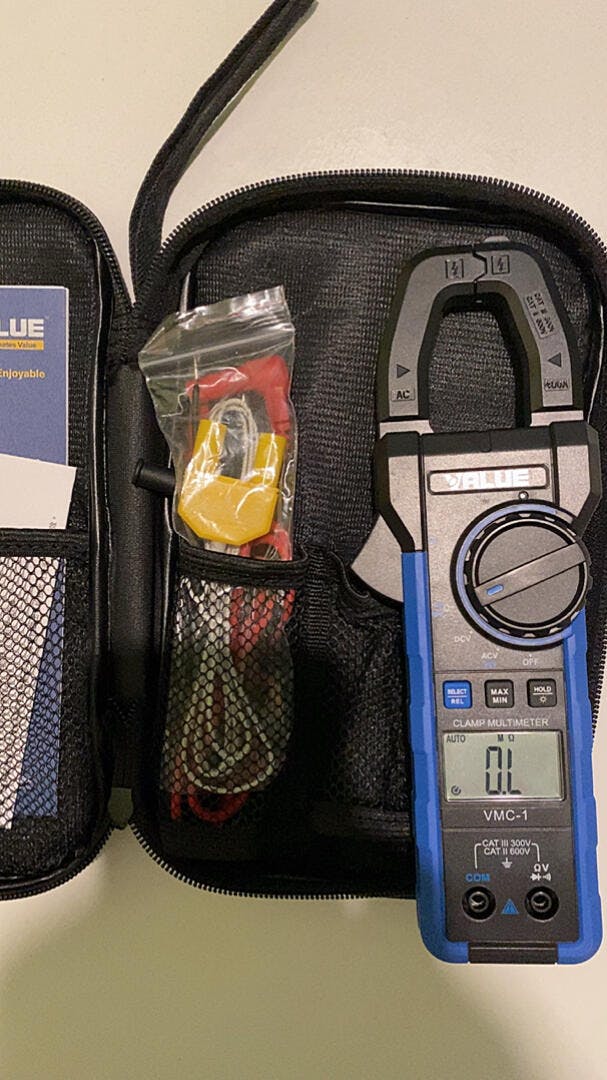

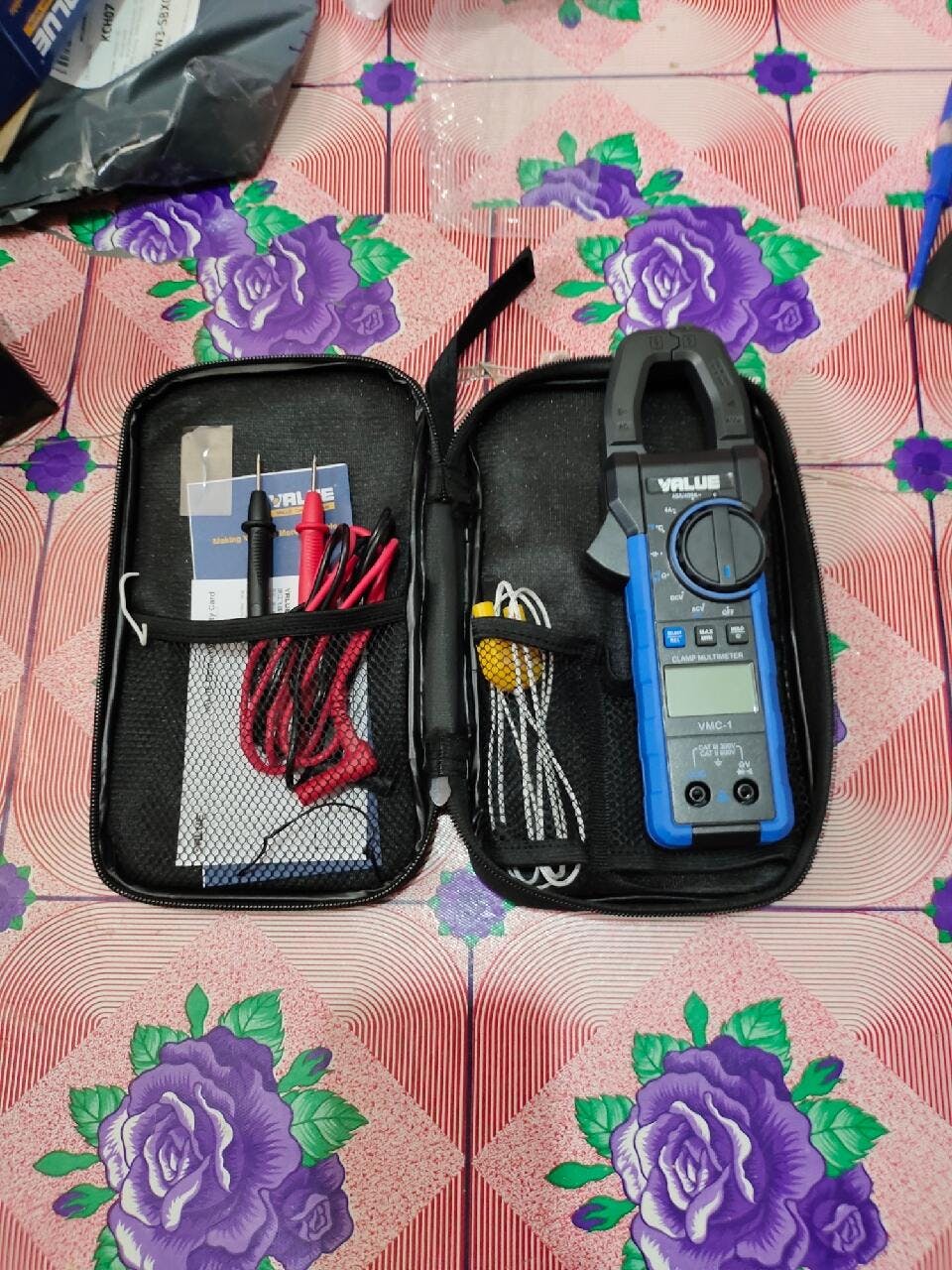

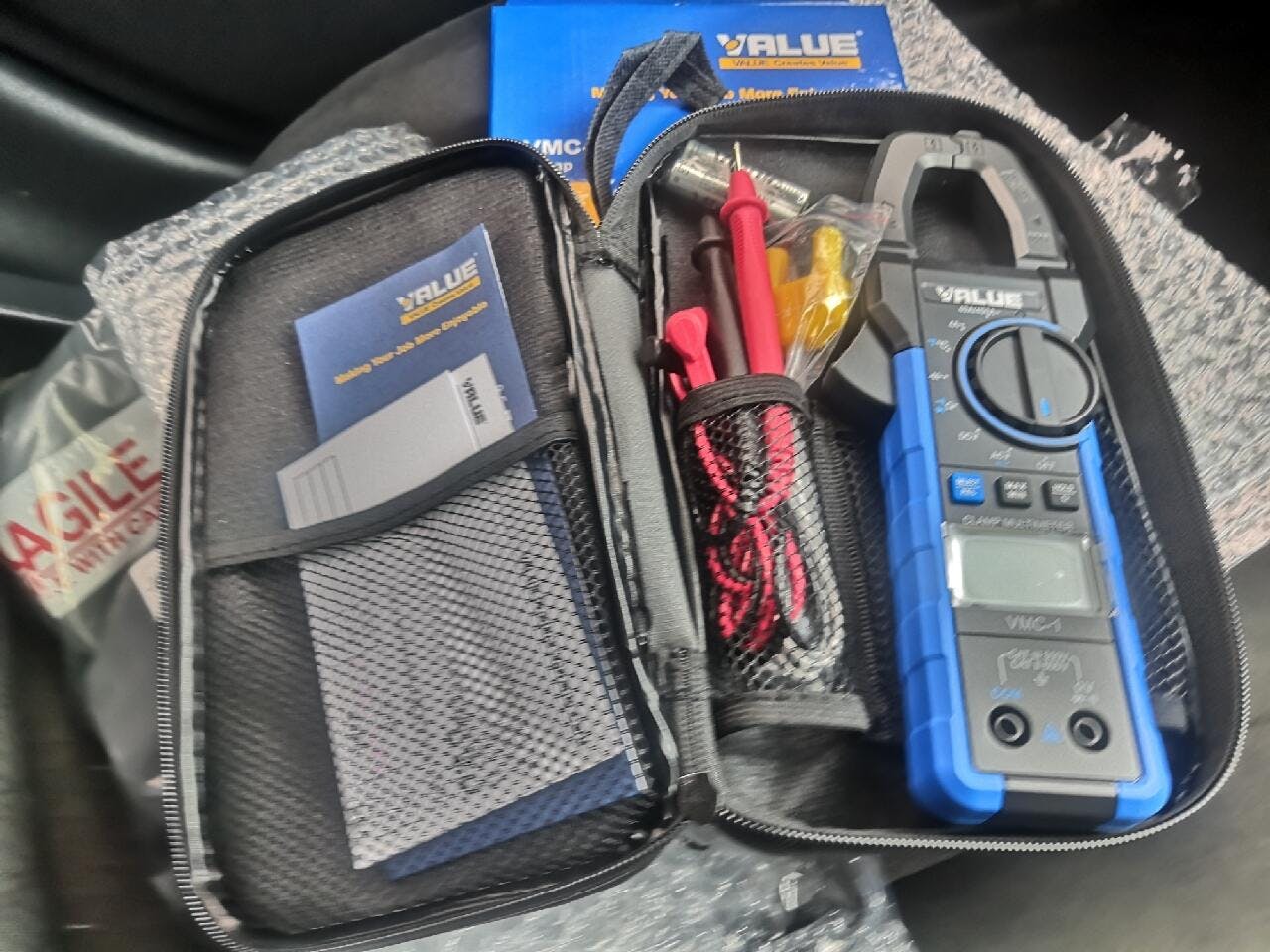

Model : VALUE DIGITAL MULTI CLAMP METER VMC-1

Features :

VMC-1 series are 4000-count hand-held clamp meters with auto range feature. The meter is designed with ergonomic structure and overload protection for each range, which makes it superior tool for electricians. VMC-1 series can measure AC/DC voltage, AC current, resisance, diode, contiuity, capacitance, temperature and perform data hold, max/min measurement, relative value measurement, NCV (non-contact voltage), low battery indication, auto/visual alarm and auto power off functions.

Specification :

LCD display max. disp. value 4099
Polarity display automatic
Overload display "OL" or "-OL"
Low battery indication yes
Measurement deviation if the conductor being measured is not placed in the center of the jaw during current measurement, it will cause extra ±1.0% reading error.
Drop test 1m drop test passed
Max. jaw opening 28 mm
Max. current conductor size 28 mm
Power supply 2 x AAA 1.5V
Value NAVTEK VMC-1 digital clamp multimeter

- measures AC/DC voltage, AC current, resitance, diode, °C/°F temperature and others
- automatic shut down function for energy saving
- low battery alarm
- 250V overload protection
- maximum voltage measurement 600V
- maximum AC current measurement 400A
- temperature measurement range -40°C~1000°C

Warranty subject to Manufacturing Default only : 6 months
No warranty after used for all Value electronic products
