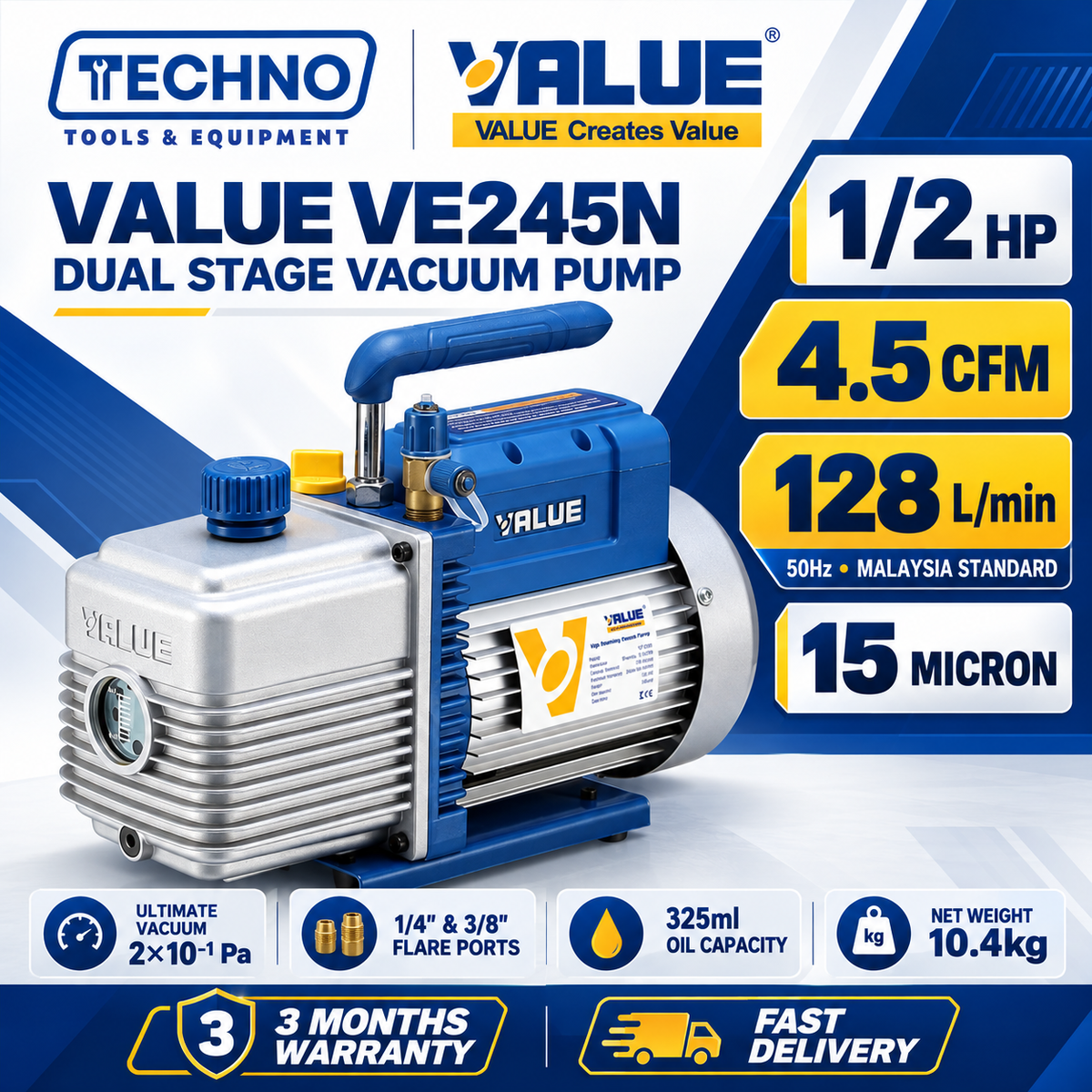

VALUE VE245N Dual Stage Vacuum Pump — 1/2HP | 4.5CFM | 15 Micron | Malaysia 50Hz

The VALUE VE245N Dual Stage Vacuum Pump is a professional-grade, dual-stage pump engineered to achieve an exceptional 15 micron (2x10⁻¹ Pa) ultimate vacuum — significantly deeper than single-stage pumps which achieve only 150 micron — making it the ideal choice for demanding HVAC and refrigeration applications where maximum system dryness and contamination removal is critical. With a 1/2HP motor and 4.5CFM (128 L/min) at Malaysia's standard 50Hz supply, the VE245N delivers reliable, steady long-run performance in a compact and portable package.

Compatible with refrigerants including R407C, R404A, R507A and R134A.

Specifications

Specification Details
Model VE245N
Brand VALUE
Power 1/2 HP
Power Supply 230V / 50Hz
(Malaysia standard supply — fully compatible with local power sockets)
Flow Rate (L/min) 128 L/min (50Hz) — Malaysia standard
142 L/min (60Hz)
Flow Rate (CFM) 4.5 CFM (50Hz) — Malaysia standard
5.0 CFM (60Hz)
Ultimate Vacuum (Partial Pressure) 2x10⁻¹ Pa
Ultimate Vacuum (Total Pressure) 15 micron
Inlet Port Fitting 1/4" & 3/8" flare
Oil Capacity 325ml
Dimensions 338 x 138 x 244mm
Net Weight 10.4kg

Compatible Refrigerants

R407C, R404A, R507A, R134A

Features & Benefits

  1. 15 Micron Deep Ultimate Vacuum — Dual Stage Performance
    Dual-stage design achieves 15 micron (2x10⁻¹ Pa) ultimate vacuum — 10x deeper than single-stage pumps at 150 micron — ensuring superior moisture and contaminant removal for sensitive refrigeration systems.
  2. 1/2HP Reliable Motor
    Powerful 1/2HP motor runs steadily for extended periods — engineered for long-run continuous operation without overheating or performance degradation.
  3. 4.5CFM / 128 L/min at Malaysian 50Hz Supply
    Delivers 4.5CFM (128 L/min) at Malaysia's standard 50Hz power supply — providing efficient, rapid evacuation of refrigeration circuits across residential and commercial HVAC applications.
  4. Wide Range Applications
    Dual-stage design and deep vacuum capability make the VE245N suitable for a wide range of HVAC, refrigeration and air conditioning applications requiring superior system dryness.
  5. Dual Inlet Port Fittings
    Dual 1/4" and 3/8" flare inlet fittings offer broad compatibility with different manifold gauge sets and HVAC equipment configurations.
  6. Compact & Portable
    At only 10.4kg and compact dimensions, the VE245N is easy to carry and store — designed for technicians who need reliable deep-vacuum performance in a portable package.

Applications

  • Residential and commercial HVAC system deep evacuation
  • Automotive air conditioning system evacuation
  • Refrigeration circuit moisture and contaminant removal
  • Split unit installation and commissioning
  • Sensitive refrigerant systems requiring deep vacuum pull

VALUE VE-N Series Vacuum Pump comparison

Model VE115N VE135N VE180N VE245N (this model) VE260N VE280N VE2100N
Stage Single Single Single Dual Dual Dual Dual
Flow rate (50Hz) 1.8 CFM / 51 L/min (2.0 CFM) 3.5 CFM / 100 L/min (4.0 CFM) 8.0 CFM / 226 L/min (9.0 CFM) 4.5 CFM / 128 L/min (5.0 CFM) 6.0 CFM / 170 L/min (7.0 CFM) 8.0 CFM / 226 L/min (9.0 CFM) 10.0 CFM / 283 L/min (12.0 CFM)
Ultimate vacuum 150 micron 150 micron 150 micron 15 micron 15 micron 15 micron 15 micron
Motor 1/4 HP 1/3 HP 3/4 HP 1/2 HP 3/4 HP 1 HP 1 HP
Inlet port 1/4" SAE 1/4" & 3/8" SAE 1/4" & 3/8" SAE 1/4" & 3/8" SAE 1/4" & 3/8" SAE 1/4" & 3/8" SAE 1/4" & 3/8" SAE
Oil capacity 250 ml 250 ml 660 ml 325 ml 580 ml 500 ml 590 ml
Weight 6.6 kg 8.0 kg 14.6 kg 10.4 kg 15.8 kg 16.2 kg 16.7 kg
Best for Car air-con and small split units; lightest in the range Residential split units where a faster pull-down is wanted High-flow single-stage work on larger systems Compact dual-stage deep vacuum for residential systems All-round dual-stage pump for split and light commercial systems Light commercial and multi-split systems Largest systems and fastest evacuation in the range

Flow rates are at 50Hz (Malaysian mains); 60Hz figures in brackets. Source: VALUE official N Series specifications.

Compatible Accessories

Why Choose VALUE VE245N?

  • Deep 15 micron ultimate vacuum — 10x deeper than single-stage
  • Reliable 1/2HP motor for long-run continuous operation
  • 4.5CFM / 128 L/min at Malaysian 50Hz supply
  • Dual 1/4" and 3/8" flare inlet for broad compatibility
  • Compact 10.4kg for easy field portability
  • 100% original VALUE brand quality
  • Trusted by HVAC technicians across Malaysia
