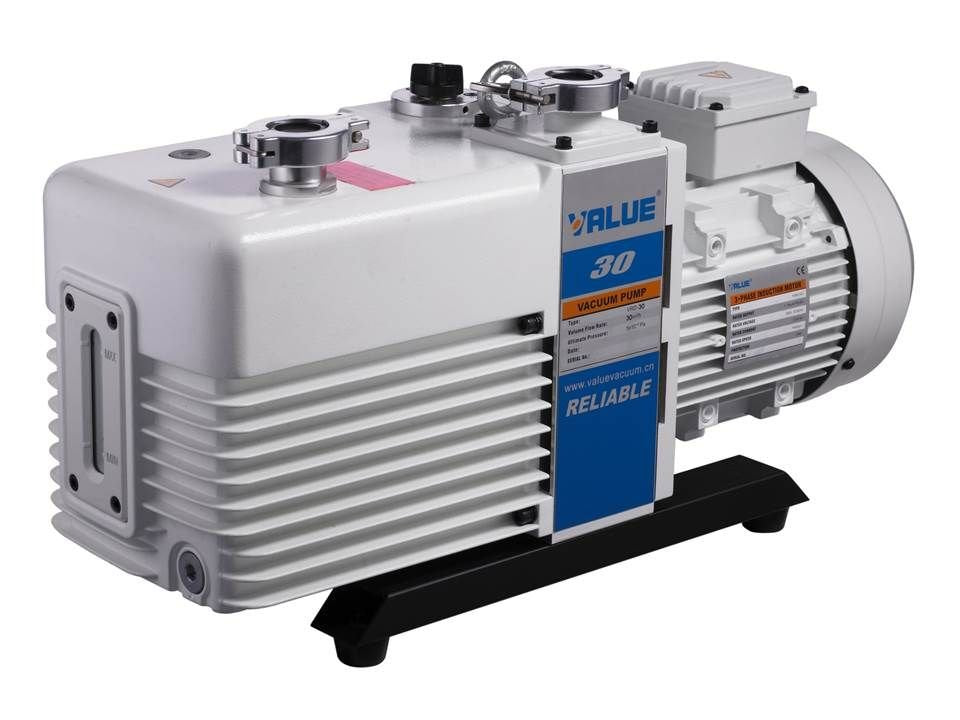

VALUE VRD-30 Dual-Stage Vacuum Pump 30m³/h 50Hz 1PH

Name: VALUE VRD-30 Dual-Stage Vacuum Pump 30m³/h 50Hz 1PH
Brand: VALUE
SKU: VRD-30
Price: 11000.00 MYR
Availability: InStock

SKU: VRD-30

RM11,000.00

Techno Tools & Equipment's provide same day delivery

Product Overview

The VALUE VRD-30 Dual-Stage Vacuum Pump is designed for laboratory and industrial applications that require reliable vacuum performance. With a displacement speed of 30 m³/h, this oil-sealed rotary vane pump features an integrated cylinder structure and a forced oil circulation system to support stable operation.

The VRD-30 incorporates an adjustable two-position gas ballast valve to accommodate different condensable vapour removal requirements. Its dual oil anti-suck-back protection helps prevent oil from flowing back into the vacuum system when the pump stops. The maintenance-friendly design makes it suitable for production processes, vacuum drying and other industrial vacuum applications.

Key Features

30 m³/h Pumping Capacity: Suitable for laboratory and industrial vacuum processes.
Dual-Stage Design: Supports low-pressure vacuum applications.
Adjustable Gas Ballast: Helps manage condensable vapours, such as water vapour, under suitable operating conditions.
Oil Anti-Suck-Back Protection: Helps prevent oil backflow into the vacuum system when the pump stops.
Forced Oil Circulation: Provides a constant-pressure oil supply for stable pump operation.
Integrated Cylinder Structure: Designed to support operational stability.
Maintenance-Friendly Construction: A simplified component structure helps facilitate servicing and repairs.
KF Vacuum Connections: Designed for integration with compatible vacuum piping systems.

Technical Specifications

Specification	VALUE VRD-30
Brand	VALUE
Model	VRD-30
Pump Type	Dual-stage oil-sealed rotary vane vacuum pump
Displacement Speed	30 m³/h
Displacement Speed	498 L/min / 17.6 CFM
Ultimate Partial Pressure (Gas Ballast Closed)	4 × 10⁻² Pa
Ultimate Total Pressure (Gas Ballast Closed)	4 × 10⁻¹ Pa
Ultimate Total Pressure (Gas Ballast Open)	8 × 10⁻¹ Pa
Power Supply	230 V / 400 V options
Motor Power	1.10 kW
Compression Stages	2
Motor Speed at 50 Hz	1440 rpm
Intake and Exhaust Connections	KF25 / KF40 (confirm connection allocation)
Oil Type	Mineral vacuum pump oil
Recommended Oil Viscosity	68 mm²/s
Oil Capacity	1.3–2.0 L
Operating Ambient Temperature	5–40°C
Noise Level	≤58 dB
Net Weight	37 kg (English product page)

Electrical configuration: The manufacturer indicates that three-phase versions are available. Confirm that the supplied unit is the required 230 V single-phase (1PH) model before ordering.

Package Contents

The manufacturer's Polish product page identifies the packaging as a cardboard carton on a pallet. The full accessory inventory is not confirmed on the English product page.

VALUE VRD-30 vacuum pump
Cardboard carton and pallet packaging
Vacuum pump oil: confirm whether supplied
Power cable and plug: confirm with supplier
Connection accessories and operating instructions: confirm with supplier

Only list accessories as included if they are confirmed in the actual shipment.

Warranty Term

Warranty: To be confirmed with the authorised distributor.

Please verify the applicable warranty duration, coverage and exclusions before publishing. No specific warranty period is stated here because it has not been confirmed in the official product specifications.

Why Choose VALUE?

VALUE offers vacuum equipment and HVACR tools for professional and industrial applications. The VRD-30 combines a 30 m³/h pumping capacity with dual-stage compression, forced oil circulation, adjustable gas ballast and oil anti-suck-back protection.

Its integrated cylinder structure supports stable operation, while the simplified construction helps make maintenance more manageable. With its substantial pumping capacity and practical vacuum-system protection features, the VRD-30 is a suitable option for industrial processes, vacuum drying and other applications requiring dependable vacuum performance.

Choose VALUE VRD-30 for a practical combination of pumping capacity, vacuum performance and essential oil-management features in a dual-stage vacuum pump.
