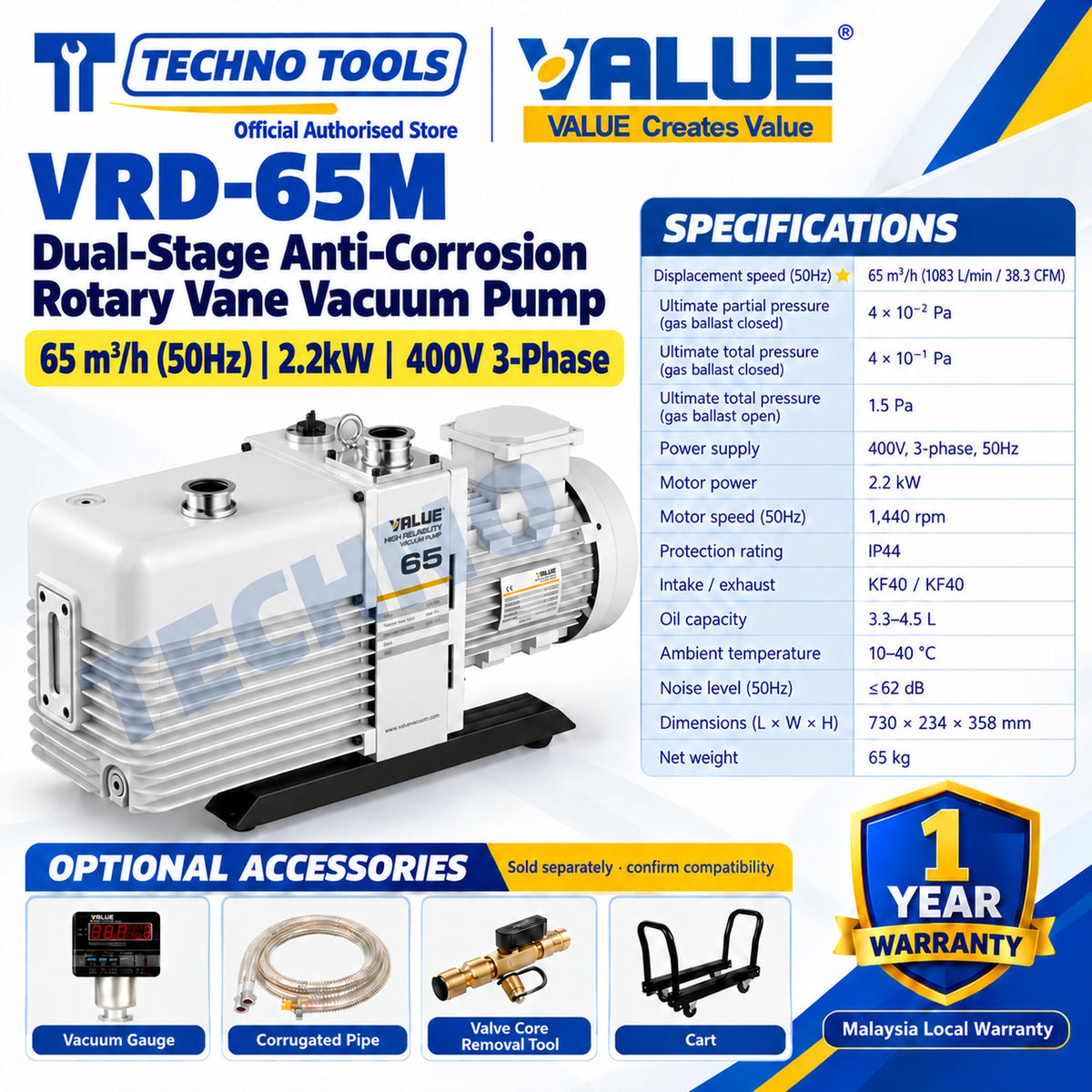

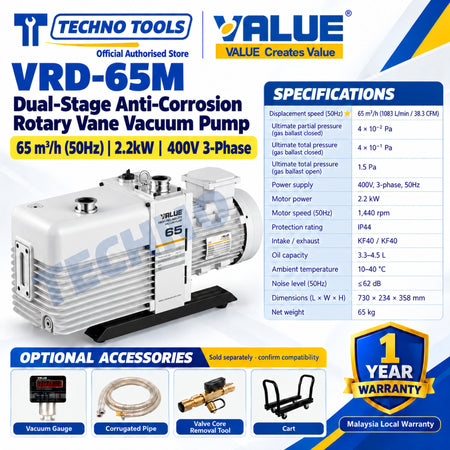

VALUE VRD-65M Dual-Stage Anti-Corrosion Rotary Vane Vacuum Pump 65m³/h (50Hz) 2.2kW 400V 3-Phase
Couldn't load pickup availability
Product Overview
The VALUE VRD-65M Dual-Stage Sterilizer Vacuum Pump is built for sterilization equipment and other processes where corrosive gases and water vapour enter the pump. It delivers 65 m³/h at 50Hz on a 400V 3-phase supply, with a specially treated pump body to resist corrosion.
Forced oil circulation, a multi-stage gas ballast and an automatic anti-suck-back valve keep the pump stable and protect your vacuum system from oil backflow when the pump stops.
Key Features
- Anti-corrosion pump body: Special surface treatment resists corrosive gases and vapours entering the pump.
- FKM seals: Fluoroelastomer seals improve corrosion resistance and reduce oil leakage.
- 65 m³/h at 50Hz: Dual-stage design for low ultimate pressure in sterilizer vacuum cycles.
- Multi-stage gas ballast: Adjustable gas ballast handles water vapour and different vacuum requirements.
- Forced lubrication: Built-in gear pump with constant-pressure oil supply, stable even at high suction pressure.
- Anti-suck-back valve: Automatically prevents oil flowing back into the vacuum system after shutdown.
- Air-cooled: Oil-circulation air cooling, no external water cooling needed.
- Optional oil mist filter: Reduces oil mist at the exhaust when fitted.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | VALUE |
| Model | VRD-65M |
| Pump type | Dual-stage oil-sealed rotary vane vacuum pump, anti-corrosion |
| Displacement speed (50Hz) ⭐ | 65 m³/h (1083 L/min / 38.3 CFM) |
| Ultimate partial pressure (gas ballast closed) | 4 × 10⁻² Pa |
| Ultimate total pressure (gas ballast closed) | 4 × 10⁻¹ Pa |
| Ultimate total pressure (gas ballast open) | 1.5 Pa |
| Power supply | 400V, 3-phase, 50Hz |
| Motor power | 2.2 kW |
| Motor speed (50Hz) | 1,440 rpm |
| Protection rating | IP44 |
| Intake / exhaust | KF40 / KF40 |
| Oil capacity | 3.3–4.5 L |
| Ambient temperature | 10–40 °C |
| Noise level (50Hz) | ≤62 dB |
| Dimensions (L × W × H) | 730 × 234 × 358 mm |
| Net weight | 65 kg |
⭐ Malaysia standard (50Hz). Specifications are based on VALUE factory data for the equivalent anti-corrosion model.
Package Contents
- 1 × VALUE VRD-65M vacuum pump
Please contact us to confirm whether pump oil and connection fittings are supplied with your order.
Applications
- Sterilizers and medical sterilization equipment
- Vacuum drying with high water vapour load
- Processes with mildly corrosive gases
- Laboratory and industrial vacuum systems
Warranty
1-year local warranty in Malaysia, supported by Techno Tools & Equipment. Keep your invoice as proof of purchase.
Why Choose VALUE?
VALUE has over 30 years of experience in vacuum technology and HVAC tools. The VRD series combines dual-stage pumping, forced lubrication and anti-suck-back protection in a compact, easy-to-service pump. Buy from Techno Tools for local stock support, a 1-year Malaysia warranty and fast delivery nationwide.
