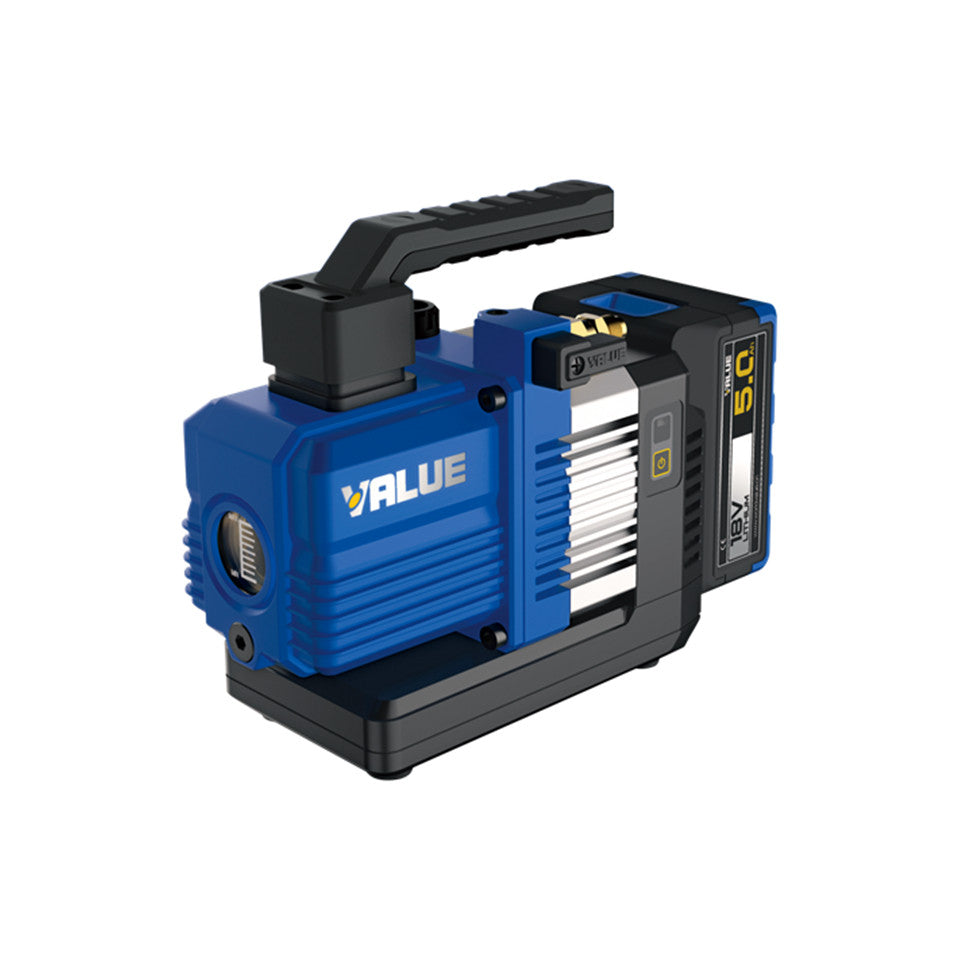

VALUE VRP-2SLi 2CFM Single-stage compact cordless vacuum pump

Single-stage compact cordless vacuum pump VALUE. It is designed for refrigerants from HFC and HFO groups (ex.: R32, 1234yf).

Main features of VRP-2SLi 2CFM Single-stage compact cordless vacuum pump:

Lightweight, small, high quality vacuum

Forced oil circulation mechanism

Light and efficient DC motor

Built-in solenoid valve

Light and efficient DC motor

Non-sparking design, suitable for R-32 and R-1234yf

Li-ion quality battery

Specifications of VRP-2SLi 2CFM Single-stage compact cordless vacuum pump

Flow 57 l/min / 2 CFM

Vacuum Level (Partial / Total) 20 Pa / 150 micron

Motor Power 0,15 kW (0,2 KM)

Compression Stages 1

Power Supply 18 V

Motor Speed at 50 Hz 3800 rpm

Noise Level 65 dB

Inlet Connection 1/4" SAE

Oil Capacity 0.18 l

Oil Type mineral, viscosity: 46 mm²/s

Dimensions 233 x 90 x 190 mm

Weight 2.7 kg

Protection Class IP20

Operating Temperature -1 - 40°C

Storage Temperature -10  - 50°C

Minimum Oil Temperature for Start up -1°C

Shut-Off Valve yes (manual)

Exhaust Plug Thread in the handle

Vacuum Gauge no

Motor type DC 18 V

Work time about 50 min (battery 5 Ah)

Packaging aluminium case

FAQs

1. What refrigerants are supported?

Designed for HFC and HFO refrigerants, including R32 and R1234yf.

2. How long does the battery last?

Around 50 minutes under typical use; up to 75 minutes in lighter conditions.

3. Does it include accessories?

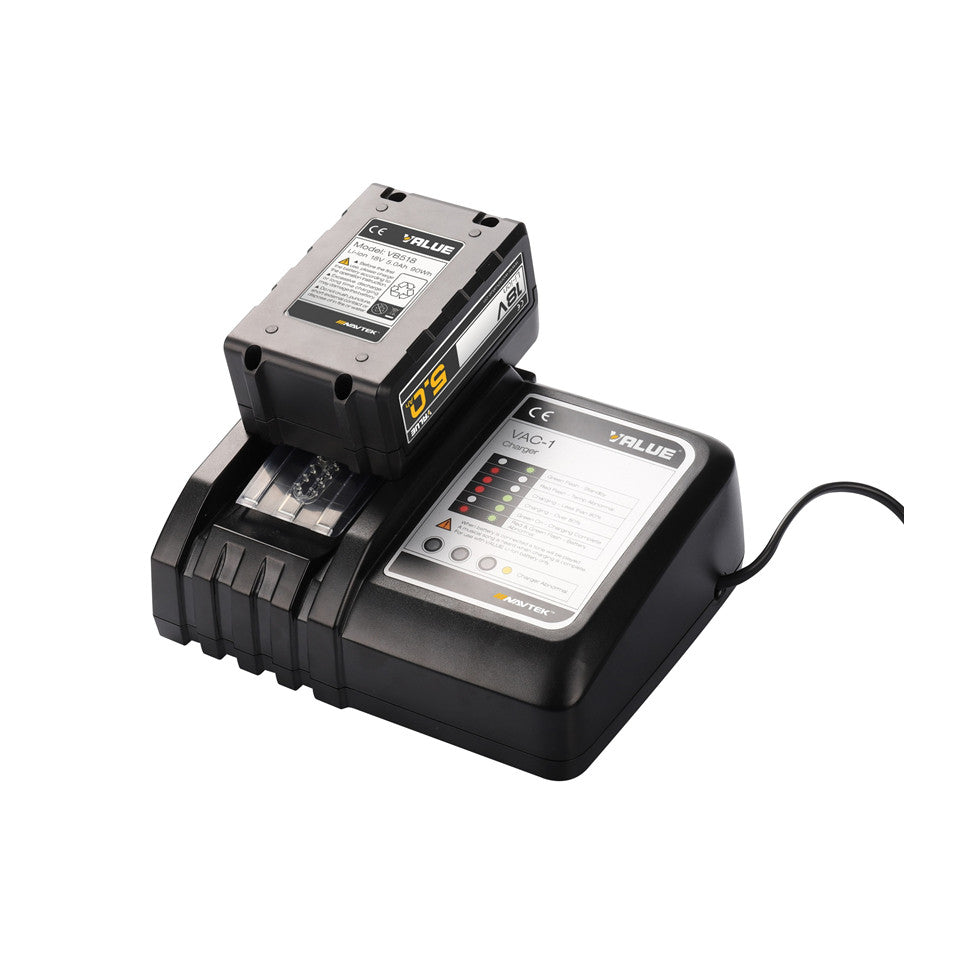

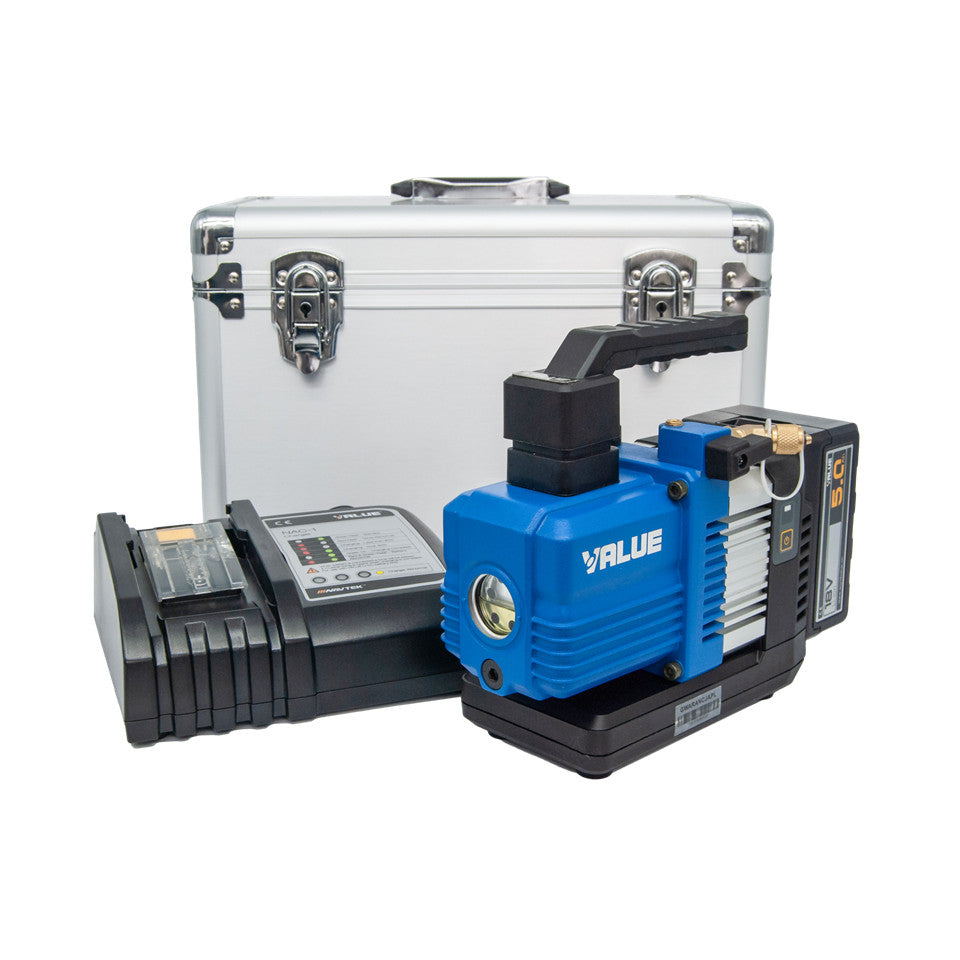

Comes with charger, vacuum pump oil, and aluminum carrying case.

4. How do I check oil level?

Via the sight glass. Always maintain oil between min and max marks.
