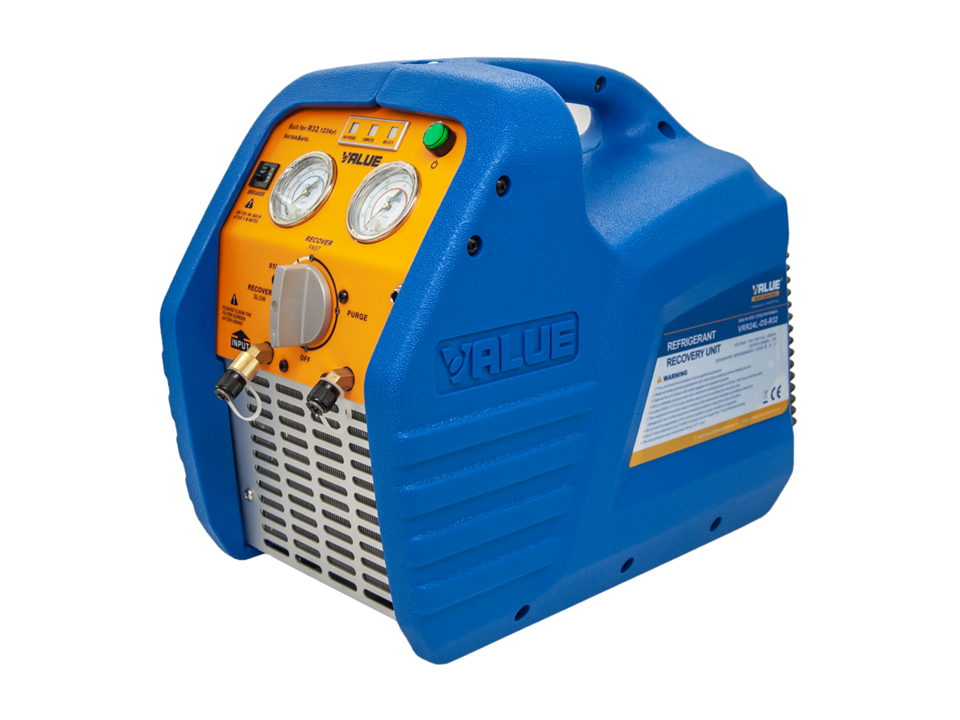

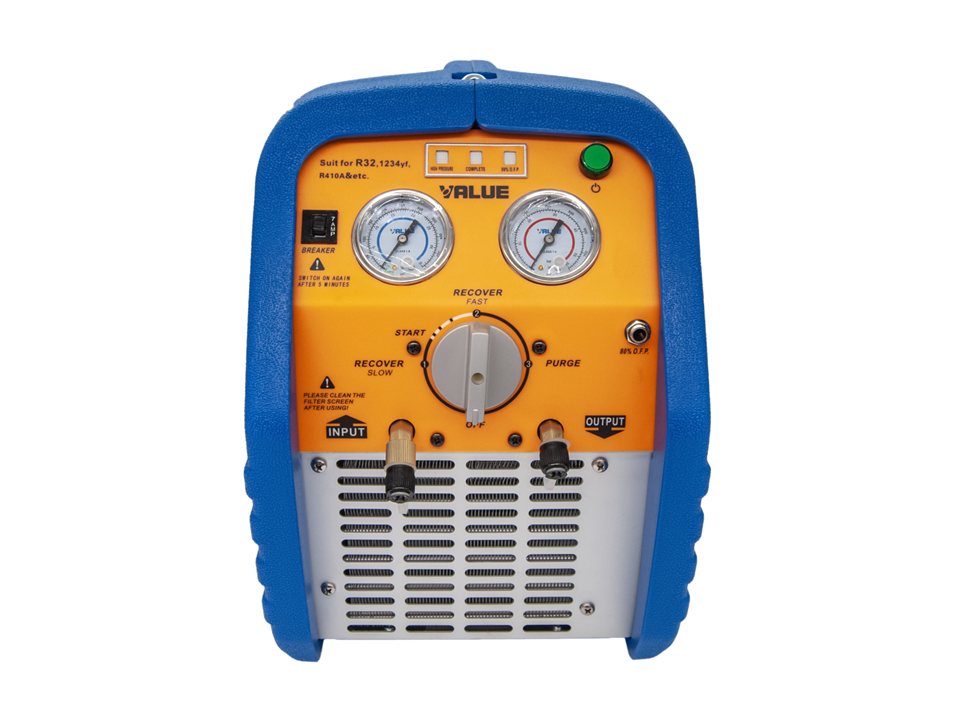

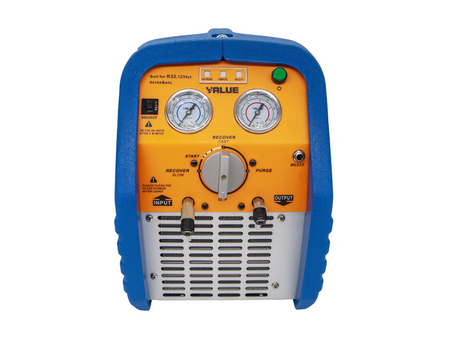

Value VRR24L-OS-R32 Refrigerant Recovery Unit — Twin Cylinder | Oil-Free | R32 Compatible
The Value VRR24L-OS-R32 Refrigerant Recovery Unit is a professional-grade refrigerant recovery machine with built-in oil separator, designed for the recovery of HFC and HCFC refrigerants across Categories III, IV and V — including R32, R410A, R22 and R134a. Featuring one-key operation, a twin cylinder oil-free piston compressor, self-purge function and high-pressure protection, the VRR24L-OS-R32 delivers fast, reliable and safe refrigerant recovery for HVAC technicians.
Specifications
| Specification | Details |
|---|---|
| Model | VRR24L-OS-R32 |
| Brand | Value |
| Motor | 1 HP |
| Motor Speed | 1450 RPM |
| Max Current Draw | 5A |
| Power Supply | 230V / 50Hz |
| Compressor Type | Oil-less, Air-cooled, Piston-style |
| Auto Safety Shut-off | 38.5 bar / 3850 kPa (558 PSI) |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 450 x 250 x 355mm |
| Weight | 14.7kg |
Compatible Refrigerants
| Category | Refrigerants |
|---|---|
| Category III | R-12, R-134a, R-401C, R-500, R-1234yf |
| Category IV | R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509 |
| Category V | R-402A, R-404A, R-407B, R-410A, R-507, R-32 |
Recovery Rates
| Category | Vapour | Liquid | Push/Pull |
|---|---|---|---|
| Category III | 0.40 kg/min | 3.00 kg/min | 7.50 kg/min |
| Category IV | 0.50 kg/min | 3.50 kg/min | 8.50 kg/min |
| Category V | 0.50 kg/min | 3.50 kg/min | 9.50 kg/min |

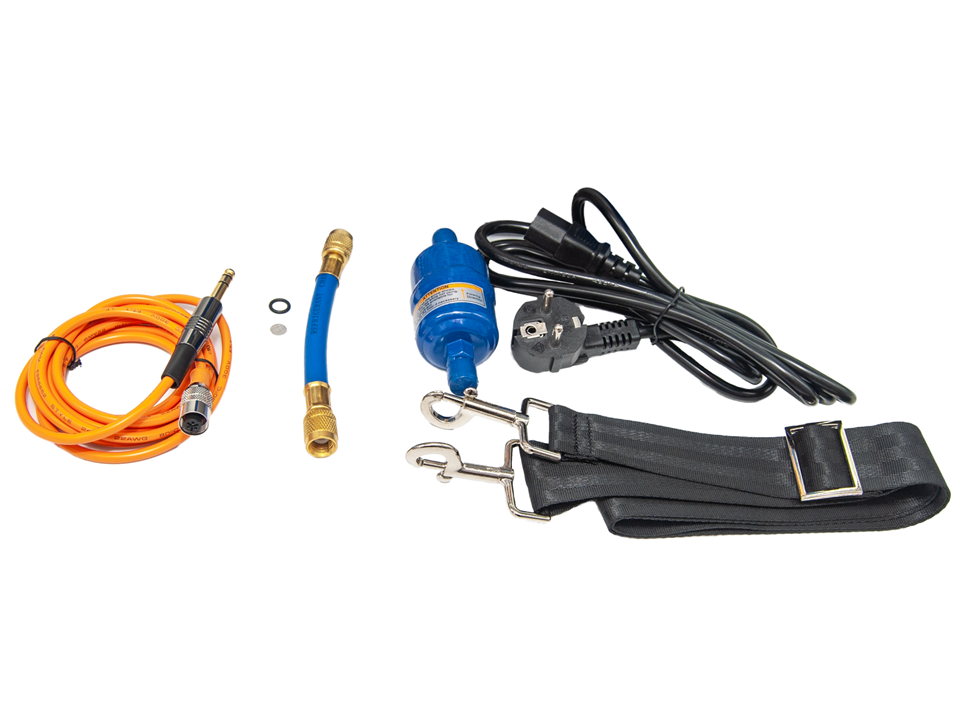

What's in the Box
- Value VRR24L-OS-R32 Recovery Unit x1
- Shoulder strap x1
- Dry filter x1
- 15cm hose (1/4" x 1/4") x1
- O.F.P. hose x1
Features & Benefits
-
One Key Operation
Simple one-button operation makes the VRR24L-OS-R32 easy and fast to use on site — minimising setup time and reducing the risk of operator error. -
Twin Cylinder Oil-Free Compressor
Oil-free twin cylinder piston compressor eliminates the risk of oil contamination in the refrigerant circuit, ensuring clean recovery with no cross-contamination between refrigerant and compressor oil. -
Built-In Oil Separator
Integrated oil separator removes any residual compressor oil from recovered refrigerant — protecting both the recovery cylinder and the environment from oil contamination. -
Self-Purge Function
Self-purge capability clears residual refrigerant from the internal hoses and compressor after recovery — essential when switching between different refrigerant types. -
High Pressure Protection — Auto Shut-off at 38.5 Bar
Automatic safety shut-off at 38.5 bar (558 PSI) protects the unit and operator from dangerous overpressure conditions during recovery operations. -
Wide Refrigerant Compatibility
Supports recovery of refrigerants across three categories — covering the most common HFC and HCFC refrigerants used in modern air conditioning and refrigeration systems including R32, R410A and R22. -
Fast Push/Pull Recovery Rate
High push/pull recovery rates up to 9.50 kg/min for Category V refrigerants significantly reduce recovery time on large commercial systems.
Applications
- Residential and commercial air conditioning refrigerant recovery
- Automotive air conditioning refrigerant recovery
- Refrigeration system maintenance and decommissioning
- R32 and R410A split system servicing
- General HVAC/R refrigerant management and recovery
Why Choose Value VRR24L-OS-R32?
- One key simple operation for fast deployment on site
- Twin cylinder oil-free compressor — no oil contamination risk
- Built-in oil separator for clean refrigerant recovery
- Self-purge function for safe refrigerant switching
- Auto safety shut-off at 38.5 bar for operator protection
- Wide compatibility across Category III, IV and V refrigerants
- Fast push/pull recovery rates up to 9.50 kg/min
- Trusted Value brand quality for professional HVAC technicians
