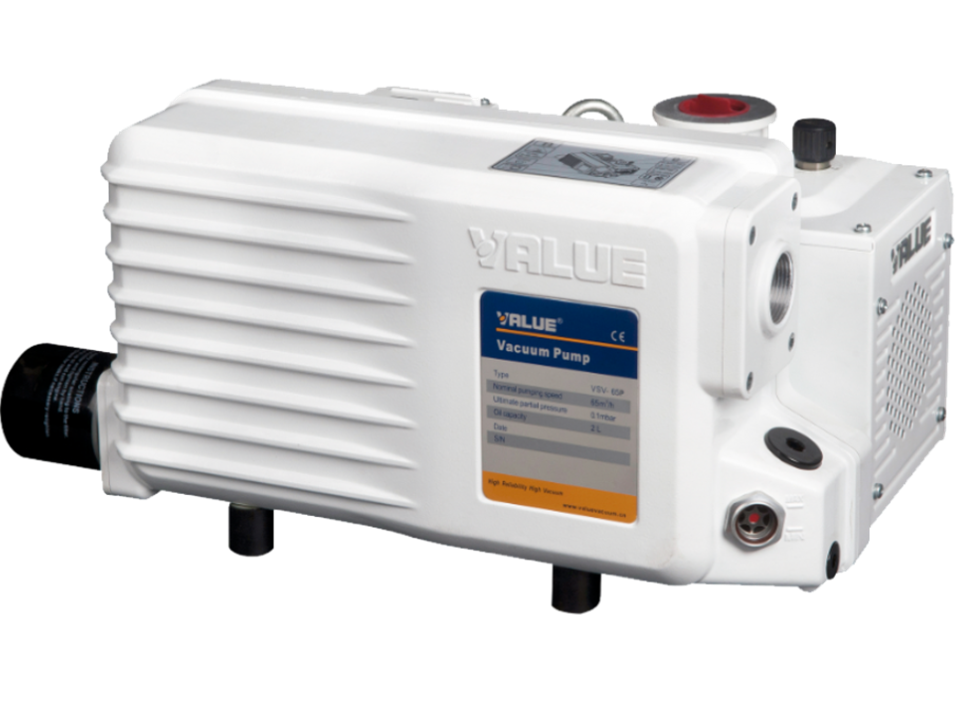

VALUE VSV-40 Single-Stage Vacuum Pump 40 m³/h 400V 3PH

Name: VALUE VSV-40 Single-Stage Vacuum Pump 40 m³/h 400V 3PH
Brand: VALUE
SKU: VSV-40
Price: 5500.00 MYR
Availability: InStock

SKU: VSV-40

RM5,500.00

Techno Tools & Equipment's provide same day delivery

Product Overview

The VALUE VSV-40 Single-Stage Vacuum Pump is designed to generate vacuum in closed systems for industrial, laboratory and commercial applications. With a displacement speed of 40 m³/h at 50 Hz, this oil-sealed vacuum pump is suitable for vacuum packaging, laboratory analysis, mechanical engineering, vacuum forming, printing and other industrial processes.

The VSV-40 features a gas ballast system that helps remove moisture and reduce the risk of oil contamination. Its non-return valve helps prevent air from entering the vacuum system and unwanted oil backflow after shutdown. An integrated oil mist filter reduces oil mist emissions, while the closed lubrication system returns collected oil to the pump.

With its high pumping capacity and practical oil-management features, the VSV-40 is designed for professional vacuum applications requiring dependable operation.

Key Features

40 m³/h Pumping Capacity: Suitable for industrial and laboratory vacuum applications.
Single-Stage Rotary Vane Design: Provides vacuum generation for a variety of general-purpose processes.
Gas Ballast Function: Helps remove moisture and reduce oil contamination during suitable operating conditions.
Non-Return Valve: Helps prevent air from entering the system and unwanted oil backflow after shutdown.
Integrated Oil Mist Filter: Reduces oil mist emissions during operation.
Closed Lubrication System: Returns collected oil from the filter to the pump by gravity.
Three-Phase Electrical Configuration: Designed for compatible 400 V, 50 Hz three-phase installations.
Industrial Applications: Suitable for vacuum packaging, laboratory analysis, mechanical engineering, vacuum forming, printing and related processes.

Technical Specifications

Specification	VALUE VSV-40
Brand	VALUE
Model	VSV-40
Pump Type	Single-stage oil-sealed rotary vane vacuum pump
Displacement Speed at 50 Hz	40 m³/h
Displacement Speed	667 L/min / 23.5 CFM
Ultimate Pressure Without Gas Ballast	≤ 0.1 mbar
Ultimate Pressure with Gas Ballast I	≤ 0.5 mbar
Ultimate Pressure with Gas Ballast II	≤ 1.5 mbar
Water Vapour Tolerance with Gas Ballast I	15 mbar
Water Vapour Tolerance with Gas Ballast II	30 mbar
Power Supply	400 V / 50 Hz / 3-phase
Motor Power	1.1 kW*
Motor Speed	1,440 rpm
Inlet Connection	G 1 1/4"
Exhaust Connection	G 1 1/4"
Oil Capacity	2.0 L*
Operating Ambient Temperature	10–40°C
Noise Level	≤59 dB*
Dimensions (L × W × H)	555 × 304 × 268 mm*
Net Weight	39.2 kg
Packaging	Wooden pallet

The specifications above primarily follow VALUE's official English product page. The official Polish page lists some different values, including motor power, oil capacity, noise level and dimensions. Confirm these specifications against the exact supplied 400 V three-phase version before publishing.

Package Contents

The official Polish product page identifies wooden-pallet packaging. The complete accessory inventory is not specified.

VALUE VSV-40 single-stage vacuum pump
Wooden pallet packaging
Vacuum pump oil: confirm whether included
Power cable and electrical accessories: confirm with supplier
Connection adapters: confirm with supplier
Operating and safety instructions: confirm with supplier

Only list accessories as included if they are confirmed in the actual shipment.

Warranty Term

Warranty: To be confirmed with the authorised distributor.

Please verify the warranty duration, coverage and exclusions with your supplier before publishing. A specific warranty period is not stated because it has not been confirmed in the official product information.

Why Choose VALUE?

VALUE develops vacuum equipment and HVACR service tools for professional applications. The VSV-40 combines a 40 m³/h pumping capacity with gas ballast functionality, integrated oil mist filtration and a non-return valve.

Its closed lubrication system helps return collected oil to the pump, while the oil mist filter reduces emissions during operation. The three-phase electrical configuration makes it suitable for compatible industrial installations.

For businesses requiring reliable vacuum generation for packaging, laboratory work, mechanical engineering or vacuum forming, the VALUE VSV-40 offers a practical combination of pumping capacity and essential oil-management features.
