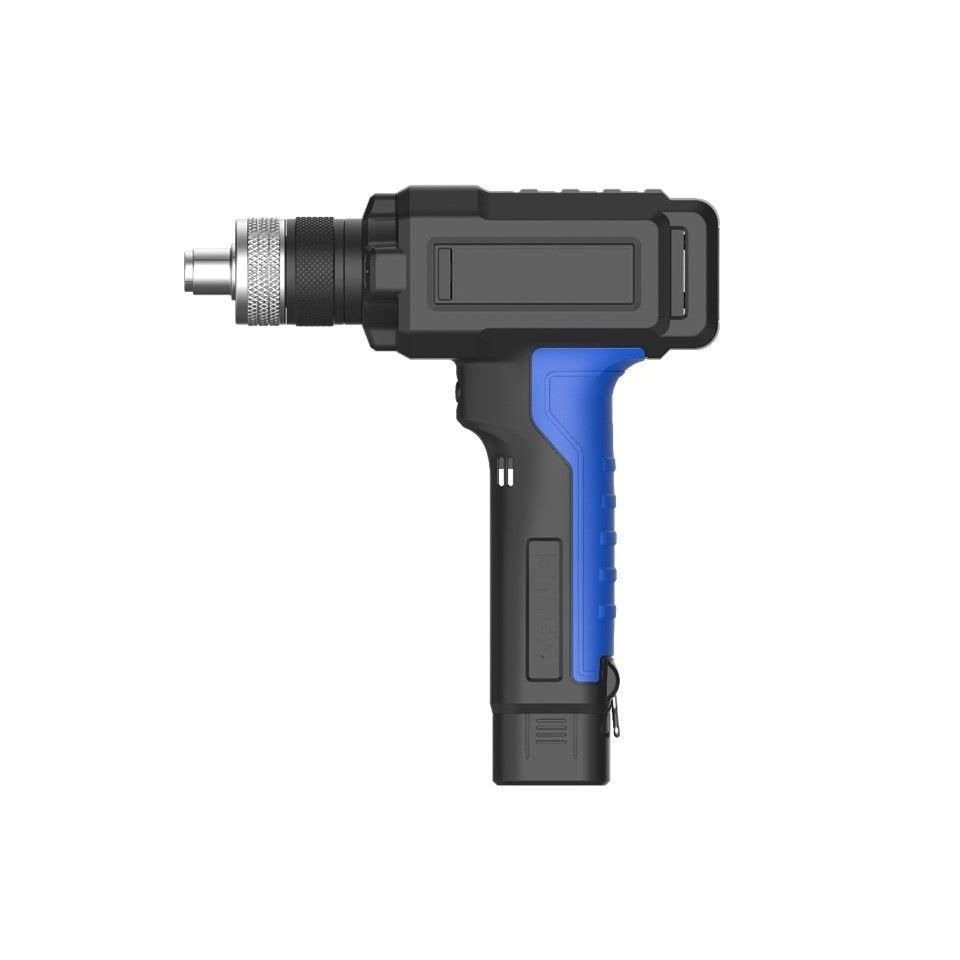

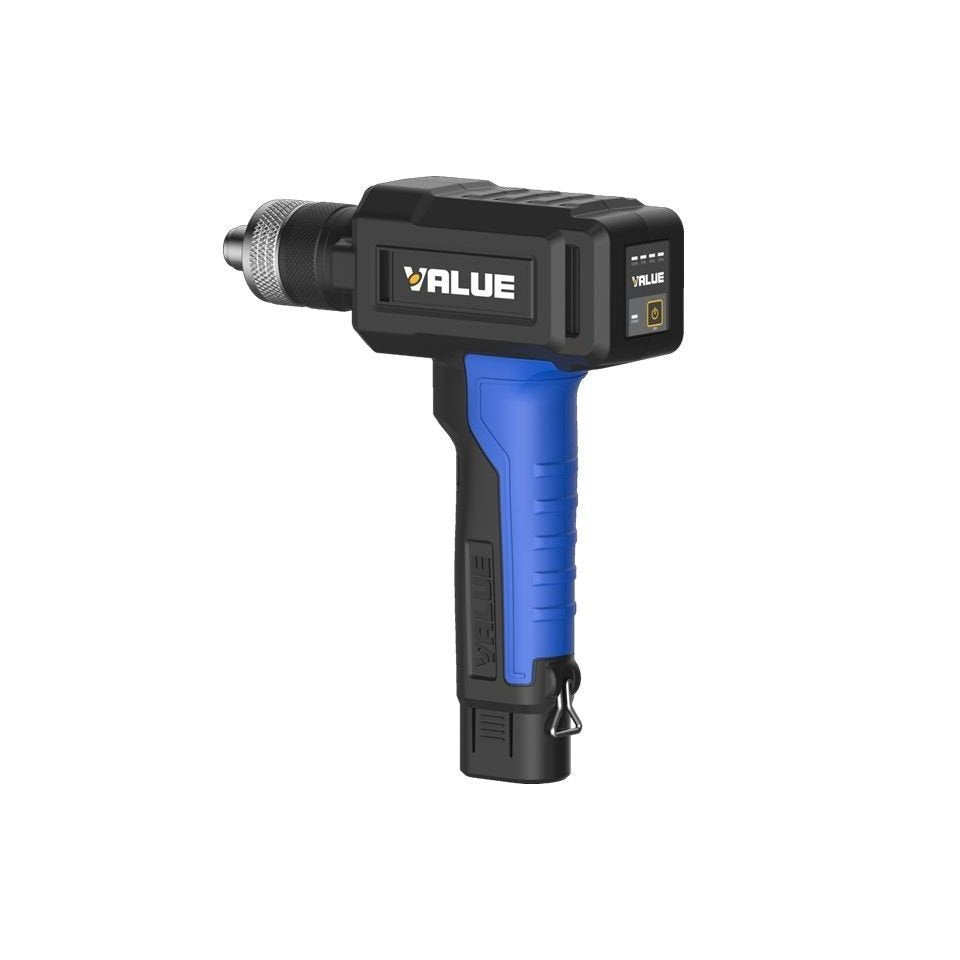

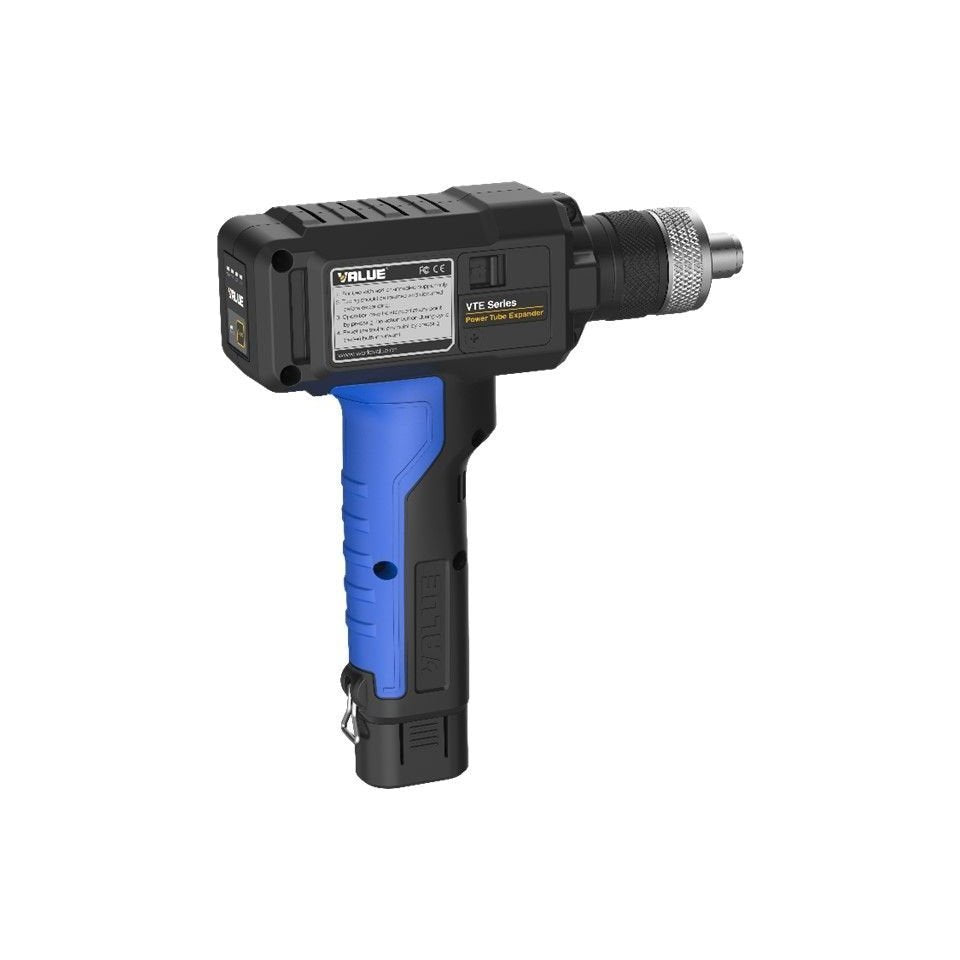

VALUE VTE-29D Battery Powered Tube Expander

The VALUE Cordless Expander makes pipe expanding easy, even in hard-to-reach areas.

Main features of VTE-29D Battery Powered Tube Expander:

Fast and straightforward operation

Single-button control

Automatic clutch

Quick-connect heads

Suitable for large pipe diameters

Battery level indicator

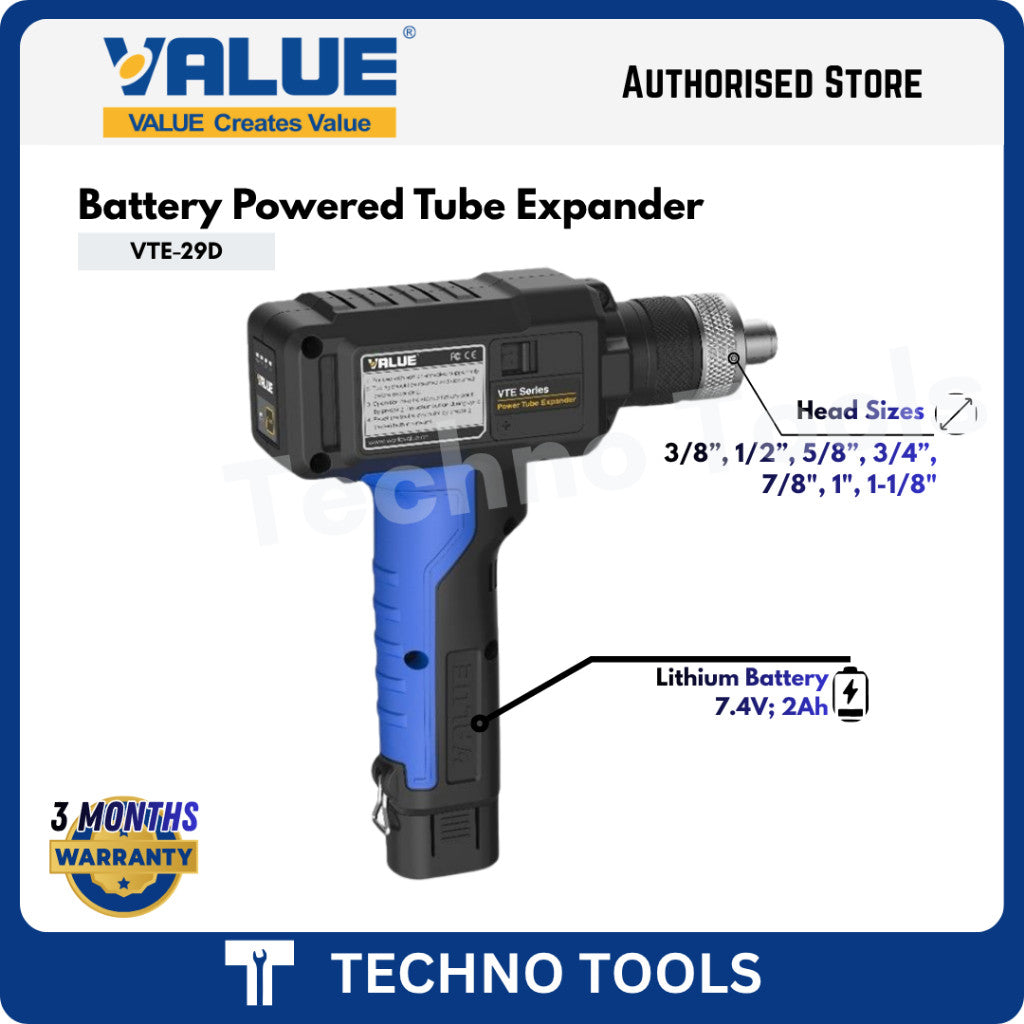

Head sizes-

3/8”, 1/2”, 5/8”, 3/4”, 7/8", 1", 1-1/8"

optional: 1-1/4", 1-3/8", 1-1/2", 1-5/8"

optional: 10/12/15/16/18/22/28/35/42 mm

Specifications of VTE-29D Battery Powered Tube Expander:

Operating temperature 5°C - 40°C

Charging time about 35 minutes

Power supply of the charger AC 100-240 V (50-60Hz) 50W

Dimensions 209 x 67 x 249 mm

Weight 1.5 kg

Expand time 10 seconds

Number of expand under full charged ~ 100 (rurka 3/4")

Speed 120 rpm

Power supply lithium battery 7,4V; 2Ah; 14,8Wh

Application soft copper pipes

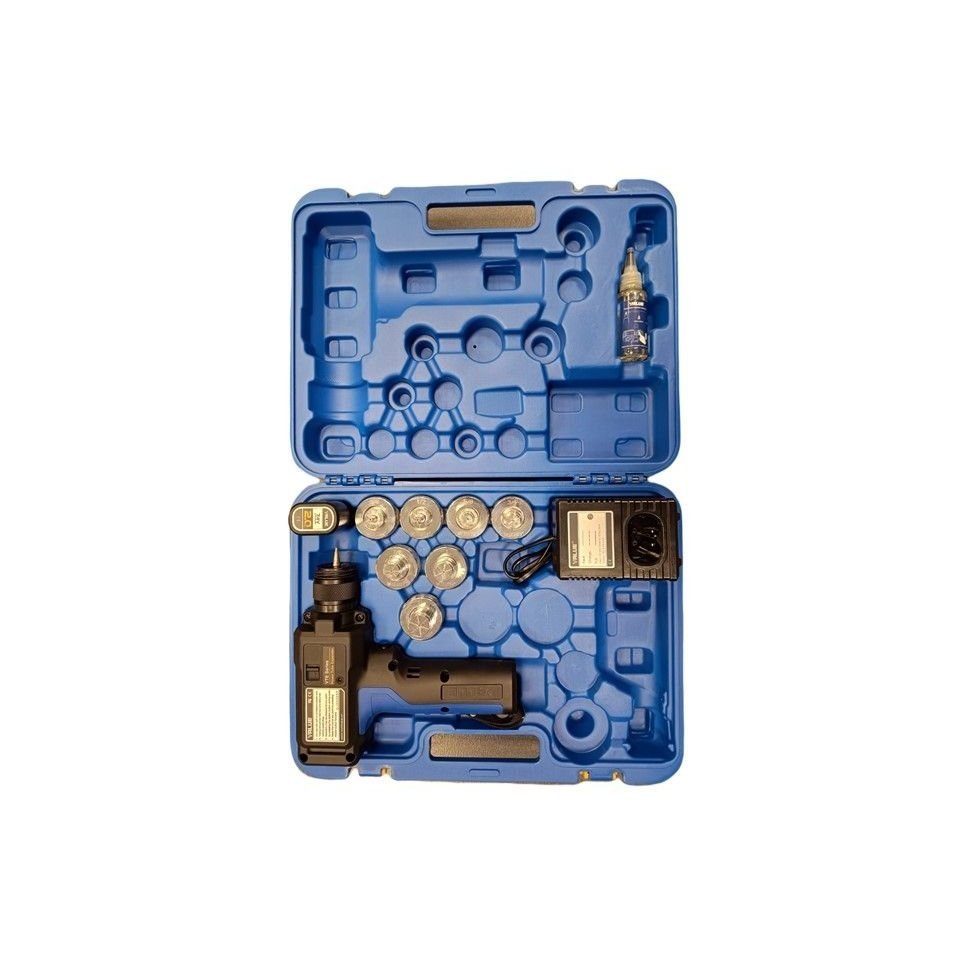

Included: expander, battery, charger, cutter VTC-32,  deburring tool VTT-5

heads: 3/8”, 1/2”, 5/8”, 3/4”, 7/8", 1", 1-1/8"

Packaging plastic case

FAQs

1. What is it used for?

Expanding copper pipes for HVAC installations, ensuring tight and leak-free joints.

2. How long does expansion take?

Each expansion completes in about 10 seconds.

3. How many expansions per charge?

Up to 220 expansions on a full charge.

4. Is it suitable for hard copper?

Designed for soft copper pipes; not recommended for rigid hard copper.
