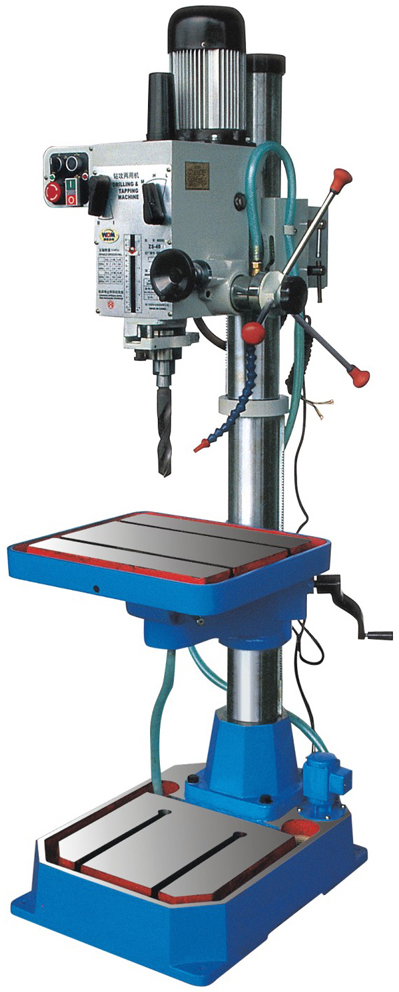

XEST LING GEAR DRILLING & TAPPING 40MM/M32, 750W, ZS-40P
Regular price
RM7,560.00 MYR
Couldn't load pickup availability
Got questions?
Feel free to WhatsApp us
Product Brochure
Click Here: Brochure in PDF
Product Datasheet / User Manual
Click Here: Datasheet in PDF
Model: ZS-40P
Gear head drilling & tapping machine.
Features
- Gear driven: Accurate and powerful.
- 6 variable speed.
- The head is rotatable for 360°.
- Tiltable ±45°.
Specifications
| Max. Drilling Capacity | Cast Iron: 40mm Steel: 32mm |
| Max. Tapping Capacity | Cast Iron: M24 Steel: M22 |
| Diameter of Column | 115 mm |
| Spindle Travel | 120 mm |
| Distance Spindle Axis to Column Generating Line |
272.5 mm |
| Max. Distance Spindle Nose to Table |
N/A |
| Max. Distance Spindle Nose to Base | 800 mm |
| Spindle Taper | MT4 |
| Spindle Speeds Range | 95, 170, 280, 540, 960, 1600rpm |
| Spindle Speeds | 6 |
| Dimensions of Worktable Surface | N/A |
| Dimensions of Base |
690mm x 520mm |
| Overall Height | 1450mm |
| Motor | 750 W |
| Volts | 380~415V, Three Phase |
| Weight | 270 kg |
- Model: ZS-40P
- Shipping Weight: 270kg
- Manufactured by: XEST LING
===========================================
