Z15W‑16P Stainless Steel Gate Valves

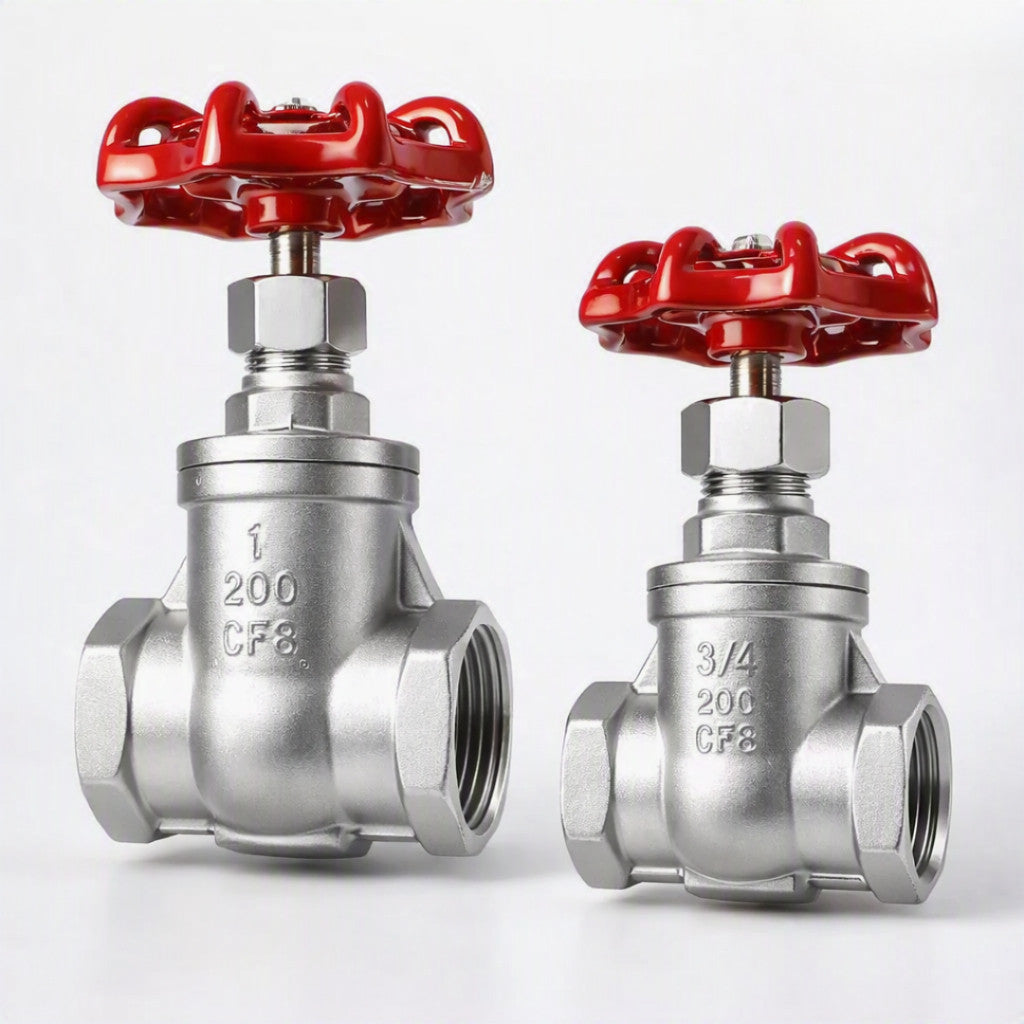

The Z15W‑16P Stainless Steel Gate Valve is a wedge‑type manual valve with internal threads, designed for low‑resistance fluid control. Its stainless steel body ensures corrosion resistance, while the handwheel allows easy opening and closing. It is widely applied in domestic water supply, industrial piping, HVAC, and chemical systems.
Features
304 stainless steel body → Strong corrosion resistance, long service life.
Female threaded connection → Easy installation into threaded pipelines (DN15–DN100).
Low fluid resistance → Minimal turbulence and pressure drop.
Reliable sealing → Prevents leakage, suitable for frequent operation.
Wide media compatibility → Handles water, gas, oil, and other non‑corrosive fluids.
Temperature range → Operates safely from ‑20 ℃ up to 180–300 ℃ depending on variant.
Compact design → Short structural length, lightweight, easy maintenance.
Specifications
Material: 304 stainless steel (CF8 grade)
Nominal pressure: PN16 (≤1.6 MPa / 16 bar)
Connection type: Internal thread (ZG/PT/Rc)
Applicable media: Water, gas, oil, non‑corrosive fluids
Operating temperature: ‑20 ℃ to 180 ℃ (some versions up to 300 ℃)
Sizes available:
Z15W‑16P-DN15 (½") → L 52 mm, H 96 mm, 800g
Z15W‑16P-DN20 (¾") → L 57 mm, H 102 mm, 1kg
Z15W‑16P-DN25 (1") → L 62 mm, H 114 mm, 1.5kg
Z15W‑16P-DN32 (1¼") → L 70 mm, H 132 mm, 2.4kg
Z15W‑16P-DN40 (1½") → L 75 mm, H 145 mm, 3.2kg
Z15W‑16P-DN50 (2") → L 83 mm, H 170 mm, 5kg
Frequently Asked Questions
What is the difference between pressure reducing valve and a gate valve?
A gate valve is for manual on/off flow control, while this pressure reducing valve automatically lowers and stabilizes downstream pressure to protect equipment.
What is the purpose of this valve?
It is a manual shut‑off valve used to start, stop, or regulate fluid flow in pipelines.
What material is it made of?
The body is made of 304 stainless steel (CF8 grade), offering strong corrosion resistance.
What is the pressure rating?
PN16 (≤1.6 MPa / 16 bar), suitable for domestic and industrial pipelines.
Can it be used for drinking water?
Yes, stainless steel construction makes it safe for potable water systems.
What media can it handle?
Water, gas, oil, and other non‑corrosive fluids.
