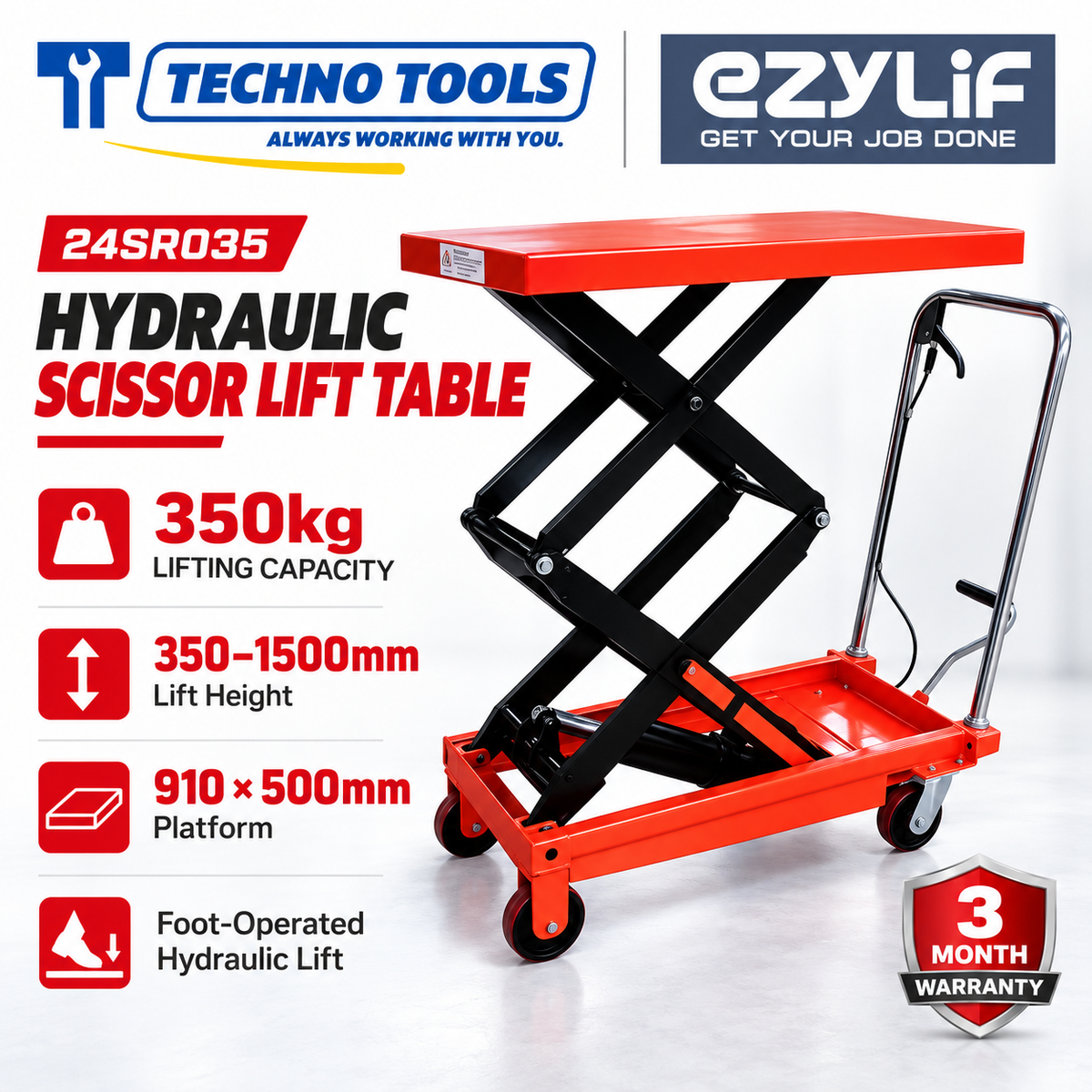

EZYLIF 24SR035 350kg Hydraulic Scissor Lift Table

The EZYLIF 24SR035 350kg hydraulic scissor lift table positions materials at working heights from 350mm to 1500mm. Its 910 × 500mm platform supports parts, cartons and other suitable loads for workshop, packing and production tasks. A foot-operated hydraulic pedal raises the table, while a hand-operated release lever lowers it.

Key Features

• 350kg lifting capacity: for supported loads within the equipment's rated limit.
• 1500mm maximum lift height: position materials for elevated handling and assembly tasks.
• Manual hydraulic operation: foot-pedal lifting without an electrical supply.
• Hand-operated lowering lever: lower the platform from the handle control.
• Steel construction: a sturdy platform for general workshop material handling.
• Heavy-duty castors with locking facility: move on suitable floors and secure the table when stationary.

Technical Specifications

Available Selection

Compare the three EZYLIF hydraulic lift tables below. Select a model to view its listing.

Specifications follow the accompanying EZYLIF chart. The 24SR050 and 24SR100 selections are shown as chart models 24SR050N and 24SR100N; the 800kg listing uses SKU 24SR100.

Applications

• Workshop assembly: bring supported components to a convenient working height.
• Packing and warehouse tasks: position cartons and materials for handling.
• Production and maintenance: support suitable parts during preparation or inspection.

Which EZYLIF Lift Table Should You Choose?

Choose the 24SR035 when your load is within 350kg and you need a platform height up to 1500mm. For heavier loads, consider the EZYLIF 24SR100 800kg hydraulic lift table, which has a lower maximum listed height of 1000mm. Check load weight, footprint, working height and access clearance before ordering.

Package Contents

• 1 × EZYLIF 24SR035 hydraulic table lift.

Order from Techno Tools Malaysia

Contact Techno Tools & Equipment for pricing, availability and delivery arrangements. This unit weighs 105kg; confirm freight charges and unloading access before placing your order. Call +603-4270 2333 or email sales@techno.com.my.

Warranty

Includes a 3-month warranty, subject to Techno Tools' warranty policy and claim conditions.

Frequently Asked Questions

What is the capacity of the EZYLIF 24SR035?

The rated lifting capacity is 350kg. Follow the supplied equipment's rating plate and operating instructions.

How high does the table lift?

The table height ranges from 350mm to 1500mm.

Does it require electricity?

No. It uses a foot-operated hydraulic lifting pedal and a hand-operated lowering lever.

How large is the platform?

The platform measures 910 × 500 × 50mm. Check that your load can be supported securely within the platform area.

Can I use it to lift people?

This listing is for material handling. Do not use it as a personnel lift.

How is delivery arranged?

Contact Techno Tools with your delivery postcode and unloading details for freight arrangements and availability.
