FLUKE 62 MAX+ Infrared Thermometer | -30°C to 650°C
Couldn't load pickup availability

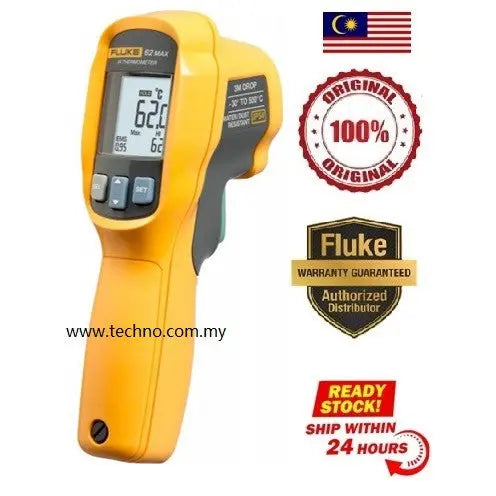

Fluke 62 MAX+ Infrared Thermometer — Dual Laser | -30°C to 650°C | IP54 | 3-Metre Drop Tested
The Fluke 62 MAX+ Handheld Infrared Laser Thermometer delivers the accuracy you need in an extremely rugged, field-ready package. Simply point, shoot and read temperatures on transformers, motors, pumps, panels, breakers, compressors, ducts, steam lines, valves and vents. With dual lasers, a 12:1 distance-to-spot ratio and a 3-metre drop test rating, the Fluke 62 MAX+ is built to perform accurately in the toughest industrial and field environments.
Specifications
| Specification | Details |
|---|---|
| Model | Fluke 62 MAX+ |
| Temperature Range | -30°C to 650°C (-22°F to 1202°F) |
| Accuracy | ±1.0°C or ±1.0% of reading, whichever is greater |
| -10°C to 0°C: ±2.0°C | |
| -30°C to -10°C: ±3.0°C | |
| Response Time | <500ms (95% of reading) |
| Spectral Response | 8 to 14 microns |
| Emissivity | 0.10 to 1.00 |
| Optical Resolution | 12:1 (calculated at 90% energy) |
| Display Resolution | 0.1°C (0.2°F) |
| Repeatability | ±0.5% or ±0.5°C (1°F), whichever is greater |
| Power | 1 AA battery |
| Battery Life | 8 hours with laser and backlight on |
| Weight | 255g (8.99oz) |
| Size | 175 x 85 x 75mm (6.88 x 3.34 x 2.95in) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F), without battery |
| Operating Humidity | 10% to 90% RH non-condensing at 30°C |
| Operating Altitude | 2000m above mean sea level |
| IP Rating | IP54 per IEC 60529 |
| Drop Test | 3 metres |
| Vibration & Shock | IEC 68-2-6 2.5g, 10-200Hz; IEC 68-2-27, 50g, 11ms |
| Safety | IEC 61010-1 Pollution Degree 2; IEC 60825-1 Class 2 Laser |
| EMC | IEC 61326-1 Portable Electromagnetic Equipment |
Features & Benefits
-
Dual Laser Precision Targeting
Dual laser design provides more accurate, repeatable targeting of the exact measurement surface — reducing measurement error from misaligned aiming. -
Wide -30°C to 650°C Range
Covers a broad temperature range from cold storage checks to high-temperature industrial equipment monitoring in a single instrument. -
12:1 Distance-to-Spot Ratio
High 12:1 optical resolution allows accurate measurement of smaller targets from greater distances — ideal for hot, hazardous or hard-to-reach surfaces. -
3-Metre Drop Test Rated
Survives a 3-metre drop — reassuring for technicians working from ladders or elevated platforms in the field. -
IP54 Dust & Water Resistance
IP54-rated housing withstands dust and moisture ingress, delivering reliable performance in dirty, dusty and wet industrial environments, rain or shine. -
Min/Max/Avg/Dif Display
Displays minimum, maximum, average and differential readings — supporting efficient troubleshooting, trend monitoring and comparative temperature analysis. -
High/Low Alarms
Configurable high and low temperature alarms enable rapid identification of measurements outside acceptable limits during routine inspections. -
Large Backlit Display
Easy-to-read backlit display ensures clear visibility even in dark or low-light working environments such as plant rooms and electrical panels. -
Lightweight & Belt-Clip Ready
Compact, lightweight design clips comfortably to a tool belt or belt loop, and fits easily in a toolbox for convenient daily carry. -
Single AA Battery — 8 Hour Life
Powered by a standard single AA battery with up to 8 hours of operation with laser and backlight active.
What's in the Box
- Fluke 62 MAX+ Dual Laser Infrared Thermometer
- AA Battery
- Quick Reference Guide
Applications
- Electrical panel and breaker hotspot detection
- Motor, pump and compressor temperature checks
- HVAC duct, vent and steam line temperature testing
- Transformer and switchgear thermal inspection
- Valve and pipe surface temperature monitoring
- General industrial preventive maintenance
Fluke 59 MAX vs 59 MAX+ vs 62 MAX vs 62 MAX+ comparison
| Specification | Fluke 59 MAX | Fluke 59 MAX+ | Fluke 62 MAX | Fluke 62 MAX+ (this model) |
|---|---|---|---|---|
| Temperature range | -30 °C to 350 °C | -30 °C to 500 °C | -30 °C to 500 °C | -30 °C to 650 °C |
| Accuracy (at 0 °C and above) | ±2.0 °C or ±2.0% | ±1.5 °C or ±1.5% | ±1.5 °C or ±1.5% | ±1.0 °C or ±1.0% |
| Distance-to-spot ratio | 8:1 | 10:1 | 10:1 | 12:1 |
| Laser targeting | Single | Single | Single | Dual |
| Ingress protection | IP40 | IP40 | IP54 | IP54 |
| Drop test | 1 m | 1 m | 3 m | 3 m |
| Battery life (laser and backlight on) | 12 hours | 12 hours | 10 hours | 8 hours |
| Best for | Basic spot checks at the lowest cost | Wider range and better accuracy at a low price | Rugged IP54 field use | Highest range and accuracy, dual laser, rugged |
Why Choose Fluke 62 MAX+?
- Dual laser for more accurate, repeatable targeting
- Wide -30°C to 650°C measurement range
- High 12:1 distance-to-spot ratio for remote targeting
- 3-metre drop test rated for field durability
- IP54 rated for dust and moisture resistance
- Min/Max/Avg/Dif display for detailed analysis
- Hi/Lo alarms for fast anomaly detection
| Warranty period | 3 Year Warranty |
|---|---|
| Coverage | Free from defects in material and workmanship for 3 years from the date of purchase. Accessories supplied with the product, such as test leads and probes, are covered for 1 year from the date of purchase. |
| Not covered | Fuses, disposable batteries and manuals; damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. |
| Warranty void if | The product has been used outside its specifications, altered, or repaired by a party not authorised by Fluke. |
Contact Techno Tools with your proof of purchase. The warranty applies to the original purchaser only.
