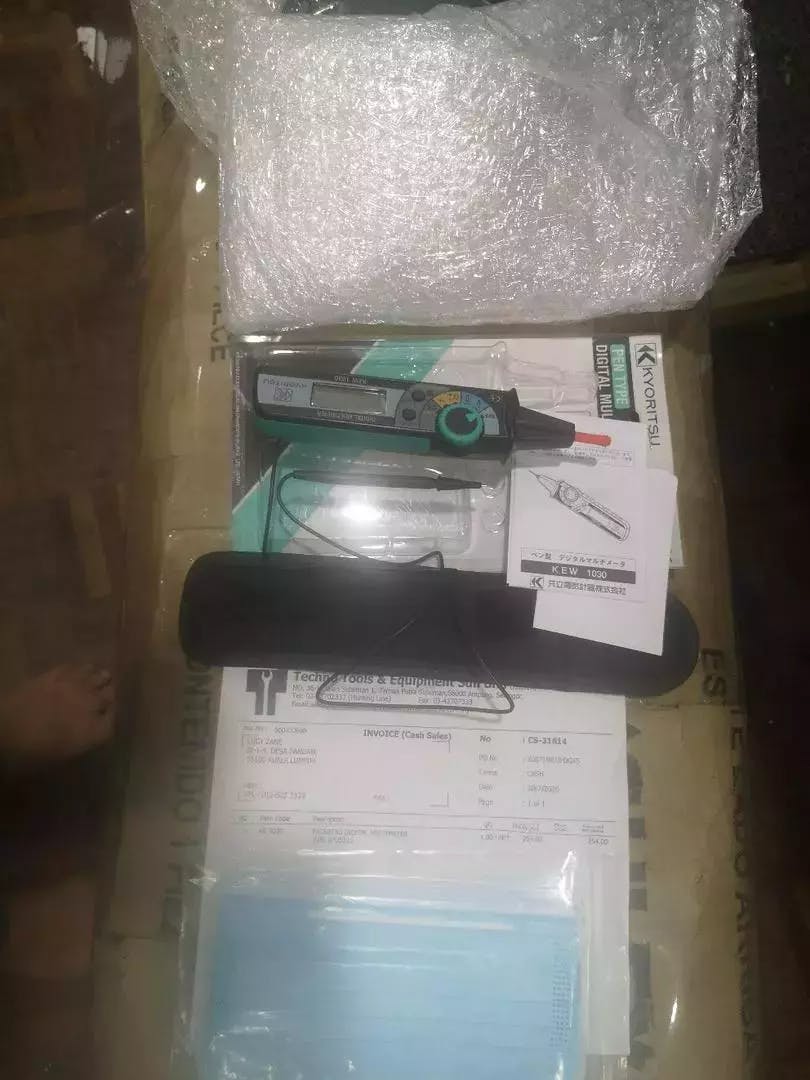

Model: KEW1030

Compact and Lightweight

Compact in Size, Light in Weight and Simple in Use.

Key Features

• Double moulding provides comfortable and good feeling in hand.
• Penlight illuminates brightly the point to be measured, even in a dark place.
• Backlight LCD is highly visible, even in darkness.
• Unique wrapping mechanism for test lead in the rear side compartment.
• Unique protection mechanism for the test prod for safety.
• All ranges including Ohm range are protected against overload voltage of 600V.

Specifications

AC Voltage

4/40/400/600V (4 Range auto)
|±1.3%rdg|±5dgt (4/40V) (50/60Hz)
|±1.6%rdg|±5dgt (400/600V) (50/60Hz)

DC Voltage

400m/4/40/400/600V (5 Range auto)
|±0.8%rdg|±5dgt(400mV~400V)
|±1.0%rdg|±5dgt(600V)

Resistance (Ω)

400/4k/40k/400k/4M/40MΩ (6 Range auto)
|±1.0%rdg|±5dgt (400Ω~4MΩ)
|±2.5%rdg|±5dgt (40MΩ)

Diode Check

Test voltage approx. 0.3~1.5V

Continuity Check

Buzzer sounds when resistance is 120Ω or less.

Capacitance

50n/500n/5µ/50µ/100µF (5 Range auto)
|±3.5%rdg|±10dgt (50nF)
|±3.5%rdg|±5dgt (500n~50µF)
|±4.5%rdg|±5dgt (100µF)

Frequency

5/50/500/5k/50k/200kHz
|±0.1%rdg|±5dgt (Measurable input: 1.5Vrms or more)

Duty

0.1~99.9%
|±2.5%rdg|±5dgt (Pulse width / Pulse cycle)

Data Hold

The measured value can be held by pressing the Data hold button

Battery Voltage Warning

When the battery voltage drops to 2.4V|±0.2V or less

Auto Power-Off

Built-in

Standards and Certifications

IEC 61010-1: 2001 CAT.III 600V
IEC 61010-031
IEC 61326-1

Power Source

Button type battery LR44 (SR44)1.5V × 2

Dimensions

190(L) × 39(W) × 31(D)mm

Weight

Approx. 100g (including batteries)

Accessories

Carrying case, LR44 (1.5V) × 2, Instruction manual
