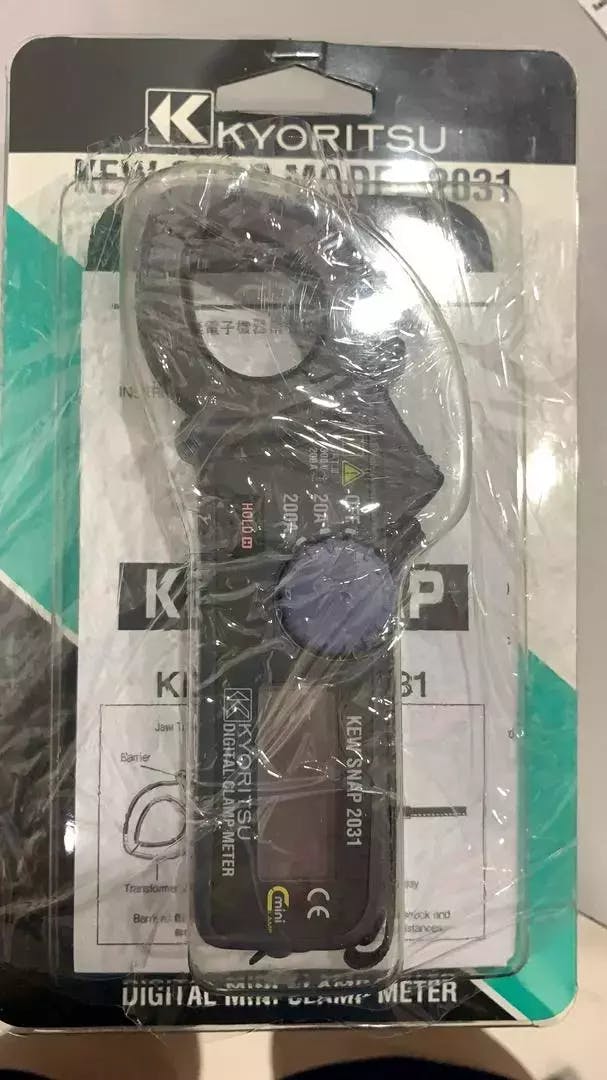

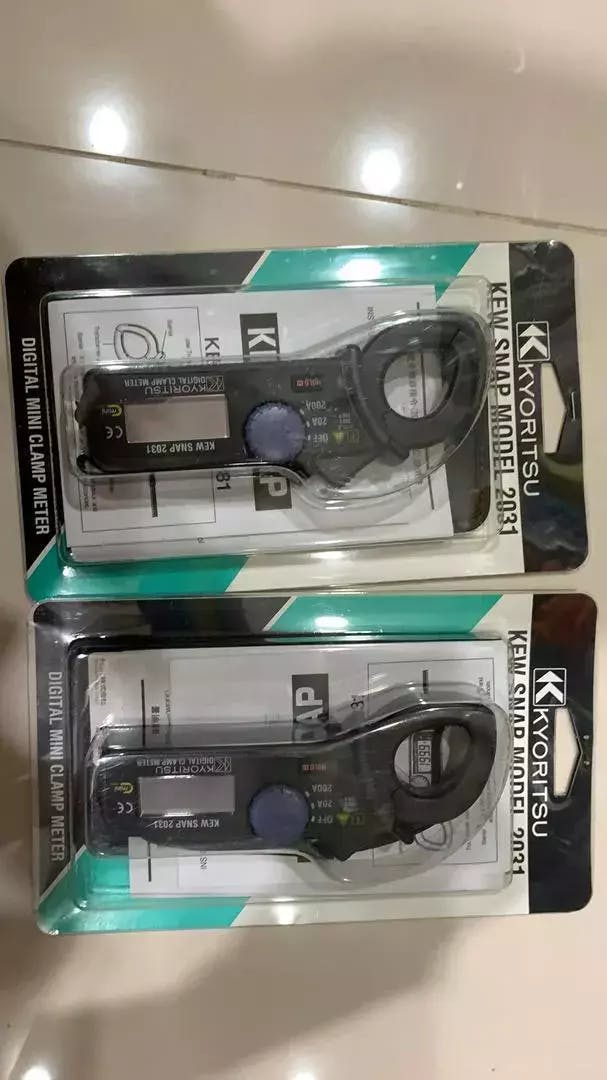

MODEL 2031 AC Clamp Meter

The MODEL 2031 AC Clamp Meter is a compact and lightweight tool capable of measuring large AC currents up to 200A. Featuring φ24mm tear drop-shaped jaws and a minimum resolution of 0.01A, it ensures precise measurements in both standard and tight spaces. With a wide frequency response range of 40Hz to 1kHz, it is ideal for professionals who need a reliable, easy-to-use clamp meter.

Key Features:

  • High Current Measurement: Measures AC currents up to 200A with high accuracy.
  • Compact Design: Lightweight and easy to handle, perfect for fieldwork.
  • Precise Measurement: Minimum resolution of 0.01A for accurate readings.
  • Thin Clamp Jaws: φ24mm tear drop-shaped jaws allow clamping in tight spaces.
  • Wide Frequency Response: Measures currents with a frequency response of 40Hz - 1kHz.

Specifications Table

Function Range Accuracy
AC Current (AC A) 20A ±2%rdg ±5dgt (50Hz - 1kHz)
AC Current (AC A) 200A ±2%rdg ±5dgt (50/60Hz); ±3%rdg ±10dgt (40Hz - 1kHz)
Conductor Size φ24mm max. —
Frequency Response 40Hz - 1kHz —

General Specifications

Feature Details
Safety Standard IEC 61010-1 CAT III 300V
Power Source 2 × LR44 (1.5V)
Dimensions 147 mm × 58.5 mm × 26 mm
Weight Approx. 100g
Accessories Included Carrying case (9090), 2 × LR44 batteries, instruction manual
Warranty: 1 Year
Made In: Thailand
