KYORITSU

KYORITSU 2000A Digital Multimeter ≤600V with AC/DC Clamp Sensor (KEWMATE 2000A)

In stock - 6 items available
SKU: KE 2000A
RM711.00 MYR
-18% RM870.00 MYR RM711.00 MYR

Got questions?

Feel free to WhatsApp us

Product Brochure

Click Here: Brochure in PDF

Product Datasheet / User Manual

Click Here: Datasheet in PDF

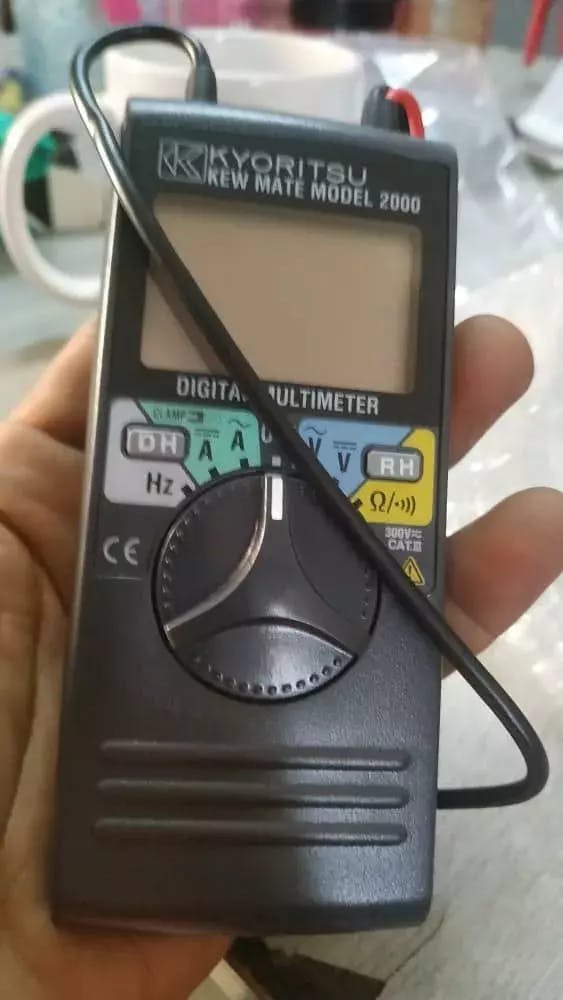

KEW MATE 2000A Digital Multimeter with AC/DC Clamp Sensor

The KEW MATE 2000A Digital Multimeter is a compact, heavy-duty multimeter equipped with an AC/DC clamp sensor capable of measuring up to 60A. Designed for portability and durability, it features robust cable protection, a test probe that can be fixed to the holster, and a slim jaw for easy access to wires even in tight spaces. This versatile tool is ideal for professionals who require accurate current and voltage measurements in a variety of environments.

Video:


Key Features:

  • AC/DC Current Measurement: Measures both AC and DC currents up to 60A with the open clamp sensor.
  • Enhanced Cable Protection: Increased cable strength and robust protection ensure durability and safety.
  • Compact and Portable: Pocket-size design makes it easy to carry and store without sacrificing performance.
  • Test Probe Holster: Test probe can be securely fixed to the holster for convenience and safe storage.
  • Safety Features: Equipped with a test lead cap to protect against short circuit accidents.
  • Versatile Clamp Jaws: The open jaws are slim, making them perfect for clamping wires even in tight spaces.

Specifications Table

Function Range Accuracy
DC Voltage (DCV) 340.0mV / 3.400V / 34.00V / 340.0V / 600V ±1.5%rdg ±4dgt
AC Voltage (ACV) 3.400V / 34.00V / 340.0V / 600V ±1.5%rdg ±5dgt (50 - 400Hz)
DC Current (DCA) 60.0A ±2%rdg ±5dgt
AC Current (ACA) 60.0A ±2%rdg ±5dgt (50/60Hz)
Resistance (Ω) 340.0Ω / 3.400kΩ / 34.00kΩ / 340.0kΩ / 3.400MΩ / 34.00MΩ ±1%rdg ±3dgt (0 - 340kΩ); ±5%rdg ±5dgt (3.4MΩ); ±15%rdg ±5dgt (34MΩ)
Continuity Buzzer Buzzer sounds below 30 ±10Ω Works only on 340Ω range
Frequency AC A: 3.4Hz - 10kHz; AC V: 3.4Hz - 300kHz ±0.1%rdg ±1dgt (Current > 15A, Voltage > 30V)
Conductor Size Ø6mm max. —

General Specifications

Feature Details
Applicable Standards IEC 61010-1 CAT III 300V / CAT II 600V, Pollution Degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581 (RoHS)
Power Source 2 × R03 (AAA) (1.5V)
Dimensions 128 mm × 87 mm × 24 mm
Weight Approx. 210g (including batteries)
Accessories Included Test leads (R03), instruction manual
Optional Accessories Soft carrying case (9107)
Warranty: 1 Year

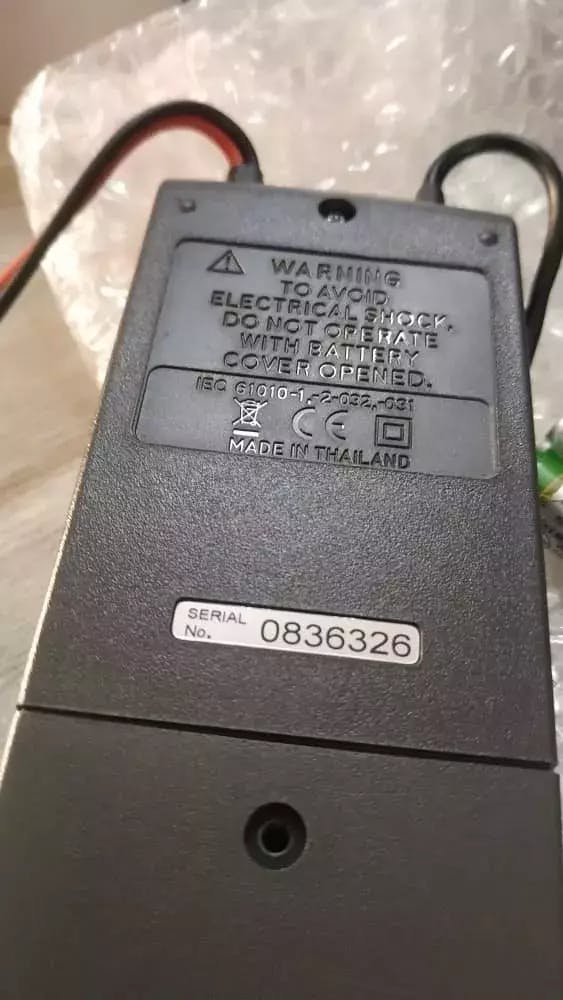

Made In: Thailand
