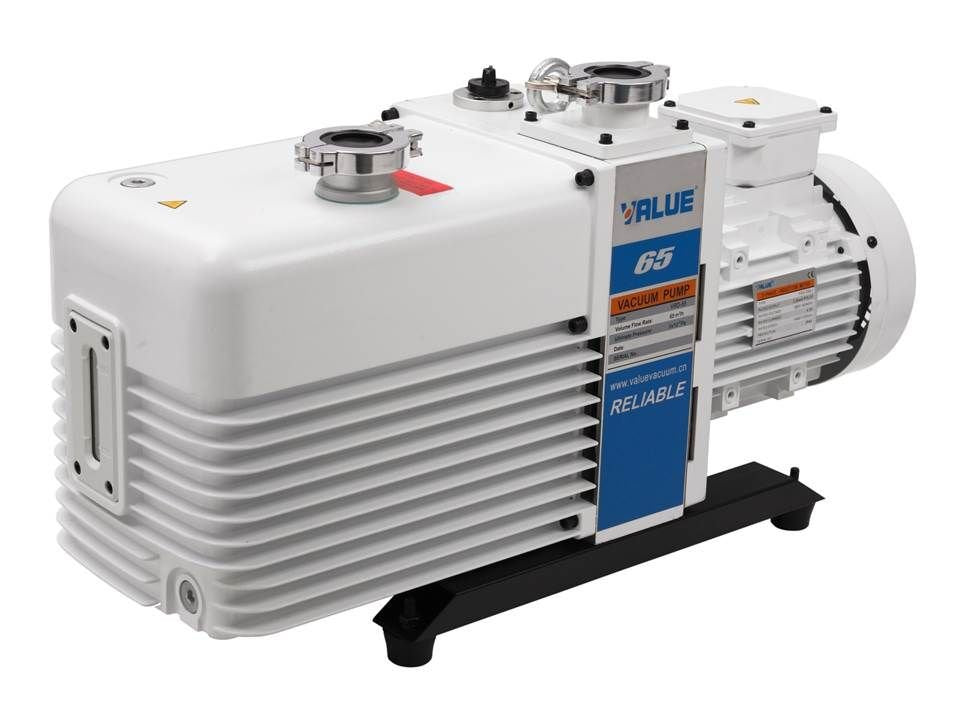

VALUE VRD-65 Dual-Stage Vacuum Pump 65m³/h 50Hz 3PH

Name: VALUE VRD-65 Dual-Stage Vacuum Pump 65m³/h 50Hz 3PH
Brand: VALUE
SKU: VRD-65
Price: 17500.00 MYR
Availability: InStock

SKU: VRD-65

RM17,500.00

Techno Tools & Equipment's provide same day delivery

Overview Summary

The VALUE VRD-65 Dual-Stage Vacuum Pump is an oil-sealed rotary vane vacuum pump engineered for industrial and professional vacuum applications. With a rated pumping speed of 65m³/h at 50Hz and a three-phase power supply, it delivers high-capacity vacuum performance for refrigeration systems, vacuum coating, freeze drying, laboratory instrumentation and industrial processes.

Featuring an integrated pump structure, forced lubrication system and adjustable gas ballast valve, the VRD-65 is designed to support stable operation and effective handling of condensable vapours. Its double anti-suck-back protection helps prevent oil from flowing back into the connected vacuum system after shutdown, helping maintain system cleanliness and operational reliability.

Key Features

Dual-Stage Rotary Vane Design: Provides reliable vacuum generation for industrial and professional applications.
High Pumping Capacity: Delivers a rated displacement speed of 65m³/h (18 L/s) at 50Hz.
Three-Phase Power Supply: Designed for compatible three-phase electrical installations.
Forced Lubrication System: Built-in gear pump and constant-pressure oil supply mechanism support stable operation.
Adjustable Gas Ballast Valve: Helps manage condensable vapours during suitable vacuum processes.
Double Anti-Suck-Back Protection: Helps prevent oil backflow into the vacuum system after shutdown.
Air-Cooled Construction: Operates without requiring an external water-cooling system.
FKM Seals: Improve corrosion resistance and help reduce oil leakage.
Optional Oil Mist Filter: Helps reduce discharged oil mist when a compatible filter is installed.

Specification Table

Specification	Details
Brand	VALUE
Model	VRD-65
Product Type	Dual-Stage Oil-Sealed Rotary Vane Vacuum Pump
Pumping Speed at 50Hz	65m³/h (18 L/s)
Pumping Speed at 60Hz	78m³/h (21.6 L/s)
Power Supply	Three Phase (3PH)
Rated Power	2.2kW
Motor Speed at 50Hz	1,440rpm
Motor Speed at 60Hz	1,720rpm
Ultimate Partial Pressure (Gas Ballast Closed)	4 × 10⁻² Pa
Ultimate Total Pressure (Gas Ballast Closed)	4 × 10⁻¹ Pa
Ultimate Total Pressure (Gas Ballast Open)	8 × 10⁻¹ Pa
Intake / Exhaust Connection	KF40
Oil Capacity	3.3–4.5L
Protection Rating	IP44
Noise Level	≤65dB
Operating Ambient Temperature	5–40°C
Weight	65kg
Dimensions (L × W × H)	730 × 234 × 358mm

Package Content

1 × VALUE VRD-65 Dual-Stage Vacuum Pump (Three-Phase Version)
1 × Operating Manual, subject to the supplied package

Note: Vacuum pump oil, hoses, connection adapters and an optional oil mist filter should be confirmed with the supplier before purchase, as these may be supplied separately.

Warranty Term

Warranty coverage is subject to the applicable manufacturer and supplier terms. Please contact Kennedy to confirm the warranty period, coverage and exclusions before purchase.

Why Choose VALUE?

VALUE specialises in vacuum technology and equipment designed for professional and industrial applications. Its vacuum pump range combines practical engineering, reliable operation and maintenance-friendly features to meet the needs of technicians and industrial users.

The VALUE VRD-65 combines high pumping capacity with forced lubrication, adjustable gas ballast and anti-suck-back protection. It is a practical choice for applications requiring consistent vacuum performance and dependable equipment operation.

Choose VALUE for purpose-built vacuum equipment designed to support efficient workflows, reliable performance and practical maintenance.
