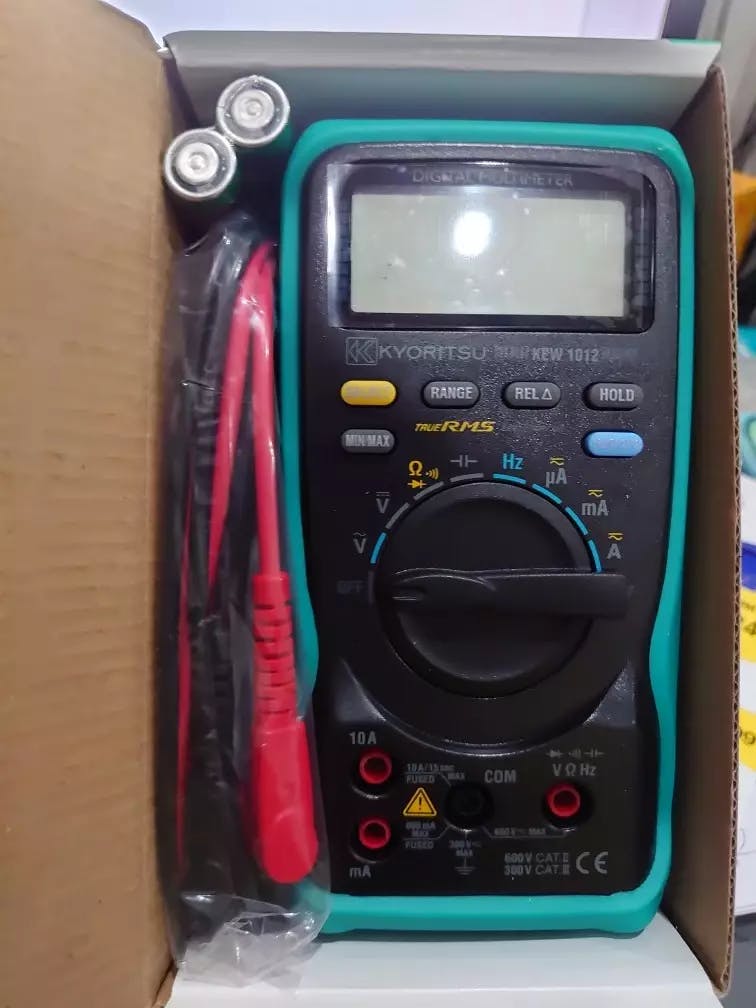

KYORITSU 1012 Digital Multimeter ≤600V with True-RMS | KEW 1012
Couldn't load pickup availability
Got questions?
Feel free to WhatsApp us

Ask an expert
Model: KEW 1012
The KEW 1011/1012 Digital Multimeter Series is manufactured by Kyoritsu, a renowned Japanese company specializing in electrical measuring instruments. Based on its branding and documentation, these products are designed and likely made in Japan, adhering to high international safety and quality standards.
Parameter | Details |
Display Counts | 6040 with bar graph |
True RMS Measurement | Yes |
Voltage Measurement (DC) |
400mV, 4V, 40V, 400V, 600V
|
Voltage Measurement (AC) |
400mV, 4V, 40V, 400V, 600V
|
Current Measurement (DC/AC) |
400µA, 4000µA, 40mA, 400mA, 10A
|
Resistance Measurement |
400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
|
Capacitance Measurement |
40nF, 400nF, 4µF, 40µF, 100µF
|
Frequency Measurement | 1Hz to 10MHz |
Temperature Measurement | Not applicable |
Diode Check | Yes |
Continuity Check |
Yes (Buzzer below ~100Ω)
|
General Specifications
|
Details |
Safety Standards |
IEC 61010-1 CAT III 300V / CAT II 600V
|
Power Supply | Two AA batteries |
Auto Power Off |
After ~30 minutes of inactivity
|
Dimensions | 155mm x 75mm x 33mm |
Weight |
Approx. 260g (with batteries)
|
Accessories Included |
Test leads, instruction manual
|
Warranty: 1 Year
Made In: China
