KYORITSU 2033 AC/DC Digital Clamp Meters | KEW 2033

In stock - 36 items available
SKU: KE 2033
RM1,127.00 MYR
-20% RM1,400.00 MYR RM1,127.00 MYR
  • Visa
  • Mastercard
  • Touch n Go
  • FPX
  • Boost
  • ShopeePay
  • GrabPay
  • PayPal
  • Union Pay
  • Maybank
  • Google Pay

Helpful Documents

Pickup available at No.36-1, Jalan Sulaiman 1,

Usually ready in 2-4 days

Got questions?

Feel free to WhatsApp us

Ask an expert

Chat Email +6012-9725395

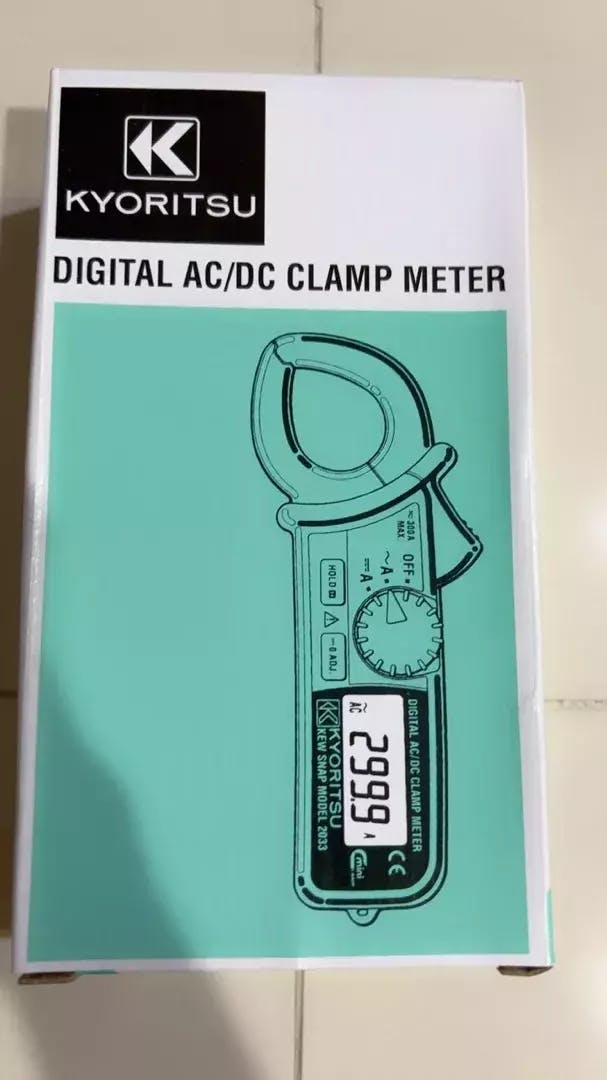

MODEL 2033 AC/DC Clamp Meter

The MODEL 2033 AC/DC Clamp Meter is the smallest clamp meter capable of accurate AC and DC current measurements. It features a 300A auto-ranging function with a minimum resolution of 0.01A AC/DC. The zero adjustment for DC current can be done at the push of a button, making it easy to use in various low-current and high-current applications.

Key Features:

  • Small and Lightweight: Compact design for ease of handling and portability.
  • AC/DC Current Measurement: Measures currents up to 300A with high precision.
  • Auto-Ranging Function: Automatically adjusts to the optimal range for accuracy.
  • Zero Adjustment Button: Allows quick and easy DC current zeroing.
  • High Safety Standards: Complies with IEC 61010-1 CAT III 300V for secure operation.

Specifications Table

Function Range Accuracy
AC Current (ACA) 40A / 300A ±1%rdg ±4dgt [50/60Hz] (0 - 40A); ±2.5%rdg ±4dgt [20Hz - 1kHz] (0 - 40A); ±1.5%rdg ±4dgt [50/60Hz] (20 - 200A); ±2.5%rdg ±4dgt [20Hz - 1kHz] (20 - 200A); ±3.5%rdg [50/60Hz] (200 - 300A); ±4%rdg [20Hz - 1kHz] (200 - 300A)
DC Current (DCA) 40A / 300A ±1%rdg ±4dgt (0 - ±40A); ±1.5%rdg ±4dgt (±20 - ±200A); ±3%rdg (±200 - ±300A)
Frequency Response DC, 20Hz - 1kHz —
Conductor Size Ø24mm max. —

General Specifications

Feature Details
Safety Standards IEC 61010-1 CAT III 300V; IEC 61010-2-032
Power Source 2 × LR44 (1.5V)
Dimensions 147 mm × 59 mm × 25 mm
Weight Approx. 100g
Accessories Included Carrying case (9090), 2 × LR44 batteries, instruction manual
Warranty: 1 Year
Made In: Japan
