KYORITSU 2046R AC/DC Digital Clamp Meters (KEW 2046R)
Regular price
RM1,266.00 MYR
Regular price
-18%
RM1,540.00 MYR
Sale price
RM1,266.00 MYR
Couldn't load pickup availability
Got questions?
Feel free to WhatsApp us
Product Brochure
Click Here: Brochure in PDF
Product Datasheet / User Manual
Click Here: Datasheet in PDF

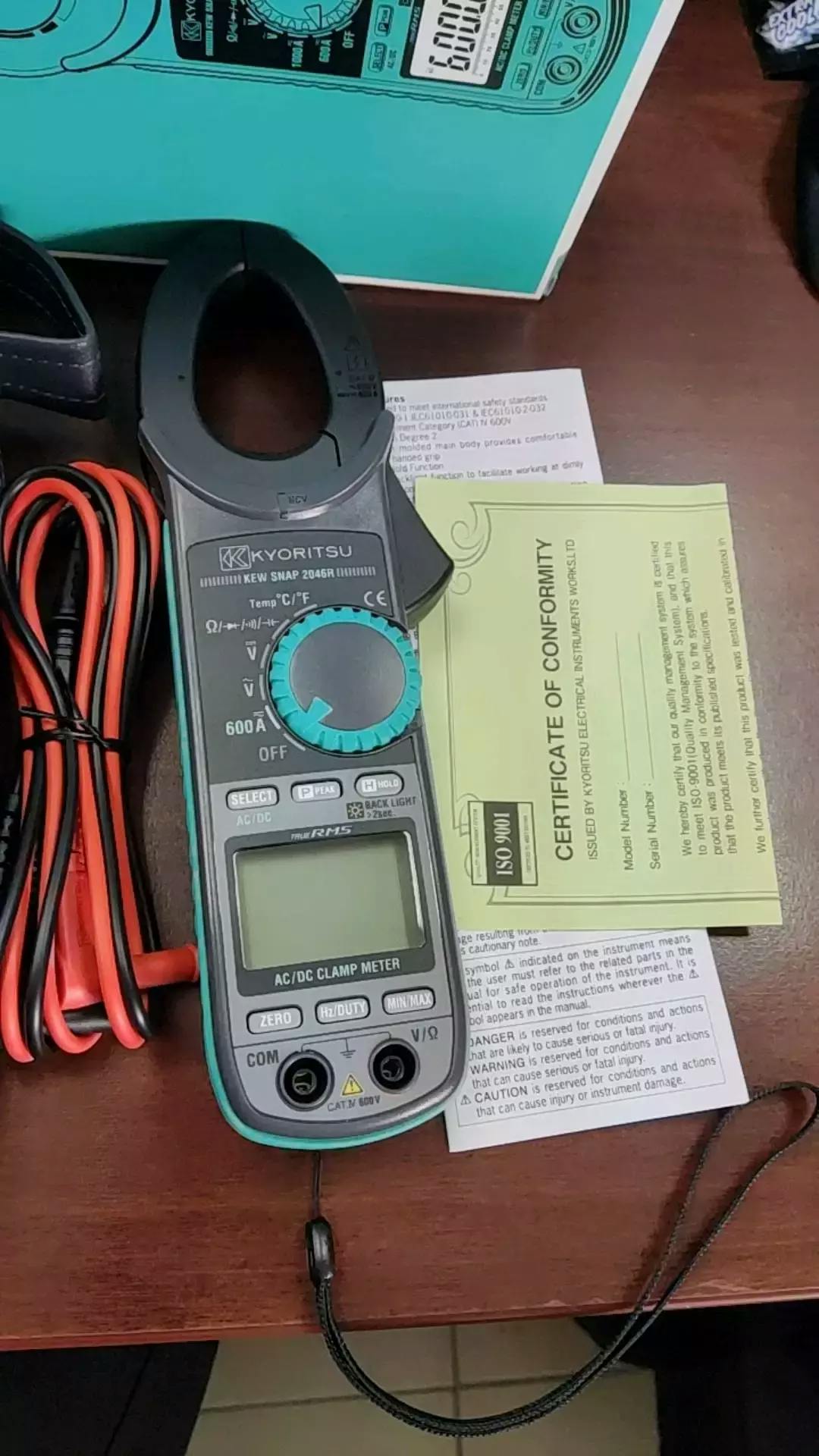

KEW 2046R AC/DC Clamp Meter
The KEW 2046R AC/DC Clamp Meter is a versatile and robust tool ideal for power distribution companies, power utilities, and maintenance fields. It features a Non-Contact Voltage (NCV) function, indicated by a red LED, to alert users of the presence of AC voltage. The ergonomic design with double molding provides a comfortable grip, while the 6039 counts display with Bar Graph ensures accurate and easy readings. Its minimum resolution of 0.1A and wide range of measurement capabilities make it an indispensable tool for professionals.
Key Features:
- Non-Contact Voltage Detection: Red LED alerts the user to the presence of AC voltage for enhanced safety.
- Double Molding Design: Ensures a comfortable grip during prolonged use.
- Comprehensive Measurement Functions: Measures AC/DC current, AC/DC voltage, resistance, continuity, capacitance, temperature, and frequency.
- High Resolution: Offers a minimum resolution of 0.1A for detailed measurements.
- Safety Standards Compliance: Certified to IEC 61010-1 CAT IV 600V for secure and reliable operation.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| AC Current (ACA) | 0 - 600.0A | ±2.0%rdg ±5dgt (50/60Hz); ±3.5%rdg ±5dgt (40 - 500Hz) |
| DC Current (DCA) | 0 - 600.0A | ±1.5%rdg ±5dgt |
| AC Voltage (ACV) | 6V / 60V / 600V (Auto-ranging) | ±1.5%rdg ±4dgt (50/60Hz); ±3.5%rdg ±5dgt (40 - 400Hz) |
| DC Voltage (DCV) | 600mV / 6V / 60V / 600V (Auto-ranging) | ±1.0%rdg ±3dgt |
| Resistance (Ω) | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ (Auto-ranging) | ±1%rdg ±5dgt (600Ω - 6MΩ); ±5%rdg ±8dgt (60MΩ) |
| Continuity Buzzer | — | Buzzer sounds below 100Ω |
| Capacitance | 400nF / 4μF / 40μF (Auto-ranging) | — |
| Temperature | -50°C to +300°C (with Temperature Probe 8216) | — |
| Frequency | 10Hz / 100Hz / 1kHz / 10kHz (Auto-ranging) | — |
| Duty Cycle | 0.1% - 99.9% | — |
| Conductor Size | Ø33mm max. | — |
General Specifications
| Feature | Details |
|---|---|
| Safety Standards | IEC 61010-1 CAT IV 600V; IEC 61010-031; IEC 61010-2-032; IEC 61326 |
| Power Source | 2 × R03 (AAA) (1.5V) |
| Dimensions | 243 mm × 77 mm × 36 mm |
| Weight | Approx. 300g |

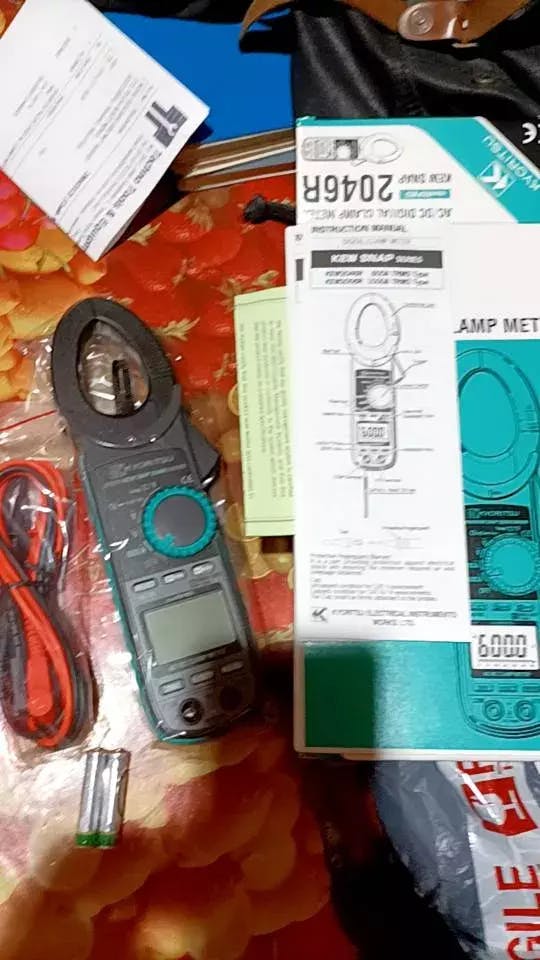

| Accessories Included | Test leads (7066A), carrying case (9094), instruction manual |
| Optional Accessories | Temperature probe (8216) |
Warranty: 1 Year
Made In: Thailand
