PRO'SKIT MT-7076 LCD Network Cable Tester & Probe Kit

SKU: MT-7076
Regular price RM518.00 MYR
Regular price -10% RM575.00 MYR Sale price RM518.00 MYR
  • Visa
  • Mastercard
  • Touch n Go
  • FPX
  • Boost
  • ShopeePay
  • GrabPay
  • PayPal
  • Union Pay
  • Maybank
  • Google Pay

Helpful Documents

Pickup available at No.36-1, Jalan Sulaiman 1,

Usually ready in 2-4 days

LCD Network Cable Tester & Probe Kit

• Analog/Digital Dual Mode
• Li-ion Battery [ Type-C]
• PoE Switches & Port Flashing
• NCV Deduction

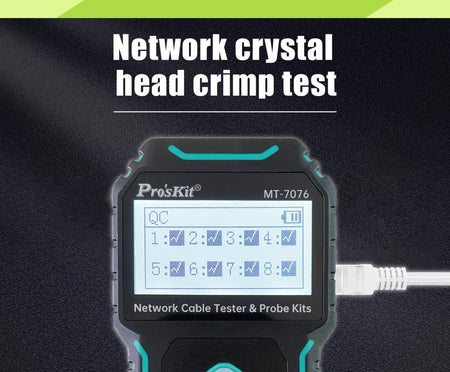

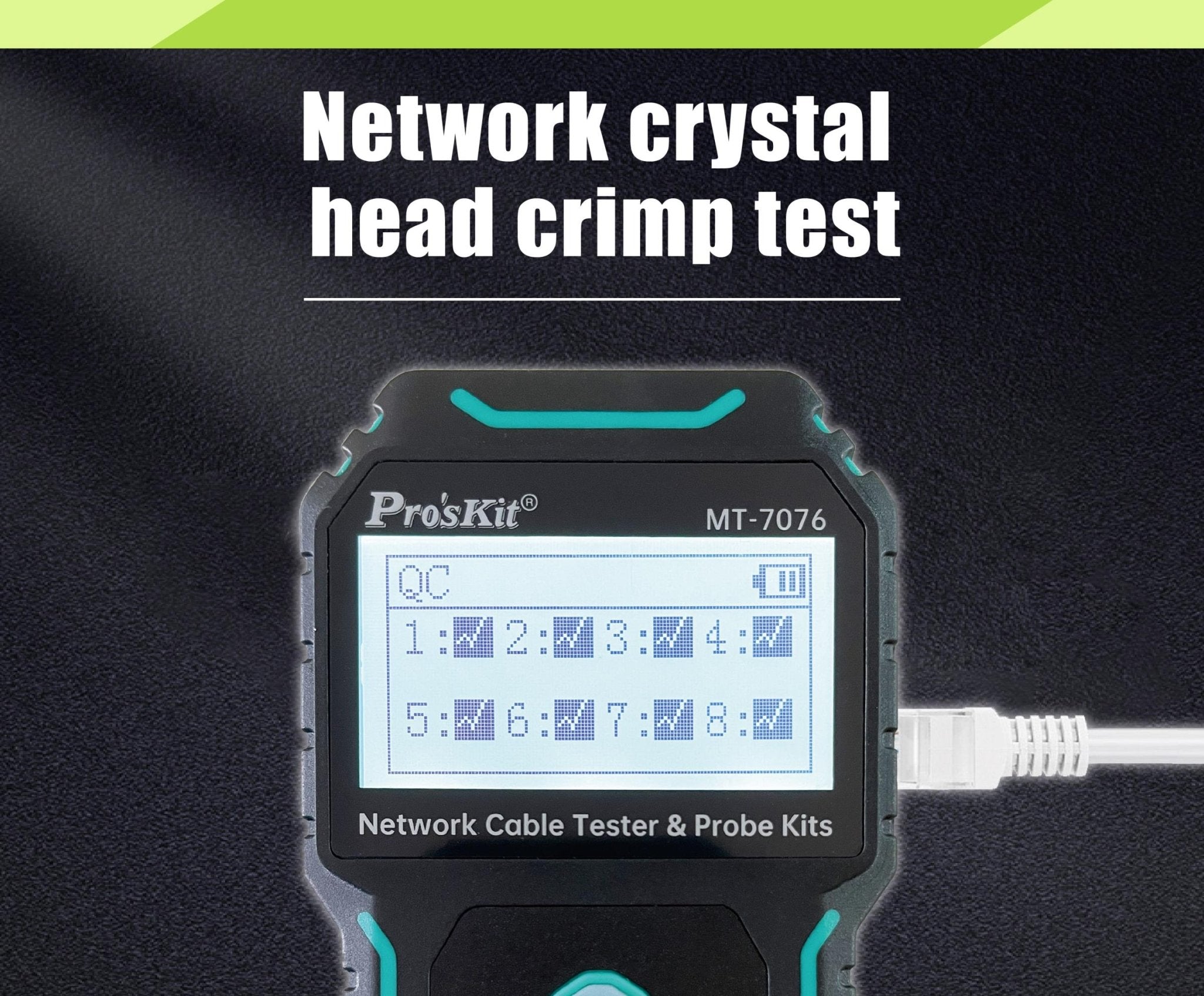

• Crimp Test
• DC60V Protect Design

Product Description:

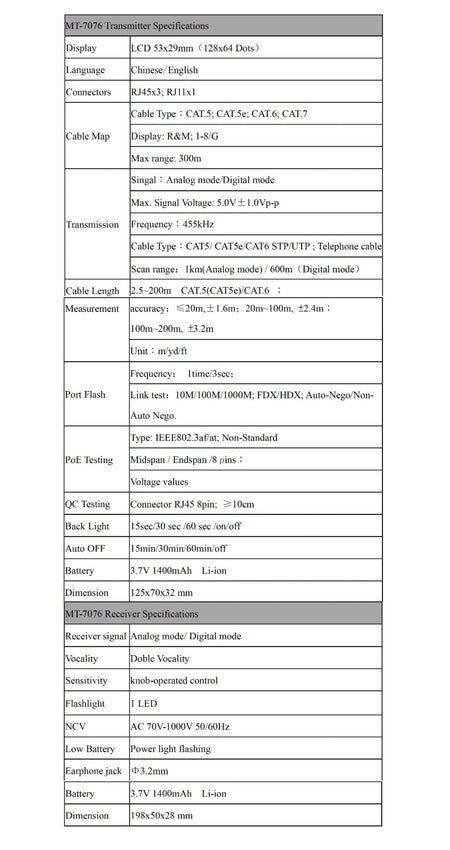

Cable Tester & Probe Kit (MT-7076) - Advanced Network Diagnostics

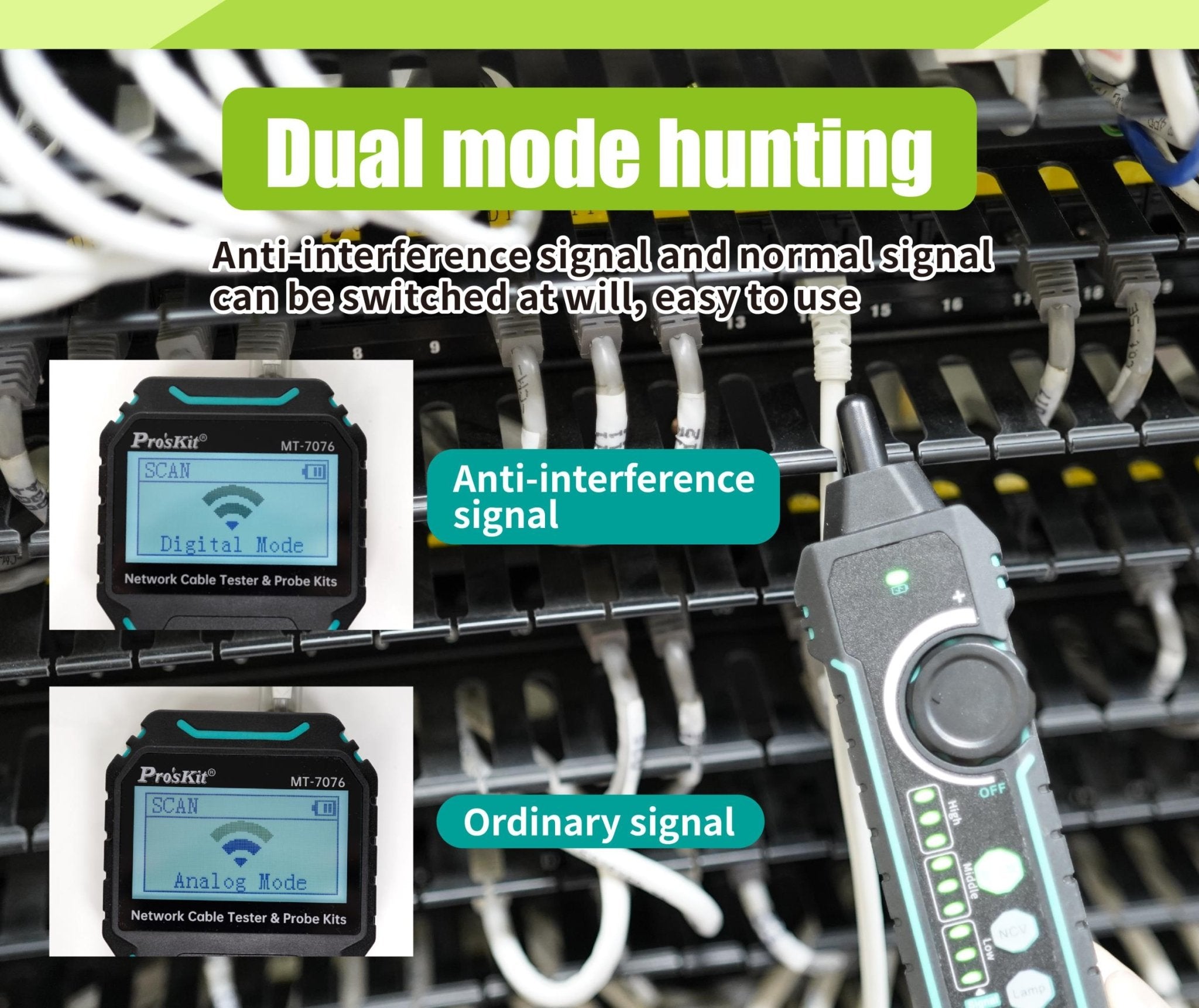

  1. Dual Mode Operation: Features both Analog and Digital modes for versatile cable testing.

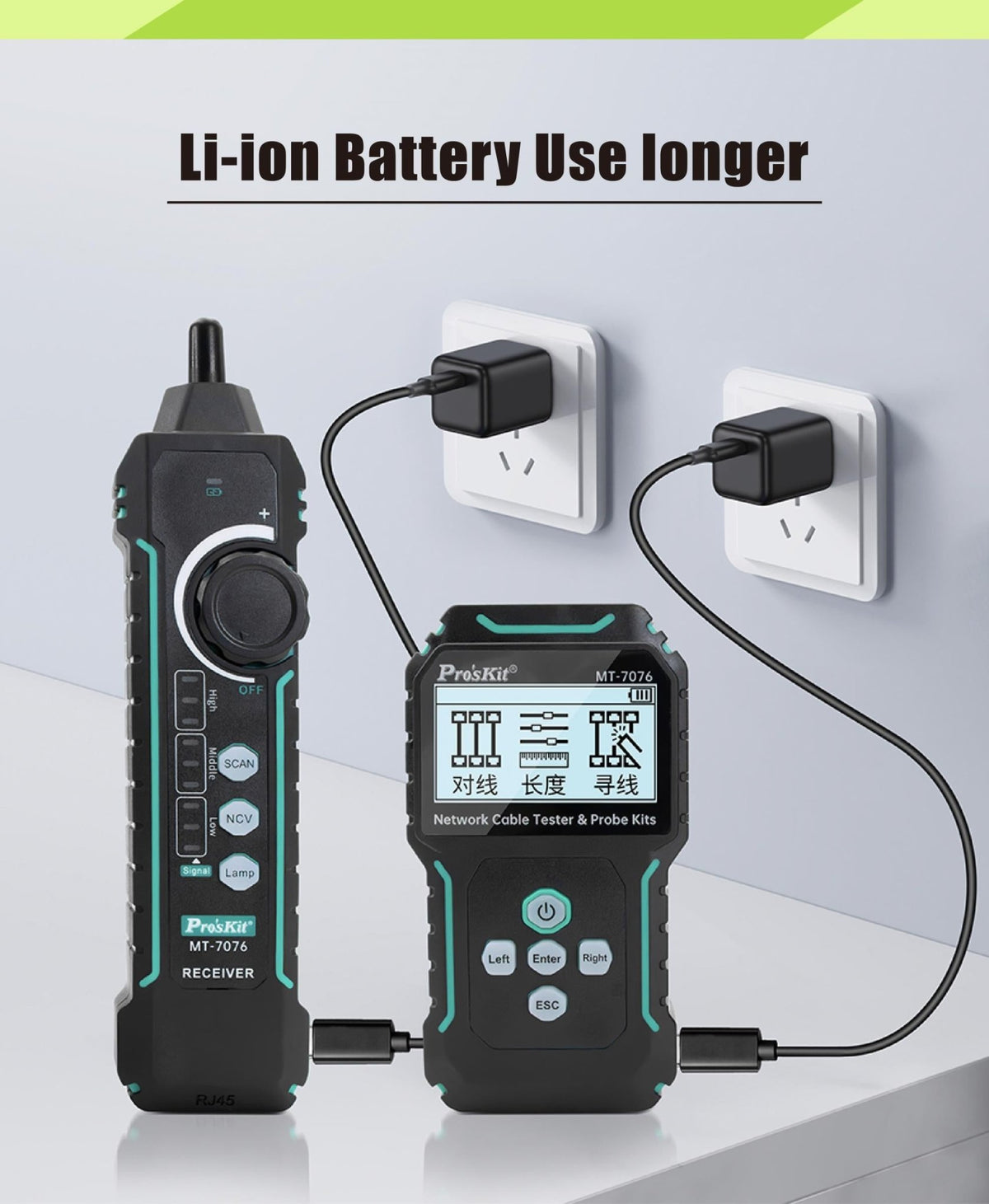

  2. Powerful Battery Life: Equipped with a rechargeable 3.7V 1400mAh Li-ion battery with Type-C charging for prolonged use.

Comprehensive Testing Capabilities:

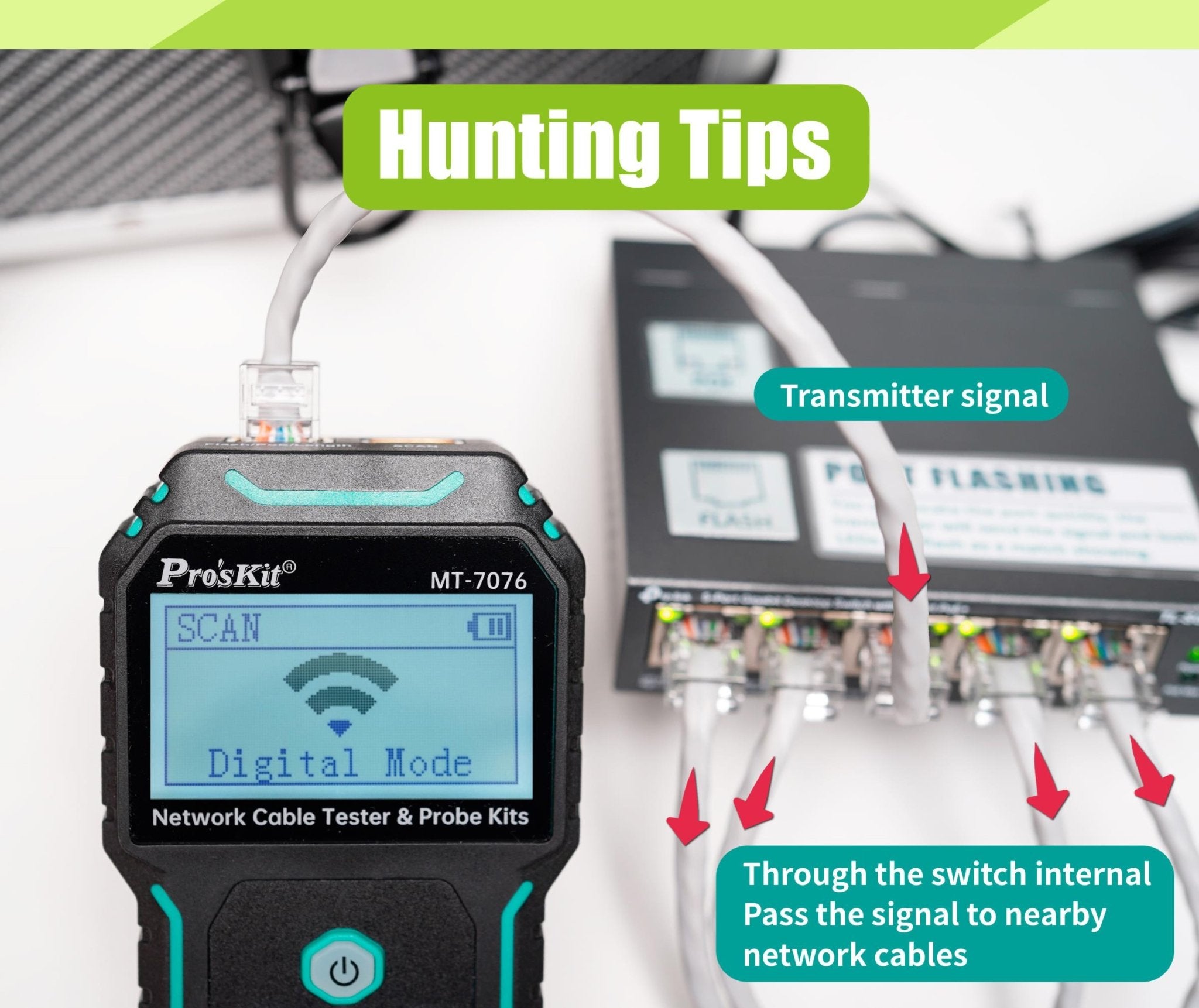

  • Cable Tracing: Supports tracing with signals up to 600 meters in digital mode and 1km in analog mode.

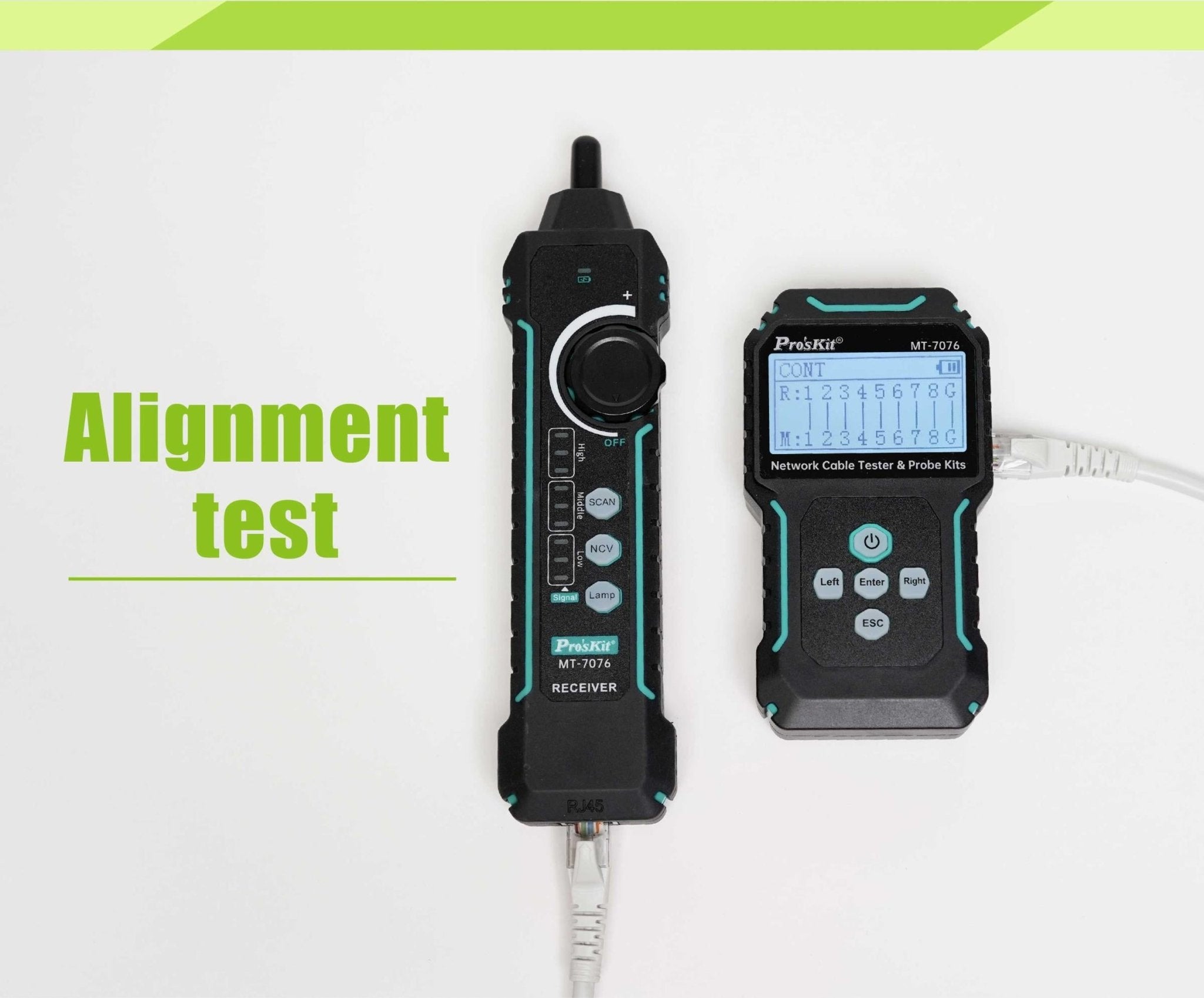

  • Cable Mapping: Maps CAT.5, CAT.5e, CAT.6, and CAT.7 cables with an LCD display showing wire positions (R&M; 1-8/G).

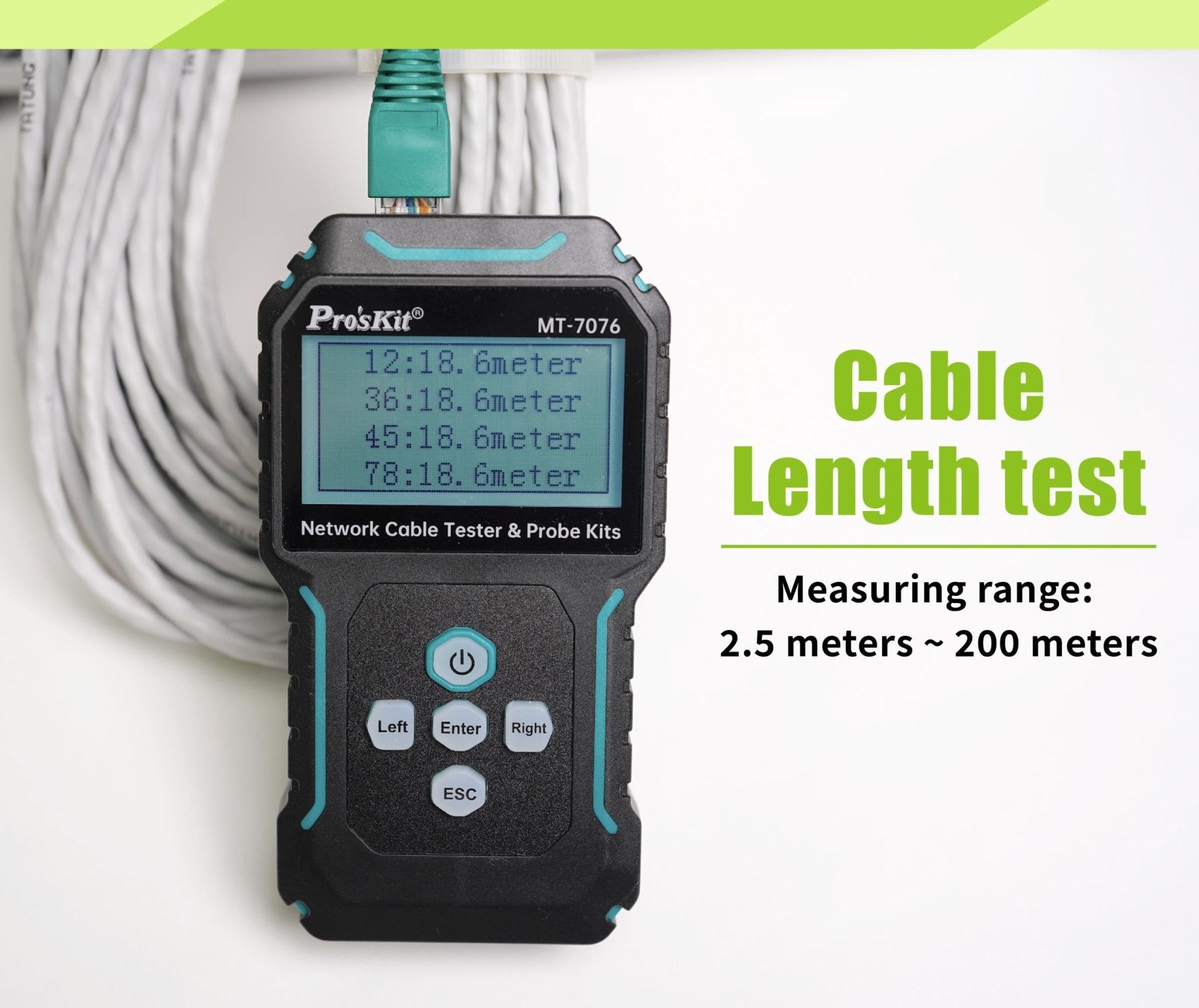

  • Cable Length Measurement: Measures cable lengths from 2.5 to 200 meters with high accuracy across different ranges.

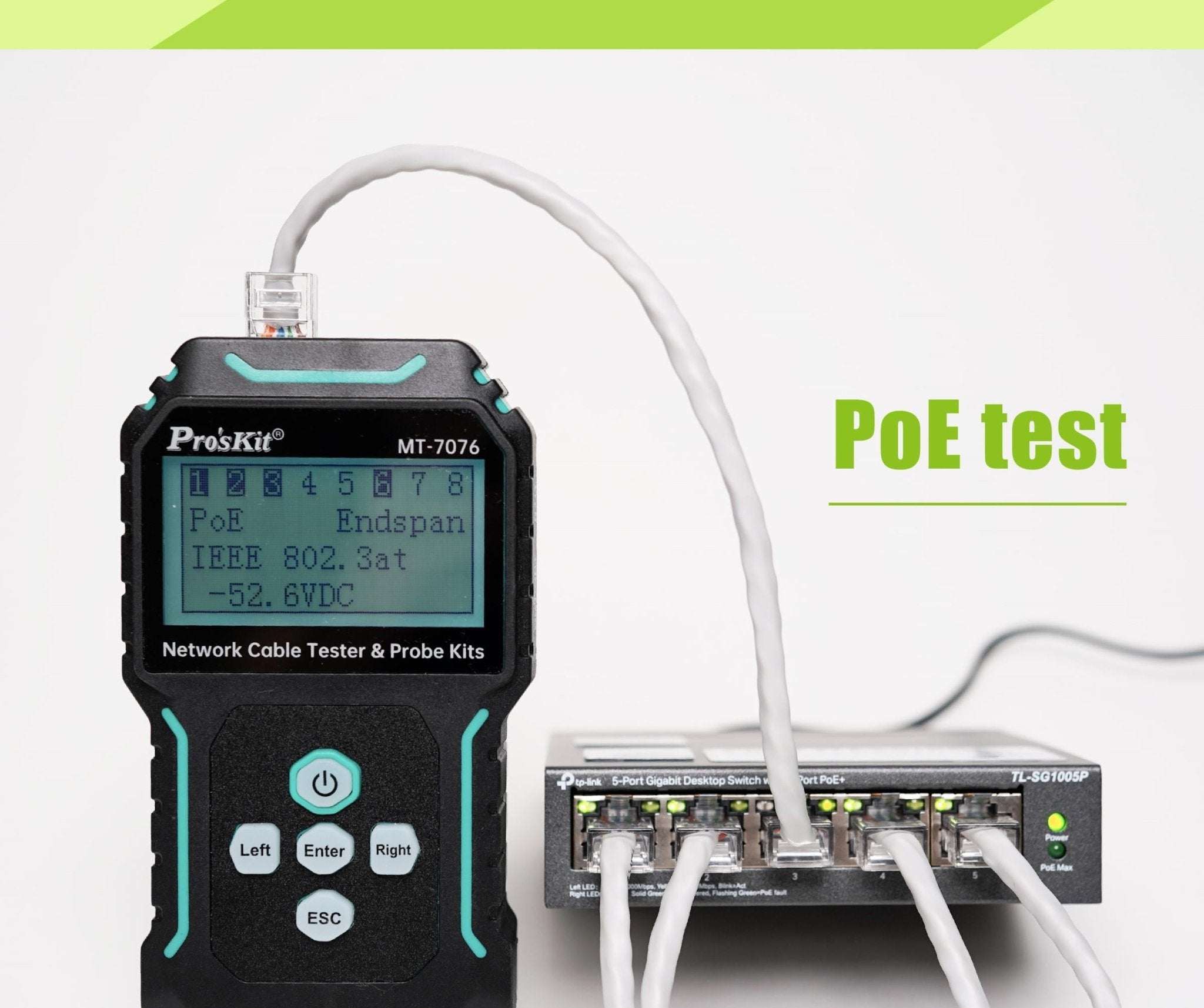

  • PoE Testing: Tests for IEEE802.3af/at and non-standard Power over Ethernet, identifying midspan, endspan, and 8-pin configurations.

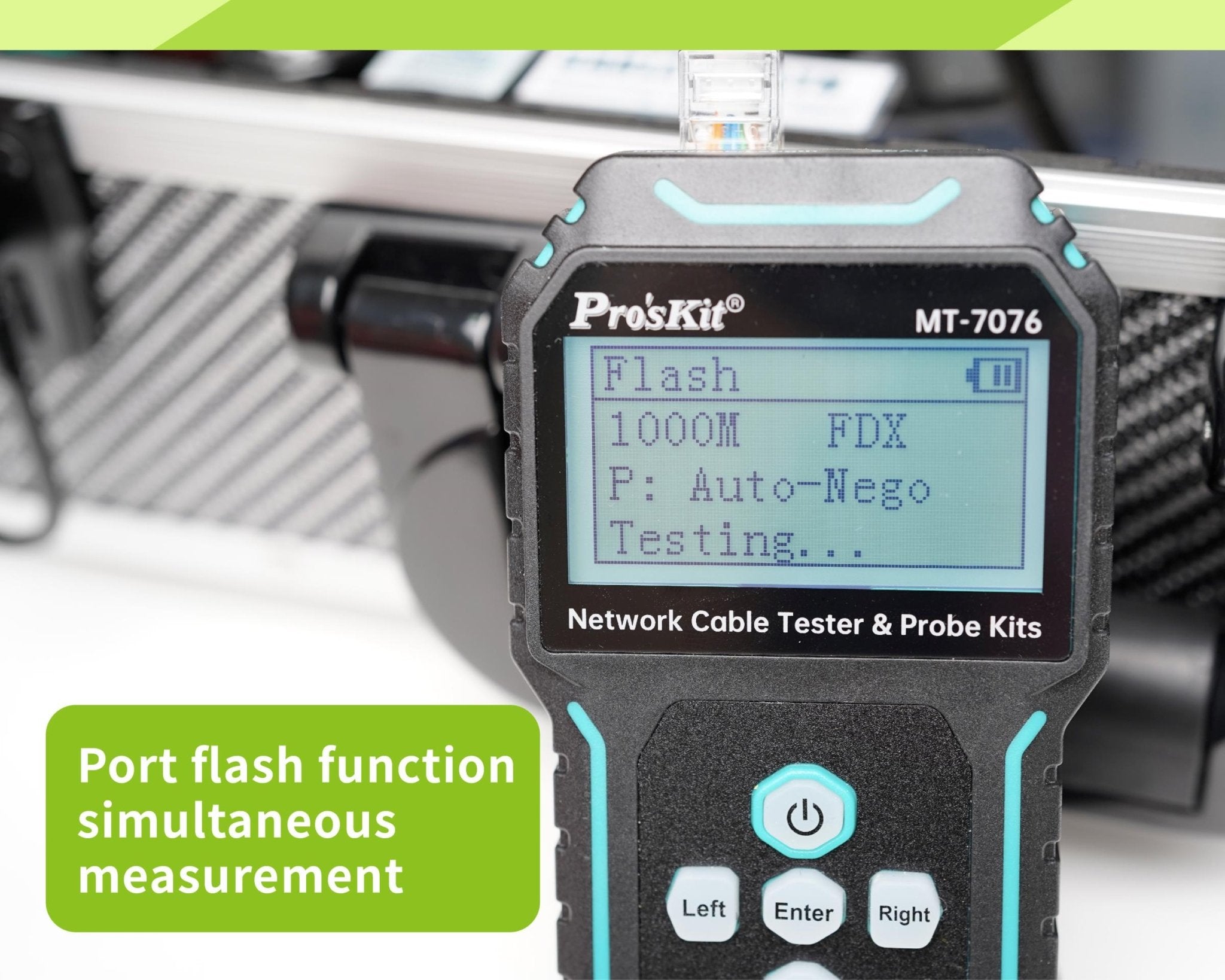

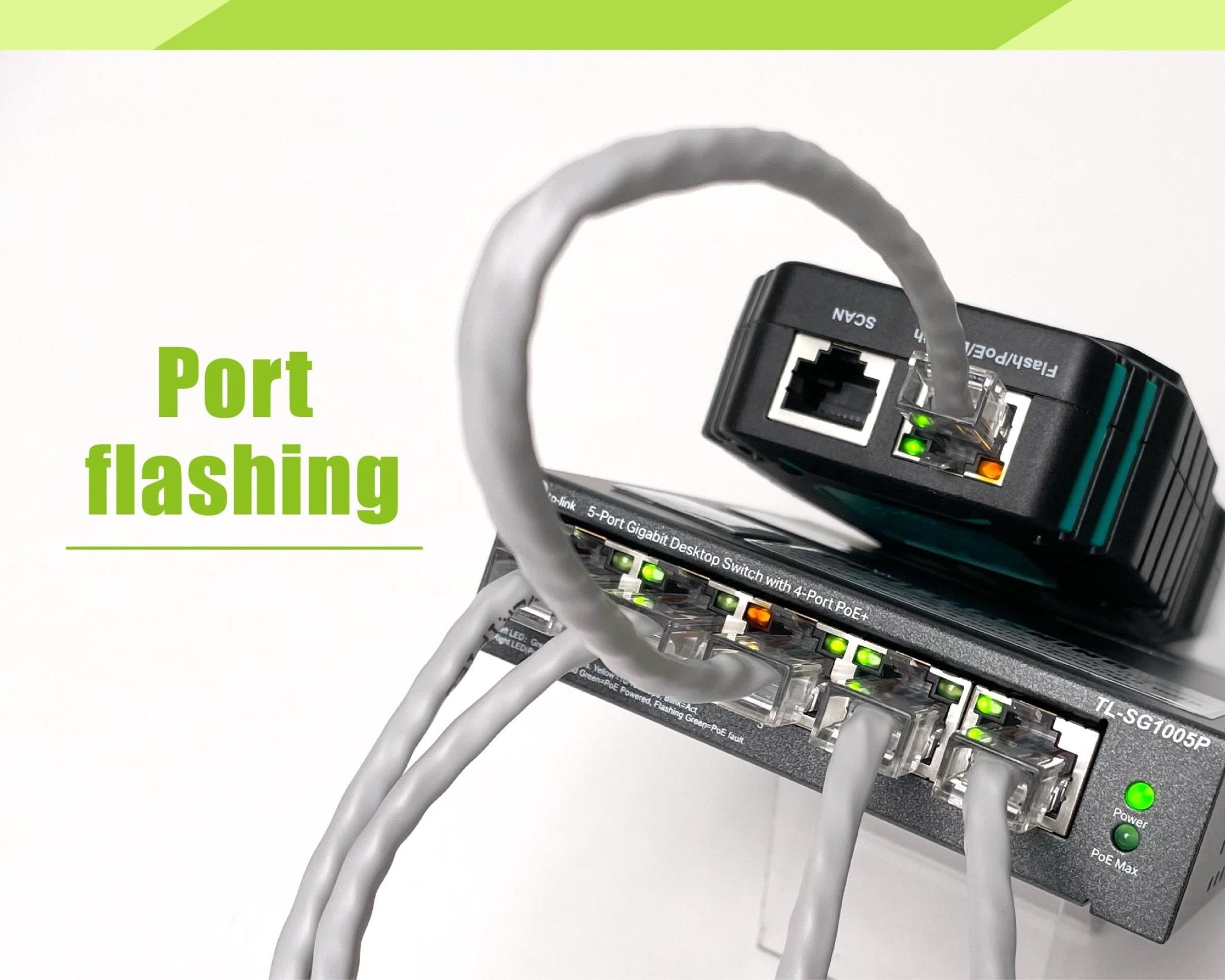

  • Port Flashing & Link Testing: Includes port flashing at 1 time/3 seconds, and link tests for 10M/100M/1000M, full/half duplex, auto-negotiation capabilities.

Additional Features:

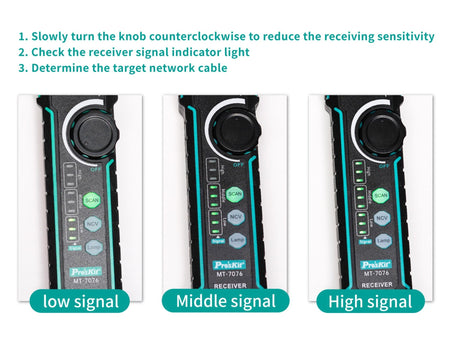

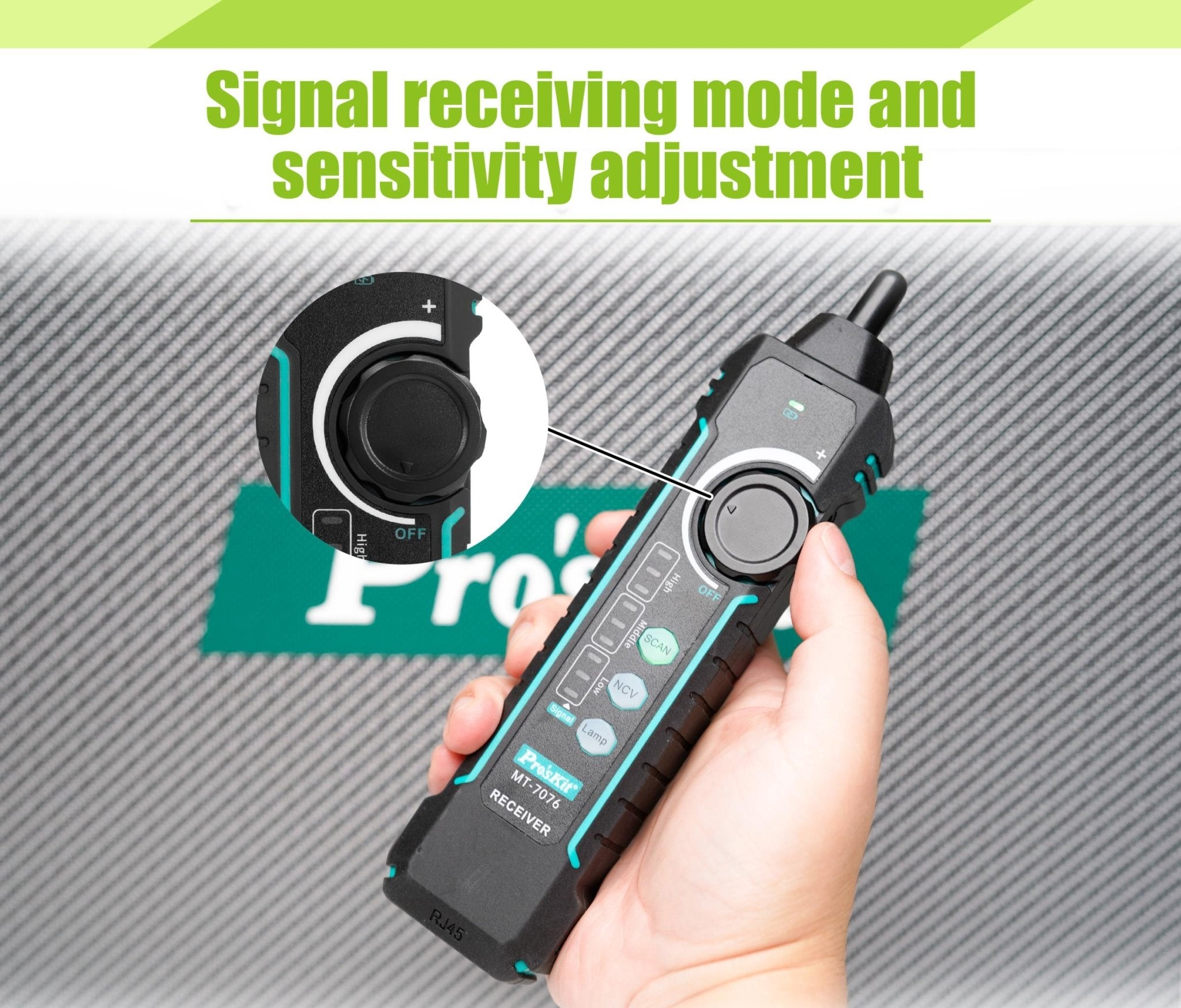

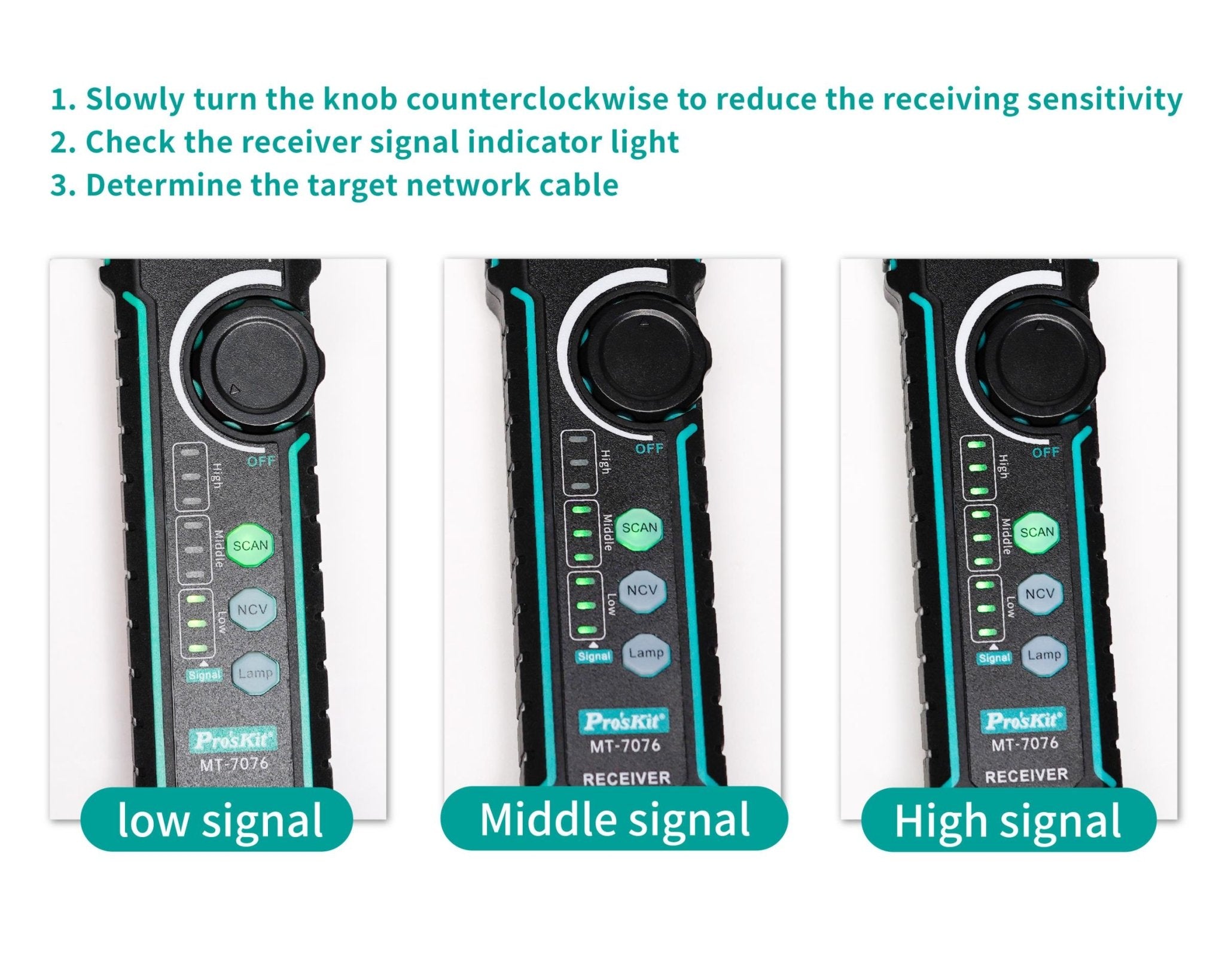

  1. Receiver with Adjustable Sensitivity: Uses a knob for fine-tuning sensitivity, ideal for pinpointing cables in complex environments.

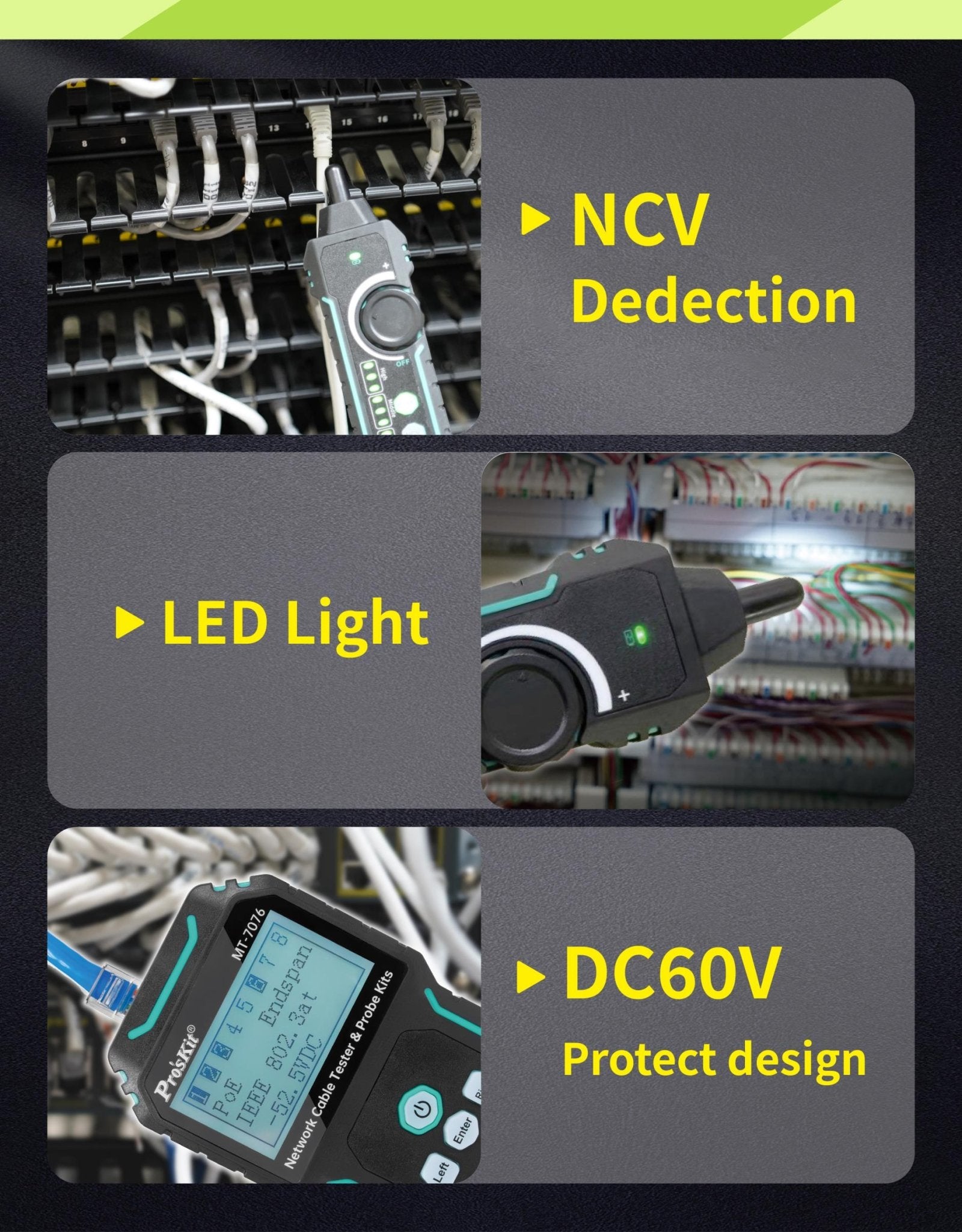

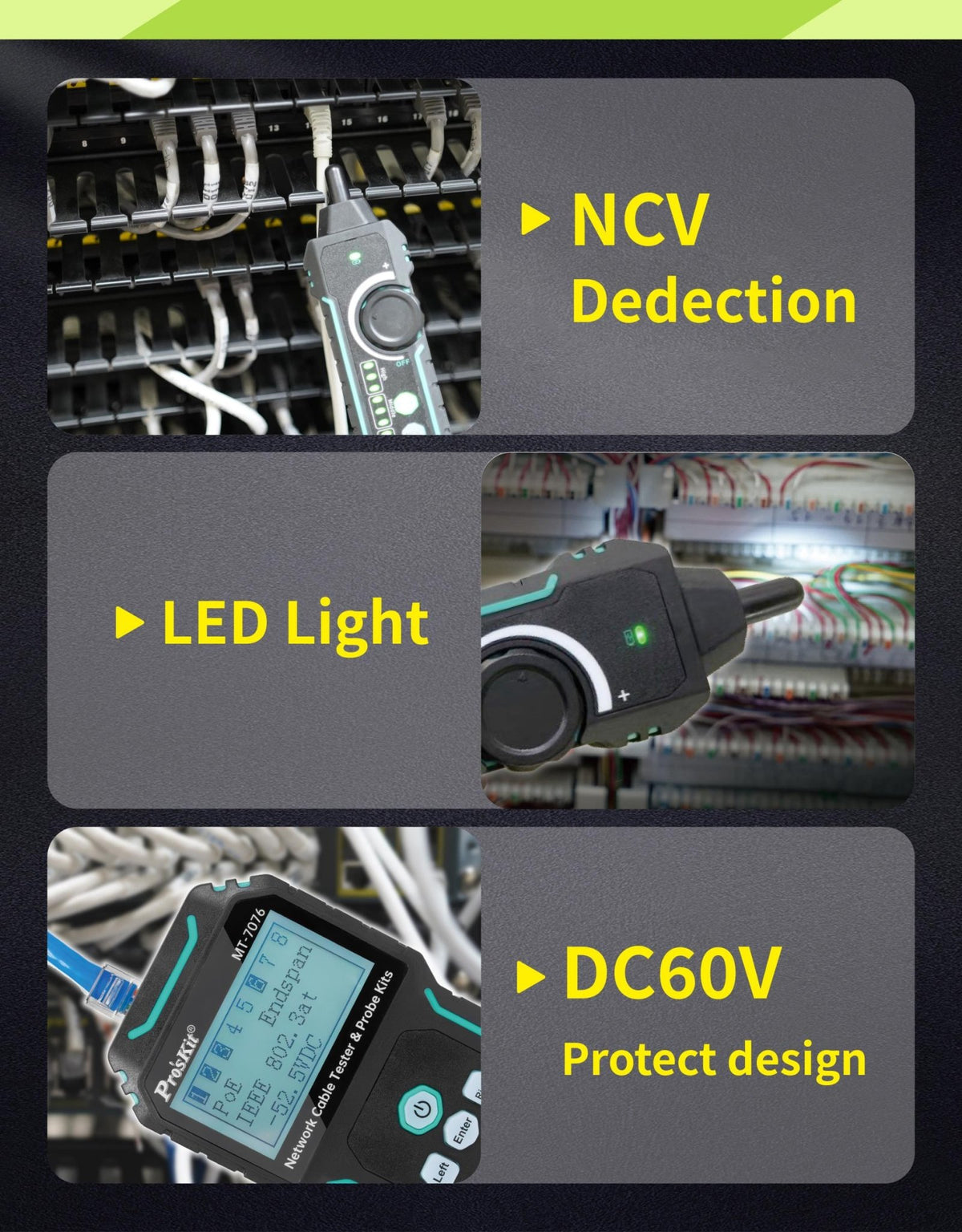

  2. Non-Contact Voltage Detection (NCV): Detects AC voltage from 70V to 1000V for safety checks.
  3. Flashlight: Built-in LED for working in low-light conditions.

Design and Durability:

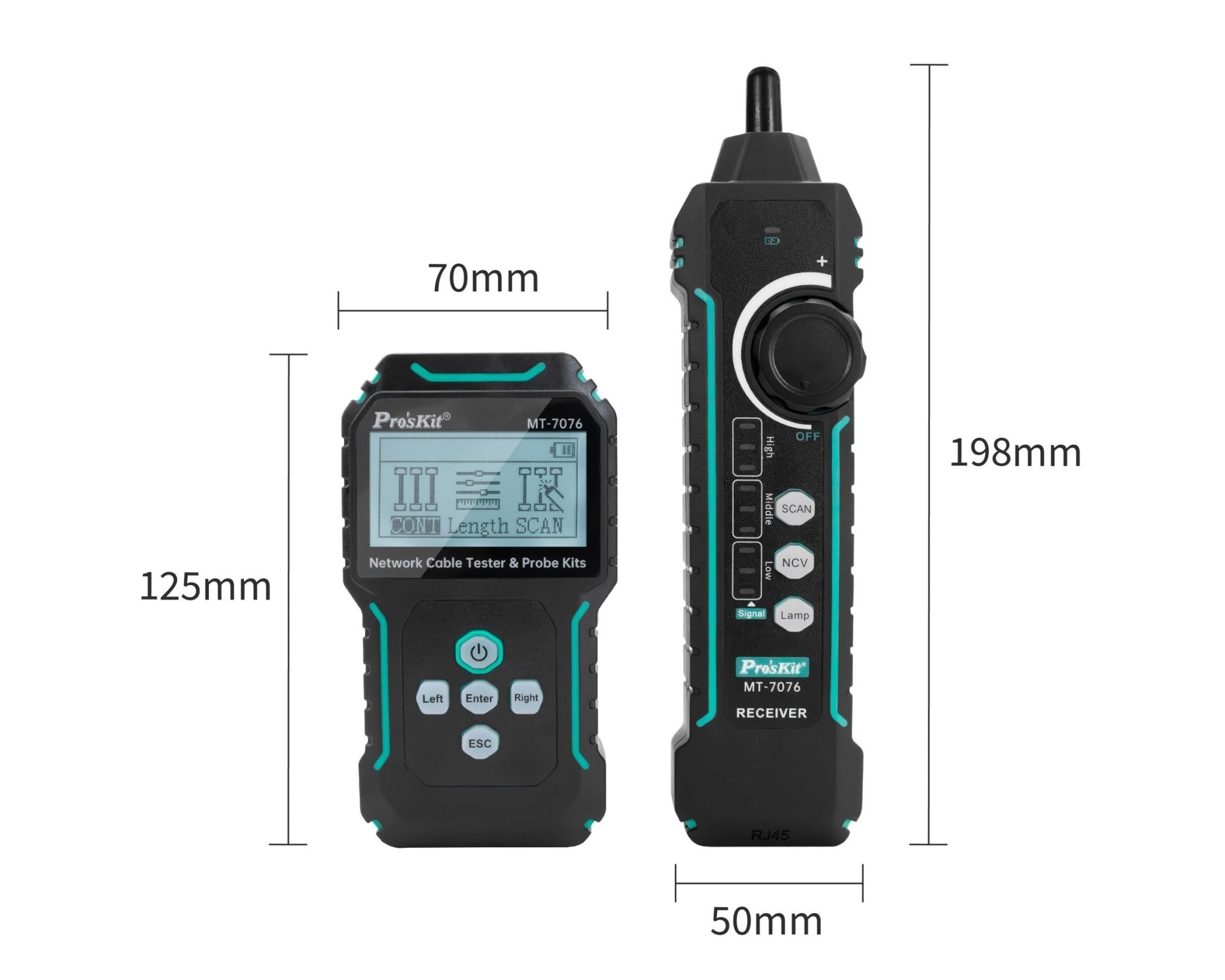

  • Compact and Robust: Transmitter dimensions: 125 x 70 x 32mm; Receiver: 198 x 50 x 28mm.
  • Ergonomic and User-Friendly: Features like backlight, auto-off, and dual language (Chinese/English) display.

Comprehensive Testing Capabilities:

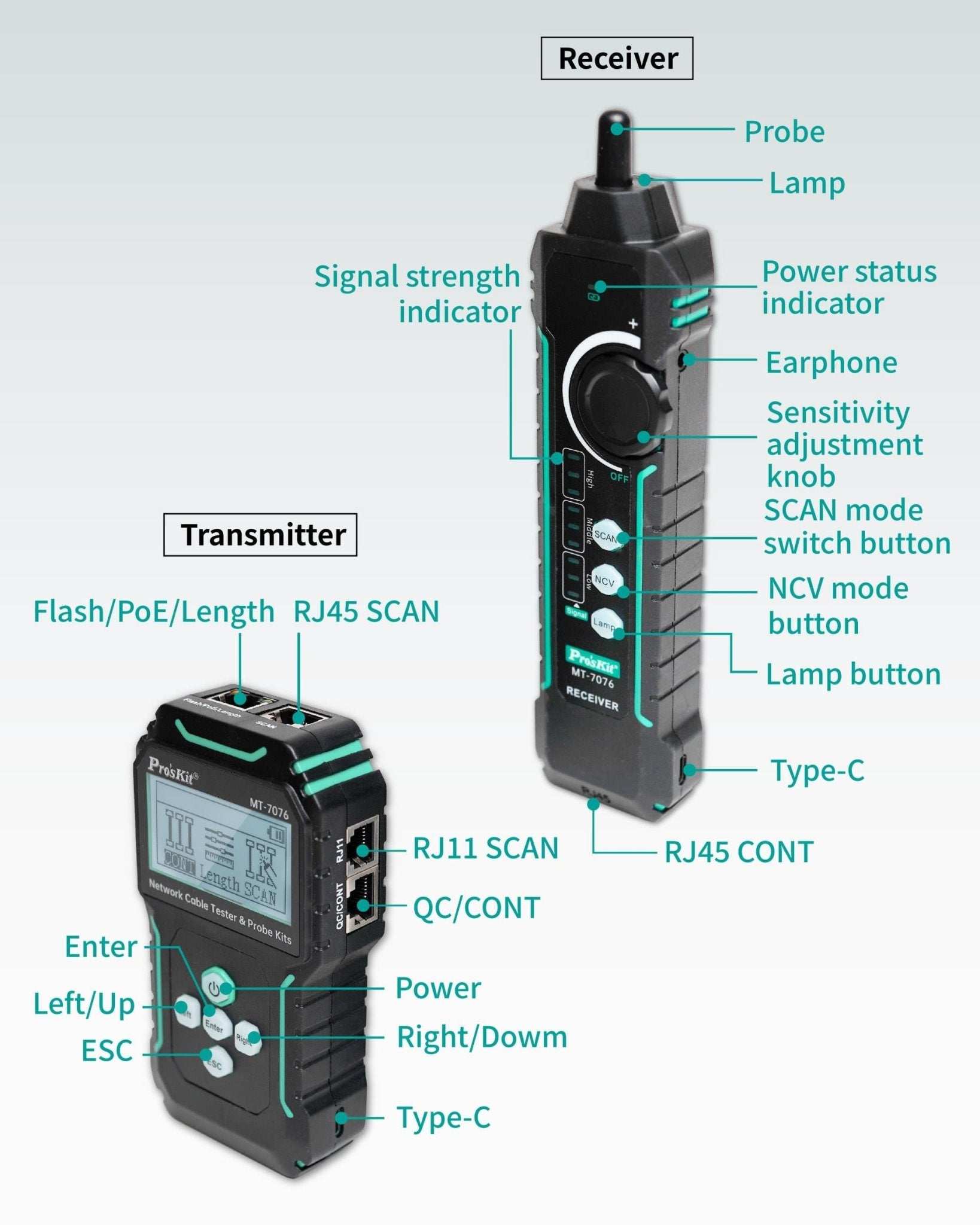

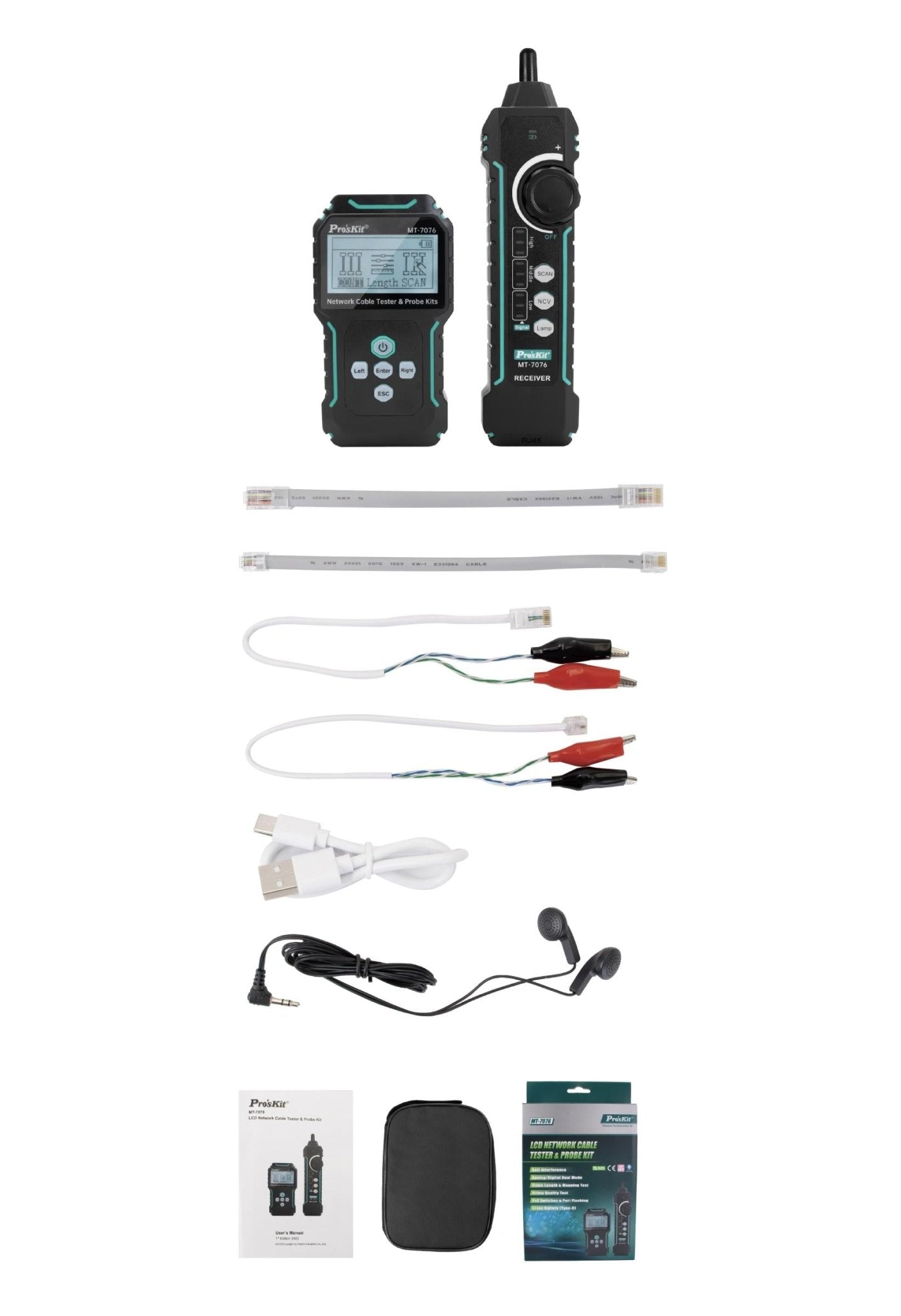

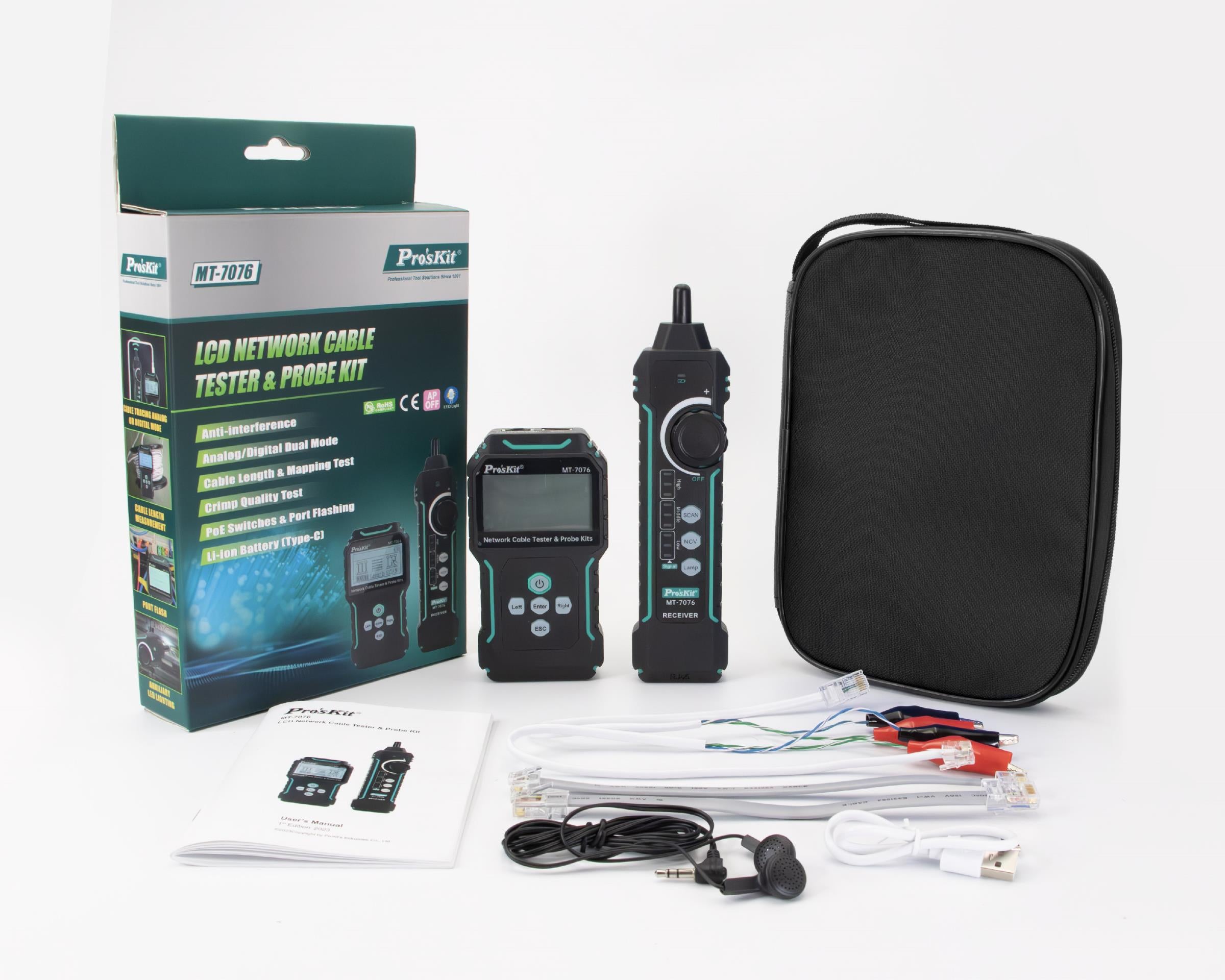

  • MT-7076 Transmitter and Receiver
  • Storage Bag for easy transport and protection
  • All necessary cables and connectors
