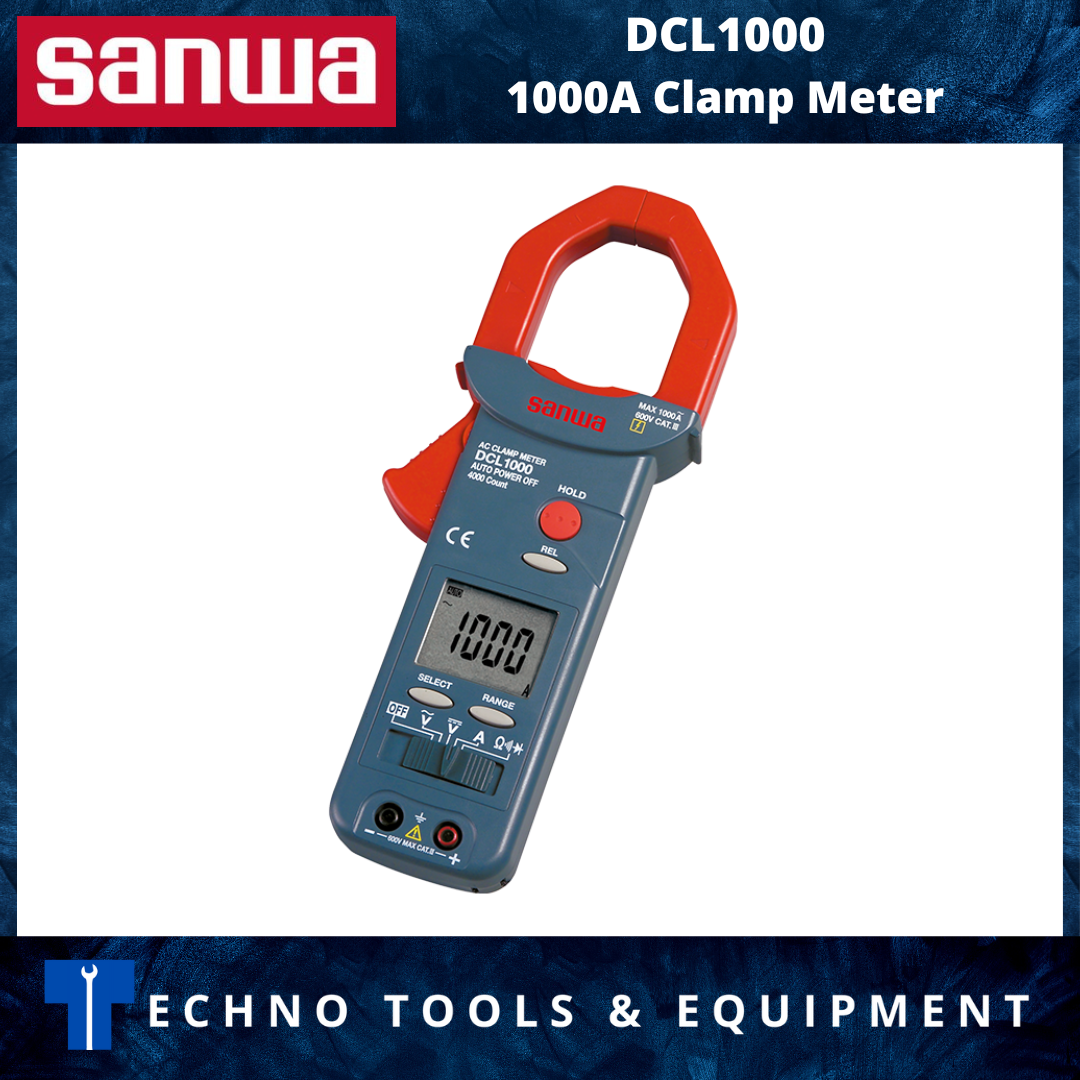

SANWA DCL1000 Clamp Meter (DCL1000)

In stock - 33 items available
SKU: DCL1000
Regular price RM345.00 MYR
Regular price -4% RM360.00 MYR Sale price RM345.00 MYR

Product Brochure

Click Here: Brochure in PDF

Product Datasheet / User Manual

Click Here: Datasheet in PDF

  • Lightweight approx. 290g
  • Large LCD
  • Easy to use large size data hold button

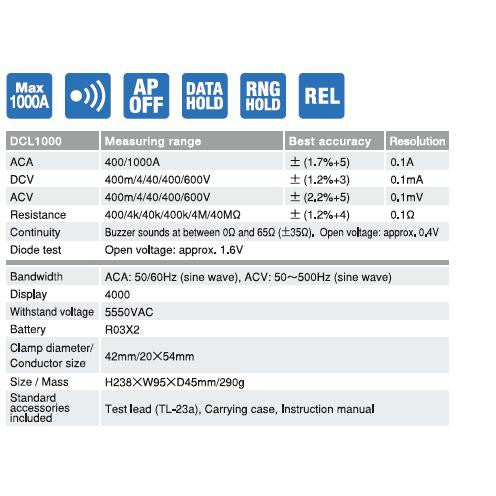

Specifications

Function Measuring range Best accuracy Resolution
ACA 400/1000A ±(1.7%+5) 0.1A
DCV 400m/4/40/400/600V ±(1.2%+3) 0.1mV
ACV 400m/4/40/400/600V ±(2.2%+5) 0.1mV
Resistance 400/4k/40k/400k/4M/40MΩ ±(1.2%+4) 0.1Ω
Continuity Buzzer sounds at between 0Ω and 65Ω(±35Ω) Open voltage: approx. 0.4V
Diode test Open voltage: approx. 1.6V
Sampling rate 3 times/sec.
Bandwidth ACA 50/60Hz (sine wave) ACV 50-500Hz (sine wave)
Display 4000
Clamp diameter/Conductor size Φ42mm/20×54mm
Battery R03×2
Battery life Approx. 120 hrs. at DCV (Zinc-carbon battery)
Size/Mass H238×W95×D45mm/Approx.290g
Safety standards IEC61010 CAT.Ⅲ600V
