FLUKE

FLUKE 101 Basic Digital Multimeter Pocket

In stock - 285 items available
SKU: FK 101
RM260.00 MYR
-28% RM360.00 MYR RM260.00 MYR

Got questions?

Feel free to WhatsApp us

Product Brochure

Click Here: Brochure in PDF

Product Datasheet / User Manual

Click Here: Datasheet in PDF

Ready Stock !!!

One Year Warranty 100% Original Fluke
Can't wait for tomorrow? same day delivery can be arrange for Klang Valley customers! (Please call us at 03-42702333 for arrangement)

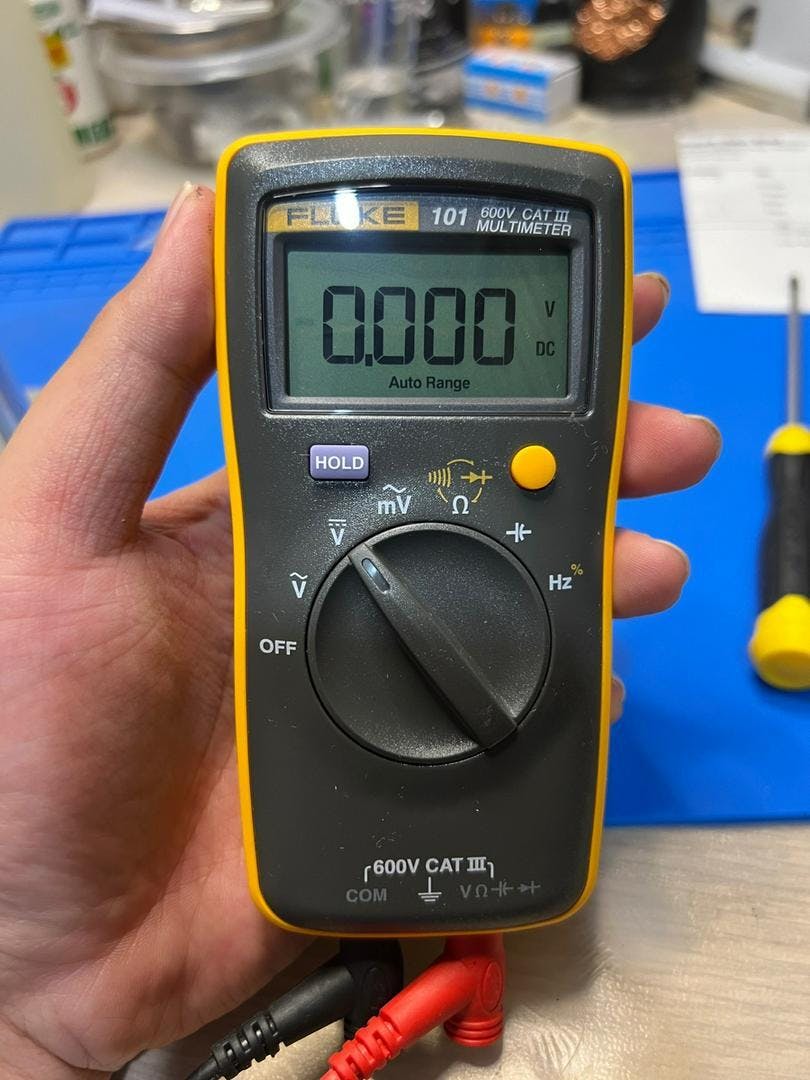

Overview: Fluke 101 Digital Multimeter

Designed for basic electrical tests, the Fluke 101 digital multimeter offers reliable measurements for residential/commercial electricians and heating and air conditioning technicians. This small, lightweight multimeter fits comfortably in your hand but is rugged enough to withstand daily use for years to come. When it comes to professional-grade affordable multimeters, the Fluke 101 digital multimeter is your best choice.

Key features

  • Basic dc accuracy 0.5%
  • CAT III 600 V safety rated
  • Diode and continuity test with buzzer
  • Small lightweight design for one-handed use
  • Rugged, durable design
  • Automatic shutdown
  • Battery is easy to replace
  • Manufacture in China

What's in the box
Fluke 101 Digital Multimeter
TL75 Test Leads
2 AAA Batteries
User’s Manual

    Specifications:

    Electrical Specifications
    V AC (40-500Hz) Range 600.0 mV
    6.000 V
    60.00 V
    600.0 V
    Resolution 0.1 mV
    0.001 V
    0.01 V
    0.1 V
    Accuracy 3.0%±3 digit
    1.0%±3 digit
    V DC Range 6.000 V
    60.00 V
    600.0 V
    Resolution 0.001 V
    0.01 V
    0.1 V
    Accuracy 0.5%±3 digit
    Resistance Ohms Range 400.0 Ω
    4.000 kΩ
    40.00 kΩ
    400.0 kΩ
    4.000 MΩ
    40.00 MΩ
    Resolution 0.1 Ω
    0.001 kΩ
    0.01 kΩ
    0.1 kΩ
    0.001 MΩ
    0.01 MΩ
    Accuracy 0.5 %±3 digit
    0.5 %±2 digit
    0.5 %±2 digit
    0.5 %±2 digit
    0.5 %±2 digit
    1.5%±3 digit
    Capacitance Range 50.00 nF
    500.0 nF
    5.000 μF
    50.00 μF
    500.0 μF
    1000.0 μF
    Resolution 0.01 nF
    0.1 nF
    0.001 μF
    0.01 μF
    0.1 μF
    1 μF
    Frequency
    (10 Hz – 100 kHz)    		 Range 50.00 Hz
    500.0 Hz
    5.000 kHz
    50.00 kHz
    100.0 kHz
    Resolution 0.01 Hz
    0.1 Hz
    0.001 kHz
    0.01 kHz
    0.1 kHz
    Duty Cycle Range 0.1 % to 99.9 %
    Resolution 0.1 %

    General Specifications
    CAT Rating CAT III 600 V
    V AC Range 600.0 V
    V DC Range 600.0 V
    Ohms Range 40.00 MΩ
    Auto Shutoff Y
    Continuity Y
    Capacitor 100.0 μF
    Frequency 100.0 kHz
    Hold No
    Duty Cycle Yes
    Size 130 mm x 65 mm x 27mm
    Weight 160 g
    Battery Two AAA
    Warranty 1 year

    Environmental Specifications
    Operating Temperature 0 °C to +40 °C
    Storage Temperature -30 °C to +60 °C
    Operating Humidity Non condensing (<10 °C)
    <=90% RH (at 10 °C to 30 °C)
    <=75% RH (at 30 °C to 40 °C)
    (Without Condensation)
    Operating Humidity, 40 MΩ 80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
    Operating Altitude 2,000 meters
    Storage Altitude 12,000 meters
    IP Rating IP 40 per IEC 60529
    Vibration Requirements MIL-PRF-28800F, Class 2
    Drop Test Requirements -10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment
    Shipping container drop per Fluke SOP 39.
    EMI, RFI, EMC Must meet all applicable requirements in
    IEC/EN 61326-1
    Absorption/Corrosion Per Fluke SOP 39.1
    Temperature Coefficients Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC


    Made in China
