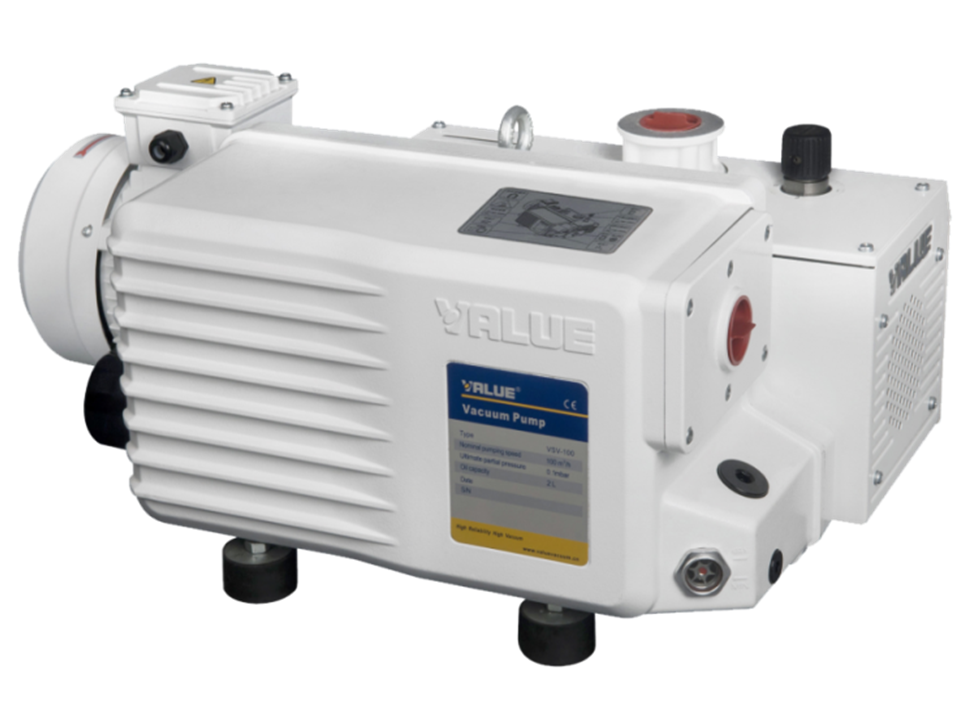

VALUE VSV-100 Single-Stage Vacuum Pump 100 m³/h 400V 3PH

Name: VALUE VSV-100 Single-Stage Vacuum Pump 100 m³/h 400V 3PH
Brand: VALUE
SKU: VSV-100
Price: 8500.00 MYR
Availability: InStock

SKU: VSV-100

RM8,500.00

Techno Tools & Equipment's provide same day delivery

Product Overview

The VALUE VSV-100 Single-Stage Vacuum Pump is designed to generate vacuum in closed systems for industrial, laboratory and commercial applications. With a displacement speed of 100 m³/h at 50 Hz, this oil-sealed rotary vane vacuum pump is suitable for vacuum packaging, laboratory analysis, mechanical engineering, medical facilities, vacuum forming, printing and other industrial processes.

The VSV-100 incorporates a gas ballast system that helps remove moisture and reduce the risk of oil contamination. An inlet non-return valve helps prevent air from entering the vacuum system and unwanted oil backflow after shutdown. The integrated oil mist filter reduces oil mist emissions, while the closed lubrication system returns collected oil to the pump.

With its high pumping capacity and practical oil-management features, the VSV-100 provides a solution for demanding vacuum applications requiring dependable operation.

Key Features

100 m³/h Pumping Capacity: Suitable for industrial and laboratory vacuum applications requiring high throughput.
Single-Stage Rotary Vane Design: Provides vacuum generation for general-purpose industrial processes.
Gas Ballast Function: Helps remove moisture and reduce oil contamination during suitable operating conditions.
Inlet Non-Return Valve: Helps prevent air ingress and unwanted oil backflow after shutdown.
Integrated Oil Mist Filter: Reduces oil mist emissions during pump operation.
Closed Lubrication System: Returns collected oil from the filter to the pump by gravity.
Three-Phase Electrical Supply: Designed for compatible 400 V, 50 Hz three-phase installations.
Industrial Versatility: Suitable for vacuum packaging, laboratory analysis, mechanical engineering, vacuum forming, printing and other industrial applications.

Technical Specifications

Specification	VALUE VSV-100
Brand	VALUE
Model	VSV-100
Pump Type	Single-stage oil-sealed rotary vane vacuum pump
Displacement Speed at 50 Hz	100 m³/h
Displacement Speed	1,667 L/min / 58.9 CFM
Ultimate Pressure Without Gas Ballast	≤ 0.1 mbar
Ultimate Pressure with Gas Ballast I	≤ 0.5 mbar
Ultimate Pressure with Gas Ballast II	≤ 1.5 mbar
Water Vapour Tolerance with Gas Ballast I	15 mbar
Water Vapour Tolerance with Gas Ballast II	30 mbar
Power Supply	400 V / 50 Hz / 3-phase
Motor Power	2.2 kW
Motor Speed	1,440 rpm
Inlet Connection	G 1 1/4"
Exhaust Connection	G 1 1/4"
Oil Type	Mineral vacuum pump oil
Oil Capacity	2.0 L (English product page)
Operating Ambient Temperature	10–40°C
Noise Level	62 dB (English product page)
Dimensions (L × W × H)	703 × 406 × 286 mm
Net Weight	72 kg

Specifications are based primarily on VALUE's official English VSV-100 product page. The official Polish page lists different values for ultimate pressure, oil capacity and noise level. Confirm the exact specification for the supplied unit before publishing.

Package Contents

The official Polish product page identifies wooden-pallet packaging. The complete accessory inventory is not confirmed.

VALUE VSV-100 single-stage vacuum pump
Wooden pallet packaging
Vacuum pump oil: confirm whether included
Power cable and electrical accessories: confirm with supplier
Connection accessories: confirm with supplier
Operating and safety instructions: confirm with supplier

Only list accessories as included if they are confirmed in the actual shipment.

Warranty Term

Warranty: To be confirmed with the authorised distributor.

Please verify the warranty period, coverage and exclusions with your supplier before publishing. No specific warranty duration is stated because it has not been confirmed in the official product information.

Why Choose VALUE?

VALUE develops vacuum equipment and HVACR service tools for professional applications. The VSV-100 combines a 100 m³/h pumping capacity with gas ballast functionality, integrated oil mist filtration and an inlet non-return valve.

Its closed lubrication system helps return collected oil to the pump, while the oil mist filter reduces emissions during operation. The three-phase electrical configuration supports integration into compatible industrial installations.

For businesses requiring high-volume vacuum generation for packaging, laboratory work, mechanical engineering or vacuum forming, the VALUE VSV-100 offers a practical combination of pumping capacity and essential oil-management features.
