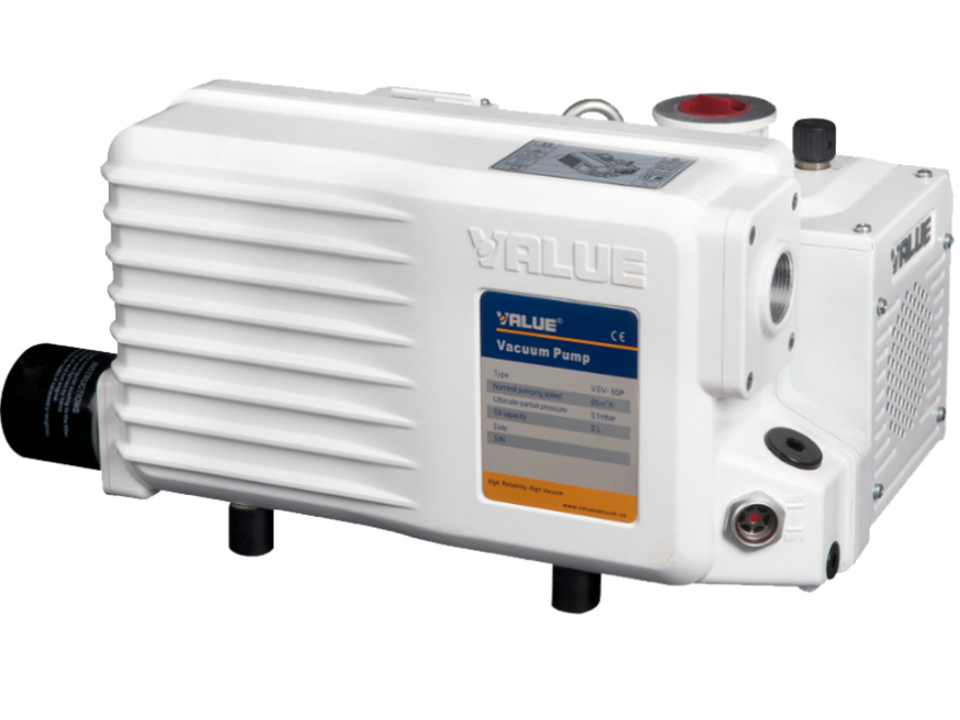

VALUE VSV-65 Single-Stage Vacuum Pump 65 m³/h 400V 3PH

Name: VALUE VSV-65 Single-Stage Vacuum Pump 65 m³/h 400V 3PH
Brand: VALUE
SKU: VSV-65
Price: 6500.00 MYR
Availability: InStock

SKU: VSV-65

RM6,500.00

Techno Tools & Equipment's provide same day delivery

Product Overview

The VALUE VSV-65 Single-Stage Vacuum Pump is designed to generate vacuum in closed systems for industrial, laboratory and commercial applications. With an official displacement speed of 65 m³/h at 50 Hz, it is suitable for vacuum packaging, laboratory analysis, mechanical engineering, vacuum forming, printing and other industrial processes.

The VSV-65 features a gas ballast system that helps remove moisture and reduce the risk of oil contamination. Its inlet non-return valve helps prevent air from entering the vacuum system and unwanted oil backflow after shutdown. An integrated oil mist filter reduces oil mist emissions, while the closed lubrication system returns collected oil to the pump.

Designed for professional use, the VSV-65 combines high pumping capacity with practical oil-management features for dependable vacuum generation.

Key Features

65 m³/h Pumping Capacity: Suitable for demanding industrial and laboratory vacuum applications.
Single-Stage Rotary Vane Design: Provides vacuum generation for a wide range of general-purpose processes.
Gas Ballast Function: Helps remove moisture and reduce oil contamination during suitable operating conditions.
Non-Return Valve: Helps prevent air from entering the system and unwanted oil backflow after shutdown.
Integrated Oil Mist Filter: Reduces oil mist emissions during pump operation.
Closed Lubrication System: Returns collected oil from the filter to the pump by gravity.
Three-Phase Power Supply: Designed for compatible 400 V, 50 Hz three-phase installations.
Industrial Versatility: Suitable for vacuum packaging, laboratory analysis, mechanical engineering, vacuum forming, printing and other industrial applications.

Technical Specifications

Specification	VALUE VSV-65
Brand	VALUE
Model	VSV-65
Pump Type	Single-stage oil-sealed rotary vane vacuum pump
Displacement Speed at 50 Hz	65 m³/h
Displacement Speed	1,083 L/min / 38.1 CFM
Ultimate Pressure Without Gas Ballast	≤ 0.1 mbar
Ultimate Pressure with Gas Ballast I	≤ 0.5 mbar
Ultimate Pressure with Gas Ballast II	≤ 1.5 mbar
Water Vapour Tolerance with Gas Ballast I	15 mbar
Water Vapour Tolerance with Gas Ballast II	30 mbar
Power Supply	400 V / 50 Hz / 3-phase
Motor Power	1.5 kW
Motor Speed	1,440 rpm
Inlet Connection	G 1 1/4"
Exhaust Connection	G 1 1/4"
Oil Type	Mineral vacuum pump oil
Oil Capacity	2.0 L (English page)
Operating Ambient Temperature	10–40°C
Noise Level	≤61 dB (English page)
Dimensions (L × W × H)	555 × 311 × 268 mm (English page)
Net Weight	42.5 kg
Packaging	Confirm with supplier

The specifications above follow VALUE's official English product page. The Polish product page differs on oil capacity, noise level and dimensions. Confirm the exact specifications for your supplied unit before publishing.

Package Contents

The official English product page does not confirm a complete package inventory. Please verify the shipment with your distributor before listing accessories as included.

VALUE VSV-65 single-stage vacuum pump
Packaging materials: confirm with supplier
Vacuum pump oil: confirm whether included
Power cable and electrical accessories: confirm with supplier
Connection accessories: confirm with supplier
Operating and safety instructions: confirm with supplier

Only list accessories as included if they are confirmed in the actual shipment.

Warranty Term

Warranty: To be confirmed with the authorised distributor.

Please verify the warranty duration, coverage and exclusions with your supplier before publishing. No specific warranty period is stated because it has not been confirmed in the official product information.

Why Choose VALUE?

VALUE develops vacuum equipment and HVACR service tools for professional and industrial applications. The VSV-65 combines a 65 m³/h pumping capacity with gas ballast functionality, integrated oil mist filtration and a non-return valve.

Its closed lubrication system helps return collected oil to the pump, while the oil mist filter reduces emissions during operation. The three-phase electrical configuration makes it suitable for compatible industrial installations.

For businesses requiring high pumping capacity for vacuum packaging, laboratory work, mechanical engineering or vacuum forming, the VALUE VSV-65 offers a practical combination of pumping performance and essential oil-management features.
