VALUE VSV-160 Single-Stage Vacuum Pump 160 m³/h 400V 3PH
Couldn't load pickup availability
Product Overview

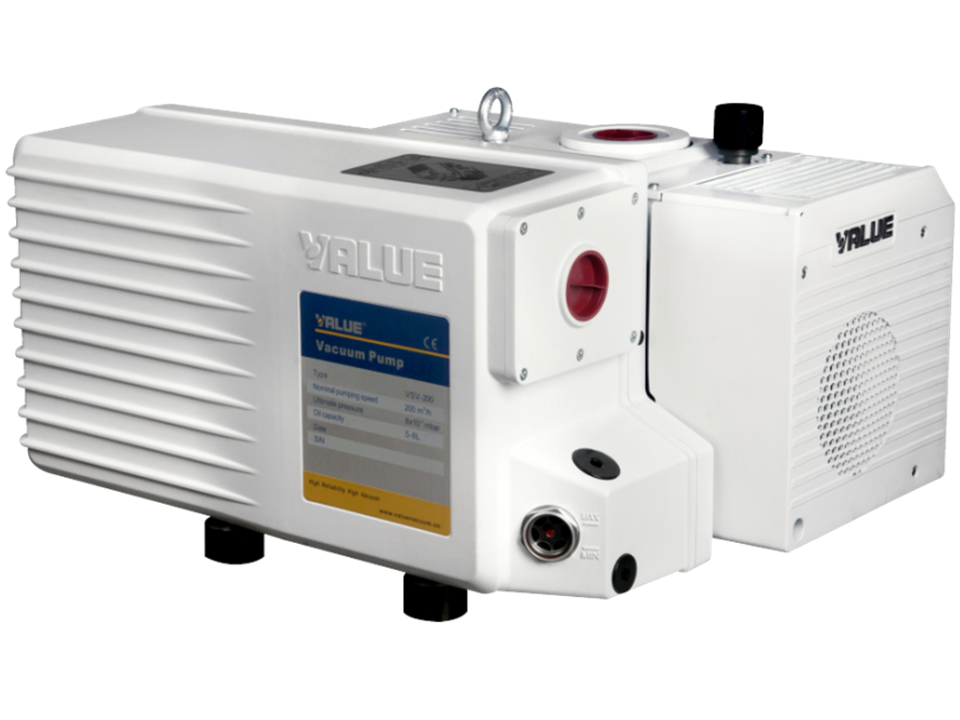

The VALUE VSV-160 Single-Stage Vacuum Pump is designed to generate vacuum in closed systems for demanding industrial, laboratory and commercial applications. With a displacement speed of 160 m³/h at 50 Hz, this oil-sealed rotary vane vacuum pump is suitable for vacuum packaging, laboratory analysis, mechanical engineering, vacuum forming, printing, vulcanization and other industrial processes.
The VSV-160 features a gas ballast system that helps remove moisture and reduce the risk of oil contamination. Its inlet non-return valve helps prevent air from entering the vacuum system and unwanted oil backflow after shutdown. An integrated oil mist filter reduces oil mist emissions, while the closed lubrication system returns collected oil to the pump.
With its high pumping capacity and practical oil-management features, the VSV-160 is designed for professional applications requiring reliable vacuum generation.
Key Features
-
160 m³/h Pumping Capacity: Suitable for high-throughput industrial and laboratory vacuum applications.
-
Single-Stage Rotary Vane Design: Provides dependable vacuum generation for a wide range of industrial processes.
-
Gas Ballast Function: Helps remove moisture and reduce the risk of oil contamination during suitable operating conditions.
-
Inlet Non-Return Valve: Helps prevent air ingress and unwanted oil backflow after shutdown.
-
Integrated Oil Mist Filter: Reduces oil mist emissions during pump operation.
-
Closed Lubrication System: Returns collected oil from the oil mist filter to the pump by gravity.
-
Three-Phase Power Supply: Designed for compatible 400 V, 50 Hz three-phase installations.
-
Industrial Versatility: Suitable for vacuum packaging, laboratory analysis, mechanical engineering, medical facilities, vacuum forming, printing, woodworking and metallurgical applications.
Technical Specifications
| Specification | VALUE VSV-160 |
|---|---|
| Brand | VALUE |
| Model | VSV-160 |
| Pump Type | Single-stage oil-sealed rotary vane vacuum pump |
| Displacement Speed at 50 Hz | 160 m³/h |
| Displacement Speed | 2,667 L/min / 94.2 CFM |
| Ultimate Pressure Without Gas Ballast | ≤ 0.08 mbar |
| Ultimate Pressure with Gas Ballast I | ≤ 0.5 mbar |
| Ultimate Pressure with Gas Ballast II | ≤ 1.5 mbar |
| Water Vapour Tolerance with Gas Ballast I | 30 mbar |
| Water Vapour Tolerance with Gas Ballast II | 50 mbar |
| Power Supply | 400 V / 50 Hz / 3-phase |
| Motor Power | 4 kW (English page; verify) |
| Motor Speed | 1,440 rpm |
| Inlet Connection | G 2" |
| Exhaust Connection | G 2" |
| Oil Type | Mineral vacuum pump oil |
| Oil Viscosity | 68 mm²/s |
| Oil Capacity | 5–7 L |
| Operating Ambient Temperature | 10–40°C |
| Noise Level | ≤70 dB (English page; verify) |
| Dimensions (L × W × H) | 930 × 533 × 436 mm (English page; verify) |
| Net Weight | 132 kg |
| Packaging | Wooden pallet |
Technical verification note: The official English and Polish product pages agree on the 160 m³/h capacity, 400 V supply, 1,440 rpm motor speed, G 2" connections, oil capacity and 132 kg weight. However, they differ on motor power, noise level and dimensions. Confirm these specifications for the exact supplied unit before publishing.
Package Contents
The official Polish product page identifies wooden-pallet packaging. The complete accessory inventory is not confirmed.
-
VALUE VSV-160 single-stage vacuum pump
-
Wooden pallet packaging
-
Vacuum pump oil: confirm whether included
-
Power cable and electrical accessories: confirm with supplier
-
Connection accessories: confirm with supplier
-
Operating and safety instructions: confirm with supplier
Only list accessories as included if they are confirmed in the actual shipment.
Warranty Term
Warranty: To be confirmed with the authorised distributor.
Please verify the applicable warranty period, coverage and exclusions with your supplier before publishing. No specific warranty duration is stated because it has not been confirmed in the official product information.
Why Choose VALUE?
VALUE develops vacuum equipment and HVACR service tools for professional and industrial applications. The VSV-160 combines a 160 m³/h pumping capacity with gas ballast functionality, integrated oil mist filtration and an inlet non-return valve.
Its closed lubrication system helps return collected oil to the pump, while the oil mist filter reduces emissions during operation. The three-phase electrical configuration supports integration into compatible industrial installations.
For businesses requiring high-volume vacuum generation for packaging, laboratory work, mechanical engineering, vacuum forming or other industrial processes, the VALUE VSV-160 offers a practical combination of pumping capacity and essential oil-management features.
