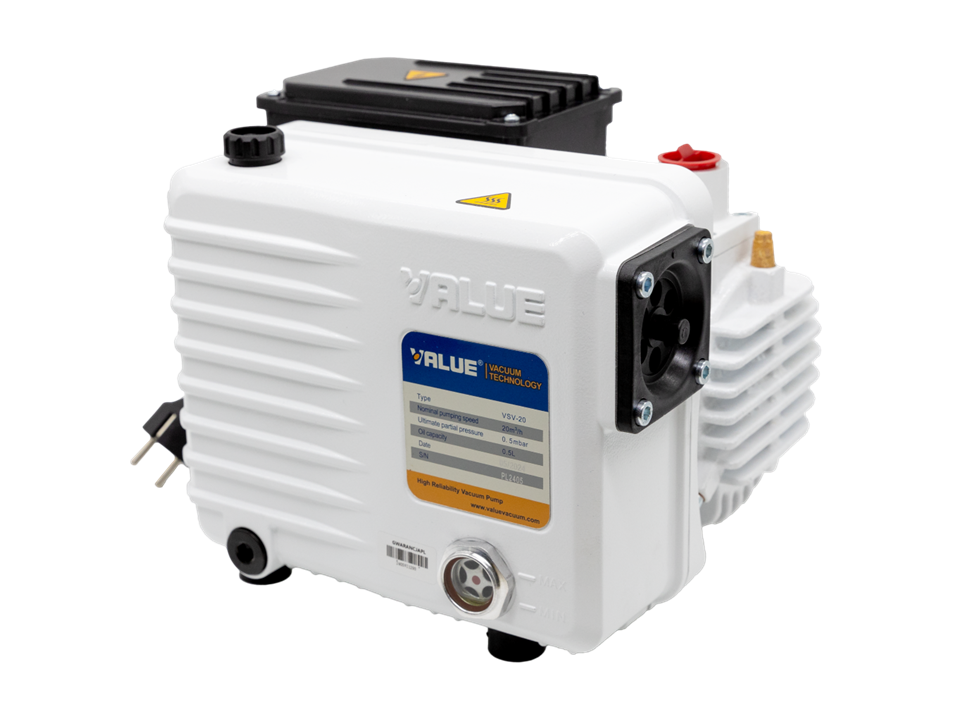

VALUE VSV-20 Single-Stage Vacuum Pump 20m³/h 50Hz 1PH

Name: VALUE VSV-20 Single-Stage Vacuum Pump 20m³/h 50Hz 1PH
Brand: VALUE
SKU: VSV-20
Price: 2500.00 MYR
Availability: InStock

SKU: VSV-20

RM2,500.00

Techno Tools & Equipment's provide same day delivery

Product Overview

The VALUE VSV-20 Single-Stage Vacuum Pump is designed to generate vacuum in closed systems for laboratory, industrial and commercial applications. With a displacement speed of 20 m³/h at 50 Hz, it provides practical vacuum performance for processes such as vacuum packaging, laboratory analysis, vacuum forming and mechanical engineering.

The VSV-20 features a gas ballast system to help remove moisture and reduce the risk of oil contamination. A non-return valve helps prevent air from entering the vacuum system and unwanted oil backflow after shutdown. Its integrated oil mist filter reduces oil mist emissions during operation, while the closed lubrication system returns collected oil to the pump.

Key Features

20 m³/h Pumping Capacity: Suitable for a range of laboratory and industrial vacuum applications.
Single-Stage Design: Provides vacuum generation for general-purpose applications.
Gas Ballast Function: Helps remove moisture and reduce oil contamination during suitable operating conditions.
Non-Return Valve: Helps prevent air from entering the vacuum system and unwanted oil backflow after shutdown.
Integrated Oil Mist Filter: Reduces oil mist released during pump operation.
Closed Lubrication System: Returns collected oil from the oil mist filter to the pump by gravity.
Single-Phase Power Supply: Designed for 230 V, 50 Hz electrical installations.
Compact Construction: Measures 317 × 249 × 219 mm, making it suitable for installations where space is limited.

Technical Specifications

Specification	VALUE VSV-20
Brand	VALUE
Model	VSV-20
Pump Type	Single-stage oil-sealed vacuum pump
Displacement Speed	20 m³/h
Displacement Speed	Approximately 333 L/min / 11.8 CFM
Ultimate Pressure with Gas Ballast I	≤ 0.5 mbar
Water Vapour Tolerance with Gas Ballast II	15 mbar
Power Supply	230 V / 50 Hz
Motor Power	0.75 kW
Motor Speed	3,000 rpm
Inlet Connection	G 3/4"
Exhaust Connection	G 3/4"
Oil Capacity	0.5 L
Operating Ambient Temperature	10–40°C
Noise Level	≤ 65 dB
Dimensions (L × W × H)	317 × 249 × 219 mm
Net Weight	19.5 kg

Specifications above follow the official English VALUE VSV-20 product page. The manufacturer notes that a three-phase version can also be ordered; confirm the supplied electrical configuration before purchase.

Package Contents

The official English product page does not confirm a complete package inventory. Please verify the actual shipment with your supplier before listing accessories as included.

VALUE VSV-20 single-stage vacuum pump
Packaging and included accessories: confirm with supplier
Vacuum pump oil: confirm whether supplied
Power cable and plug: confirm with supplier
Operating and safety instructions: confirm with supplier

Warranty Term

Warranty: To be confirmed with the authorised distributor.

Please confirm the warranty period, coverage and exclusions with your supplier before publishing. No specific warranty duration is stated because it has not been verified in the official product information.

Why Choose VALUE?

VALUE develops vacuum equipment and HVACR service tools for professional applications. The VSV-20 combines a 20 m³/h displacement speed with a gas ballast function, an integrated oil mist filter and a non-return valve.

Its closed lubrication system helps return collected oil to the pump, while the compact construction supports installation in a variety of working environments. With applications ranging from vacuum packaging and laboratory analysis to mechanical engineering and vacuum forming, the VSV-20 offers a practical solution for general-purpose vacuum generation.

Choose the VALUE VSV-20 for a compact single-stage vacuum pump featuring essential oil-management and vacuum-system protection functions.
